MAX4389/MAX4390/. Ultra-Small, Low-Cost, 85MHz Op Amps with. MAX4392–MAX4396. Rail-to-Rail Outputs and Disable
Model Line for this Datasheet
Text Version of Document

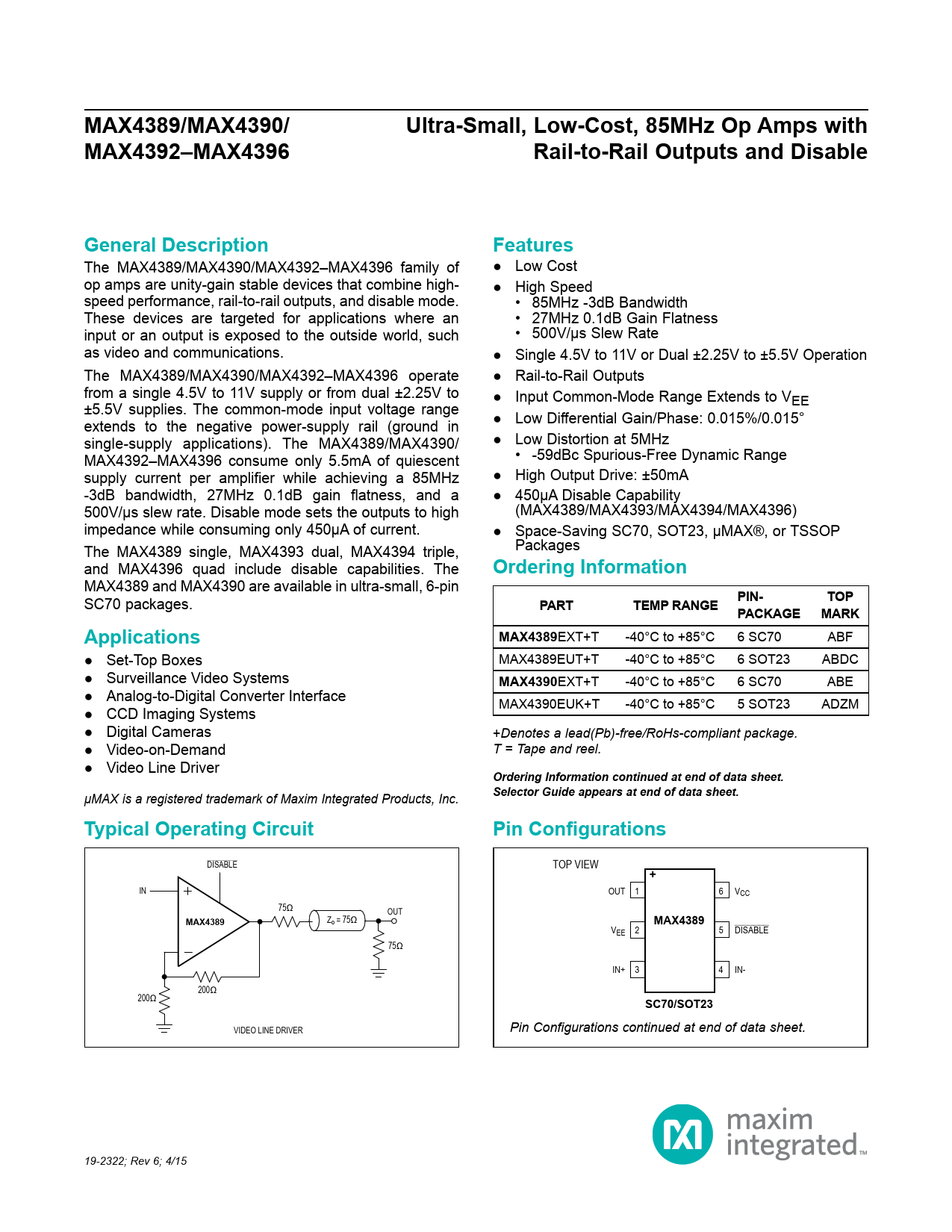

MAX4389/MAX4390/ Ultra-Small, Low-Cost, 85MHz Op Amps with MAX4392–MAX4396 Rail-to-Rail Outputs and Disable General Description Features
The MAX4389/MAX4390/MAX4392–MAX4396 family of ● Low Cost op amps are unity-gain stable devices that combine high- ● High Speed speed performance, rail-to-rail outputs, and disable mode. • 85MHz -3dB Bandwidth These devices are targeted for applications where an • 27MHz 0.1dB Gain Flatness input or an output is exposed to the outside world, such • 500V/μs Slew Rate as video and communications. ● Single 4.5V to 11V or Dual ±2.25V to ±5.5V Operation The MAX4389/MAX4390/MAX4392–MAX4396 operate ● Rail-to-Rail Outputs from a single 4.5V to 11V supply or from dual ±2.25V to ● Input Common-Mode Range Extends to V ±5.5V supplies. The common-mode input voltage range EE extends to the negative power-supply rail (ground in ● Low Differential Gain/Phase: 0.015%/0.015° single-supply applications). The MAX4389/MAX4390/ ● Low Distortion at 5MHz MAX4392–MAX4396 consume only 5.5mA of quiescent • -59dBc Spurious-Free Dynamic Range supply current per amplifier while achieving a 85MHz ● High Output Drive: ±50mA -3dB bandwidth, 27MHz 0.1dB gain flatness, and a ● 450μA Disable Capability 500V/μs slew rate. Disable mode sets the outputs to high (MAX4389/MAX4393/MAX4394/MAX4396) impedance while consuming only 450μA of current. ● Space-Saving SC70, SOT23, μMAX®, or TSSOP The MAX4389 single, MAX4393 dual, MAX4394 triple, Packages and MAX4396 quad include disable capabilities. The
Ordering Information
MAX4389 and MAX4390 are available in ultra-small, 6-pin SC70 packages.
PART TEMP RANGE PIN- TOP PACKAGE MARK Applications MAX4389
EXT+T -40°C to +85°C 6 SC70 ABF ● Set-Top Boxes MAX4389EUT+T -40°C to +85°C 6 SOT23 ABDC ● Surveillance Video Systems
MAX4390
EXT+T -40°C to +85°C 6 SC70 ABE ● Analog-to-Digital Converter Interface ● CCD Imaging Systems MAX4390EUK+T -40°C to +85°C 5 SOT23 ADZM ● Digital Cameras +Denotes a lead(Pb)-free/RoHs-compliant package. ● Video-on-Demand T = Tape and reel. ● Video Line Driver
Ordering Information continued at end of data sheet. Selector Guide appears at end of data sheet.
µMAX is a registered trademark of Maxim Integrated Products, Inc.
Typical Operating Circuit Pin Configurations
DISABLE TOP VIEW
+
IN OUT 1 6 VCC 75Ω OUT Z
MAX4389
o = 75Ω
MAX4389
VEE 2 5 DISABLE 75Ω IN+ 3 4 IN- 200Ω 200Ω
SC70/SOT23
VIDEO LINE DRIVER Pin Configurations continued at end of data sheet. 19-2322; Rev 6; 4/15
