Preliminary Datasheet QPC1251Q (Qorvo)
| Manufacturer | Qorvo |
| Description | Broadband High Linearity e-Call Antenna Routing Switch |
| Pages / Page | 17 / 1 — Product Status. Preview:. PRELIMINARY. QPC1251Q. BROADBAND HIGH LINEARITY … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
Product Status. Preview:. PRELIMINARY. QPC1251Q. BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING SWITCH. NCED. Product Overview
Model Line for this Datasheet
Text Version of Document
Product Status Preview:
This product has been announced but is not yet in full production. Specifications are subject to change based on final AEC-Q product qualification. Samples may or may not be available. Please contact your Qorvo representative for the latest product status and performance data.

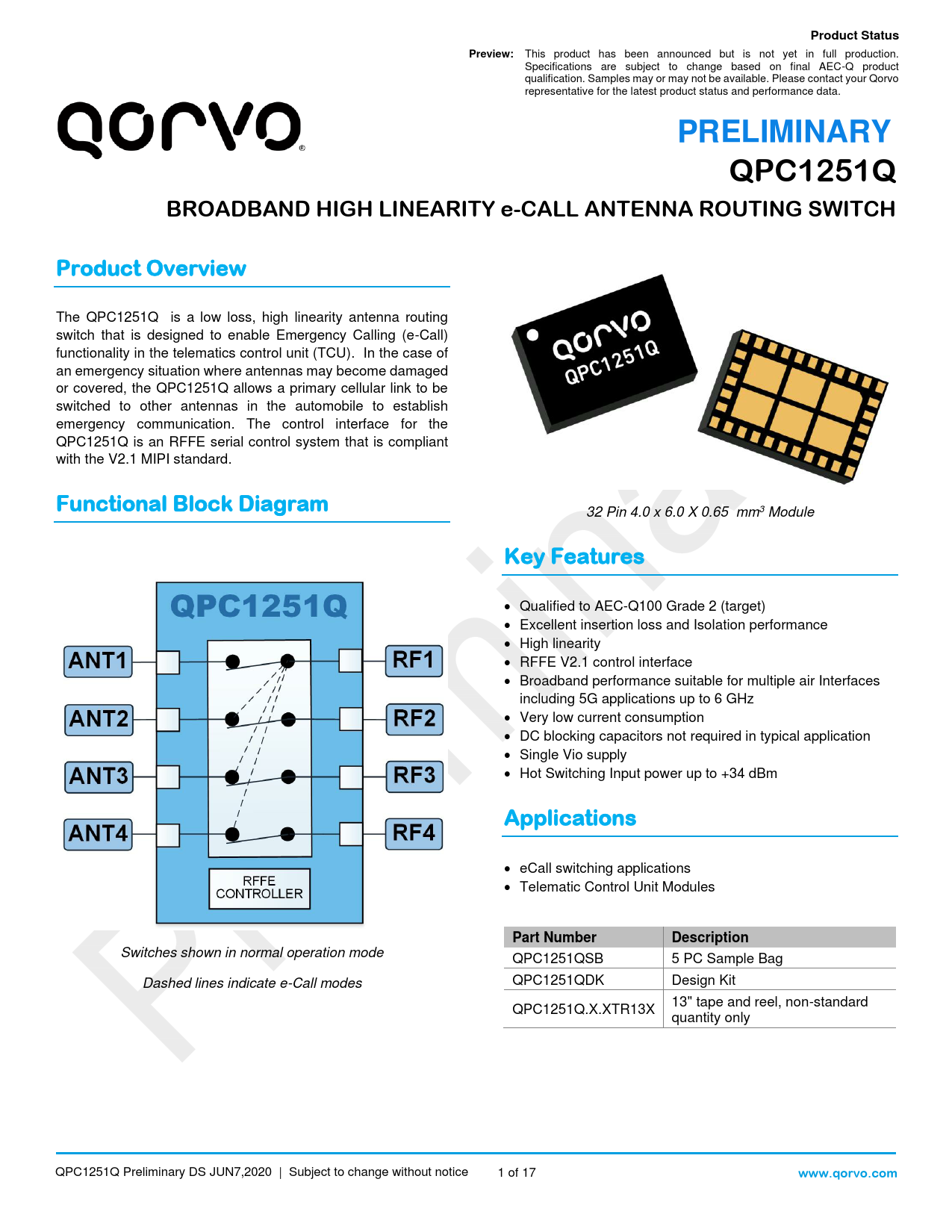

PRELIMINARY QPC1251Q BROADBAND HIGH LINEARITY e-CALL ANTENNA ROUTING SWITCH NCED Product Overview
The QPC1251Q is a low loss, high linearity antenna routing switch that is designed to enable Emergency Calling (e-Call) functionality in the telematics control unit (TCU). In the case of an emergency situation where antennas may become damaged or covered, the QPC1251Q allows a primary cellular link to be switched to other antennas in the automobile to establish emergency communication. The control interface for the QPC1251Q is an RFFE serial control system that is compliant with the V2.1 MIPI standard.
Functional Block Diagram
32 Pin 4.0 x 6.0 X 0.65 mm3 Module
Key Features
• Qualified to AEC-Q100 Grade 2 (target) • Excellent insertion loss and Isolation performance • High linearity • RFFE V2.1 control interface • Broadband performance suitable for multiple air Interfaces including 5G applications up to 6 GHz • Very low current consumption • DC blocking capacitors not required in typical application • Single Vio supply • Hot Switching Input power up to +34 dBm
Applications
• eCall switching applications • Telematic Control Unit Modules
Part Number Description
Switches shown in normal operation mode QPC1251QSB 5 PC Sample Bag Dashed lines indicate e-Call modes QPC1251QDK Design Kit 13" tape and reel, non-standard QPC1251Q.X.XTR13X quantity only QPC1251Q Preliminary DS JUN7,2020 | Subject to change without notice 1 of 17
www.qorvo.com
