Datasheet PUSB3BB2DF (Nexperia) - 9
| Manufacturer | Nexperia |
| Description | Extremely low clamping low capacitance ESD protection |
| Pages / Page | 12 / 9 — Nexperia. PESD5V0C2BDF. Extremely low clamping low capacitance ESD … |
| Revision | 23072020 |
| File Format / Size | PDF / 276 Kb |
| Document Language | English |
Nexperia. PESD5V0C2BDF. Extremely low clamping low capacitance ESD protection. 12. Soldering
Model Line for this Datasheet
Text Version of Document

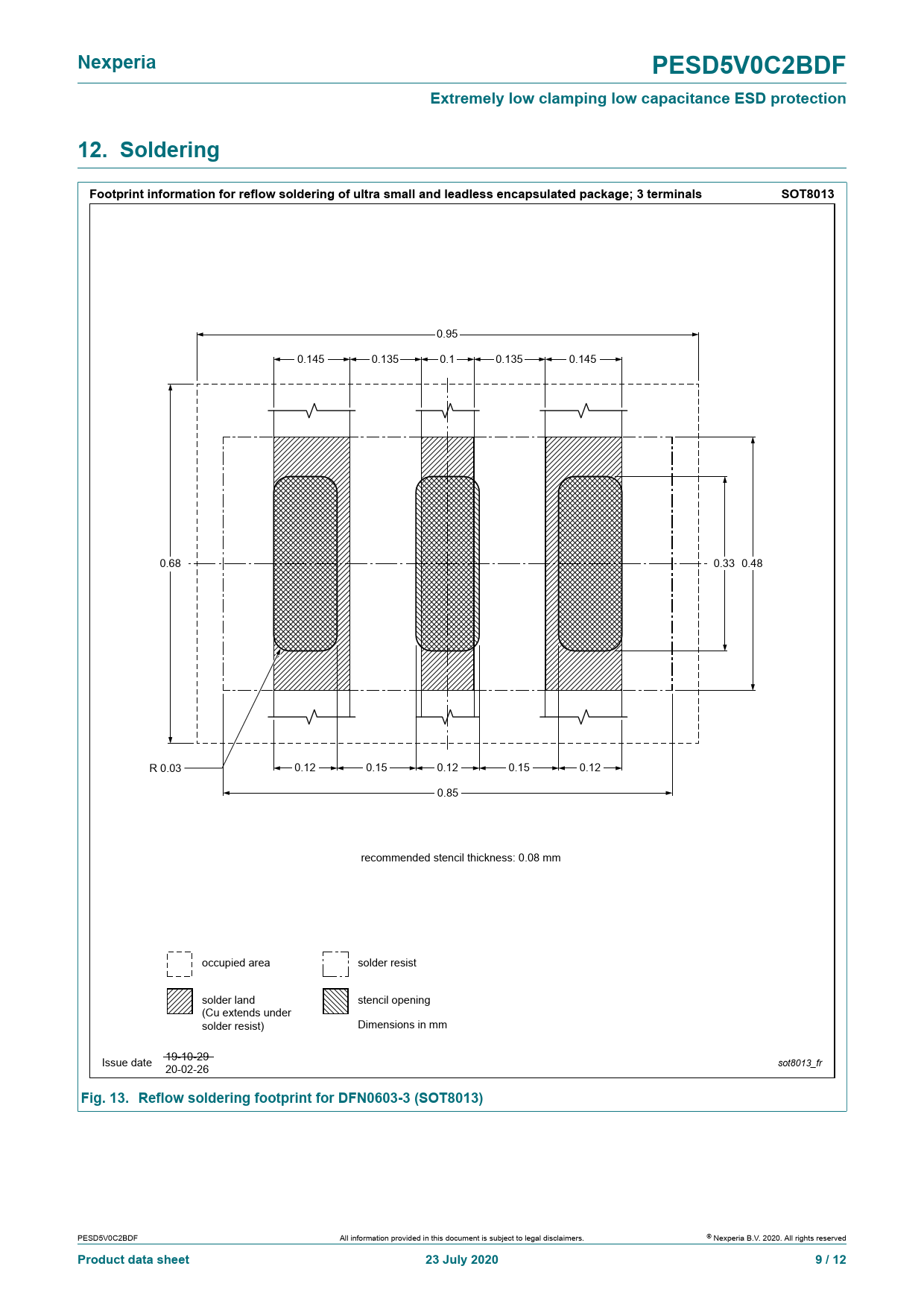

Nexperia PESD5V0C2BDF Extremely low clamping low capacitance ESD protection 12. Soldering Footprint information for reflow soldering of ultra smal and leadless encapsulated package; 3 terminals SOT8013
0.95 0.145 0.135 0.1 0.135 0.145 0.68 0.33 0.48 R 0.03 0.12 0.15 0.12 0.15 0.12 0.85 recommended stencil thickness: 0.08 mm occupied area solder resist solder land stencil opening (Cu extends under solder resist) Dimensions in mm Issue date 19-10-29 sot8013_fr 20-02-26
Fig. 13. Reflow soldering footprint for DFN0603-3 (SOT8013)
