TDA7294. Typical characteristics. Figure 5. Output power vs. supply voltage (RI = 8 Ω)
Model Line for this Datasheet
Text Version of Document
TDA7294 Typical characteristics 8 Typical characteristics
Application circuit of fig 1 unless otherwise specified.

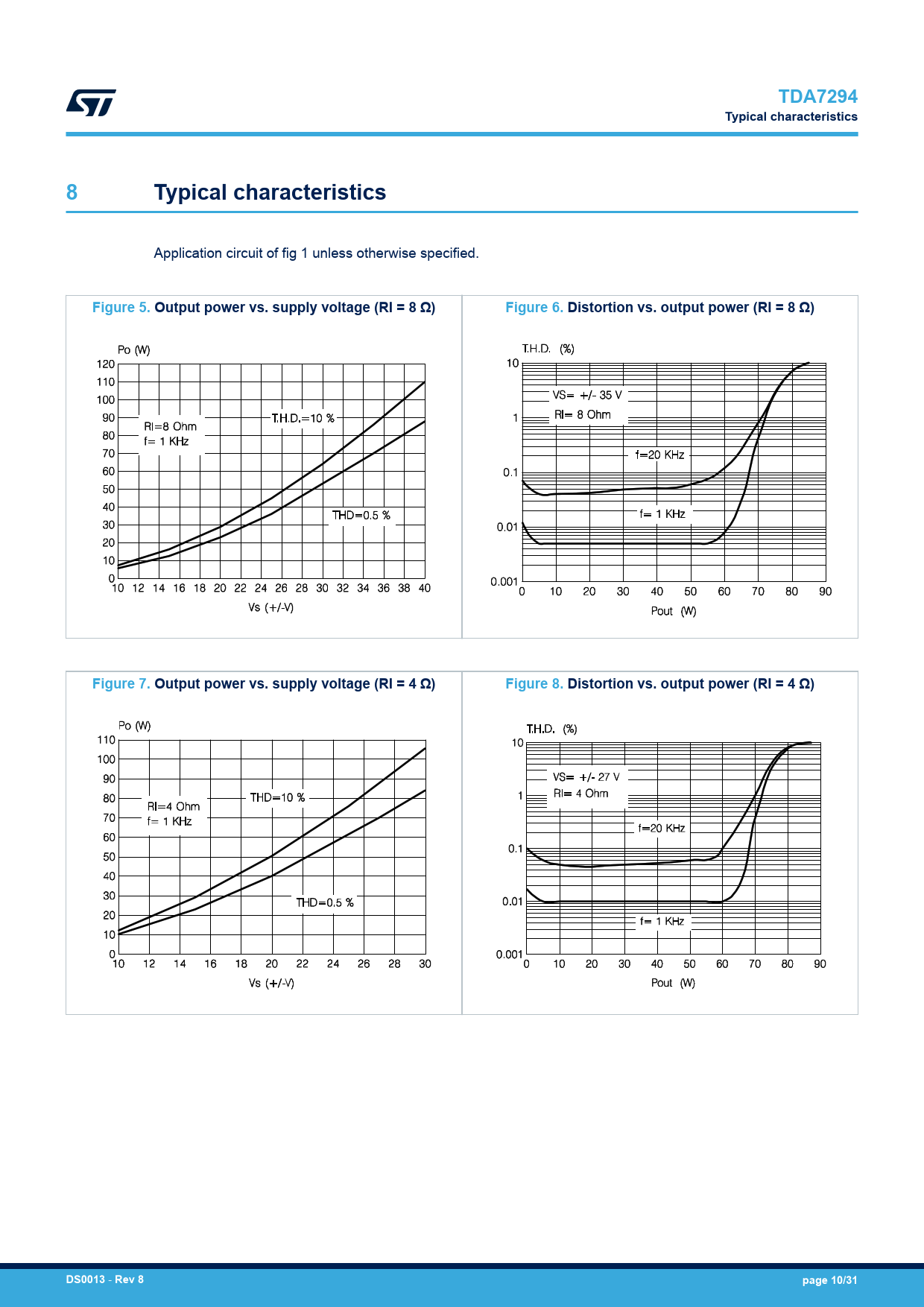

Figure 5. Output power vs. supply voltage (RI = 8 Ω) Figure 6. Distortion vs. output power (RI = 8 Ω) Figure 7. Output power vs. supply voltage (RI = 4 Ω) Figure 8. Distortion vs. output power (RI = 4 Ω) DS0013
-
Rev 8 page 10/31
