Datasheet LT3960 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | I2C to CAN-Physical Transceiver |
| Pages / Page | 20 / 8 — PIN FUNCTIONS CANSDAL (Pin 1):. EN/MODE (Pin 7):. CANSDAH (Pin 2):. VCC … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |
PIN FUNCTIONS CANSDAL (Pin 1):. EN/MODE (Pin 7):. CANSDAH (Pin 2):. VCC (Pin 8):. CANSCLH (Pin 4):. CANSCLL (Pin 5):. SCL (Pin 9):
Model Line for this Datasheet
Text Version of Document

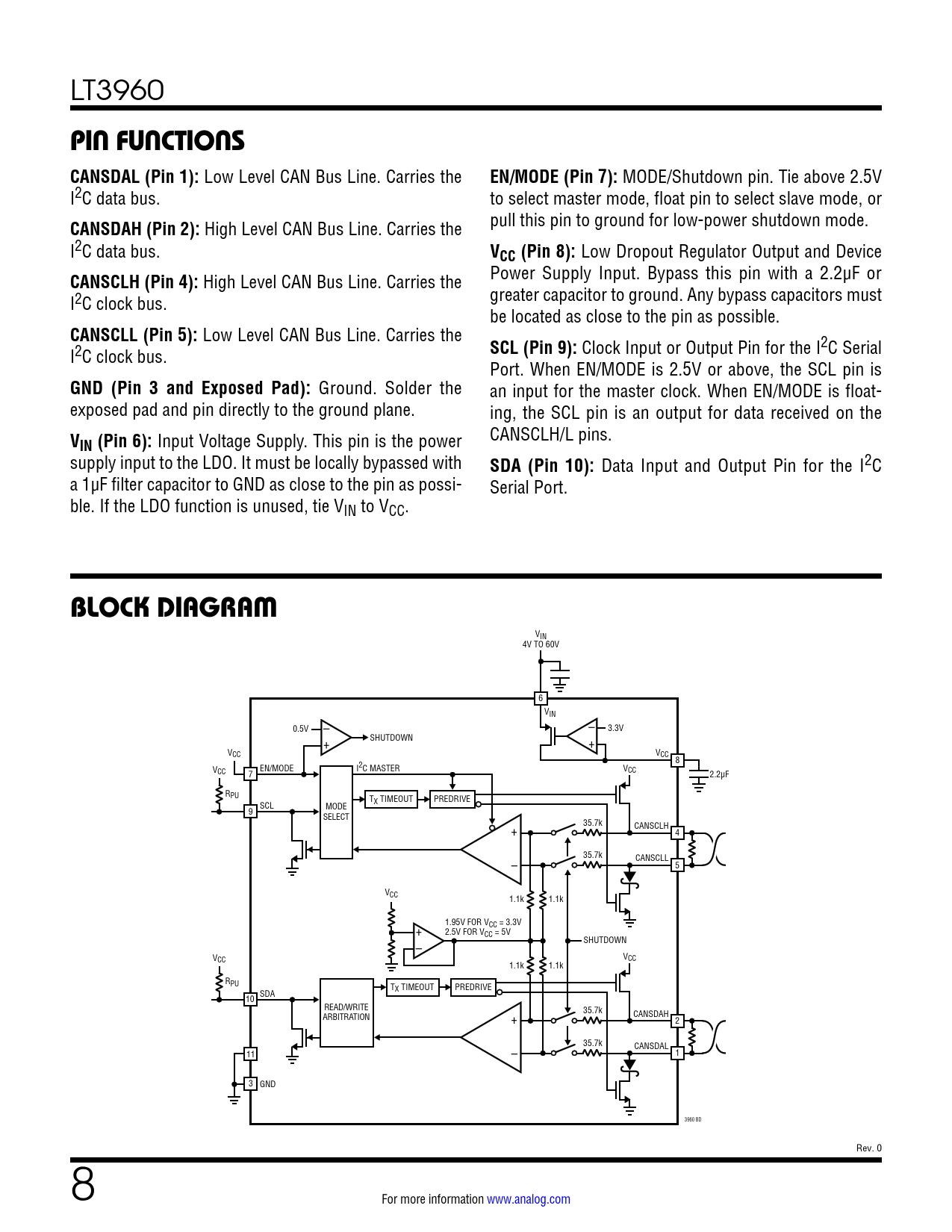

LT3960
PIN FUNCTIONS CANSDAL (Pin 1):
Low Level CAN Bus Line. Carries the
EN/MODE (Pin 7):
MODE/Shutdown pin. Tie above 2.5V I2C data bus. to select master mode, float pin to select slave mode, or
CANSDAH (Pin 2):
High Level CAN Bus Line. Carries the pull this pin to ground for low-power shutdown mode. I2C data bus.
VCC (Pin 8):
Low Dropout Regulator Output and Device
CANSCLH (Pin 4):
High Level CAN Bus Line. Carries the Power Supply Input. Bypass this pin with a 2.2µF or I2C clock bus. greater capacitor to ground. Any bypass capacitors must be located as close to the pin as possible.
CANSCLL (Pin 5):
Low Level CAN Bus Line. Carries the I2C clock bus.
SCL (Pin 9):
Clock Input or Output Pin for the I2C Serial Port. When EN/MODE is 2.5V or above, the SCL pin is
GND (Pin 3 and Exposed Pad):
Ground. Solder the an input for the master clock. When EN/MODE is float- exposed pad and pin directly to the ground plane. ing, the SCL pin is an output for data received on the
V
CANSCLH/L pins.
IN (Pin 6):
Input Voltage Supply. This pin is the power supply input to the LDO. It must be locally bypassed with
SDA (Pin 10):
Data Input and Output Pin for the I2C a 1µF filter capacitor to GND as close to the pin as possi- Serial Port. ble. If the LDO function is unused, tie VIN to VCC.
BLOCK DIAGRAM
VIN 4V TO 60V 6 V – IN – 0.5V 3.3V + SHUTDOWN + VCC VCC 8 V EN/MODE I2C MASTER VCC CC 7 2.2μF RPU TX TIMEOUT PREDRIVE SCL MODE 9 SELECT 35.7k CANSCLH + 4 35.7k CANSCLL – 5 VCC 1.1k 1.1k 1.95V FOR VCC = 3.3V + 2.5V FOR VCC = 5V SHUTDOWN – V V CC CC 1.1k 1.1k RPU TX TIMEOUT PREDRIVE SDA 10 READ/WRITE 35.7k CANSDAH ARBITRATION + 2 35.7k CANSDAL 11 – 1 3 GND 3960 BD Rev. 0 8 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Switching Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuits Timing Diagrams Operation Applications Information Typical Applications Typical Application Related Parts
