Datasheet LT8604 (Analog Devices) - 7
| Manufacturer | Analog Devices |
| Description | High Efficiency 42V/120mA Synchronous Buck |
| Pages / Page | 20 / 7 — TYPICAL PERFORMANCE CHARACTERISTICS. Switching Waveforms |
| File Format / Size | PDF / 2.8 Mb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. Switching Waveforms
Model Line for this Datasheet
Text Version of Document
LT8604

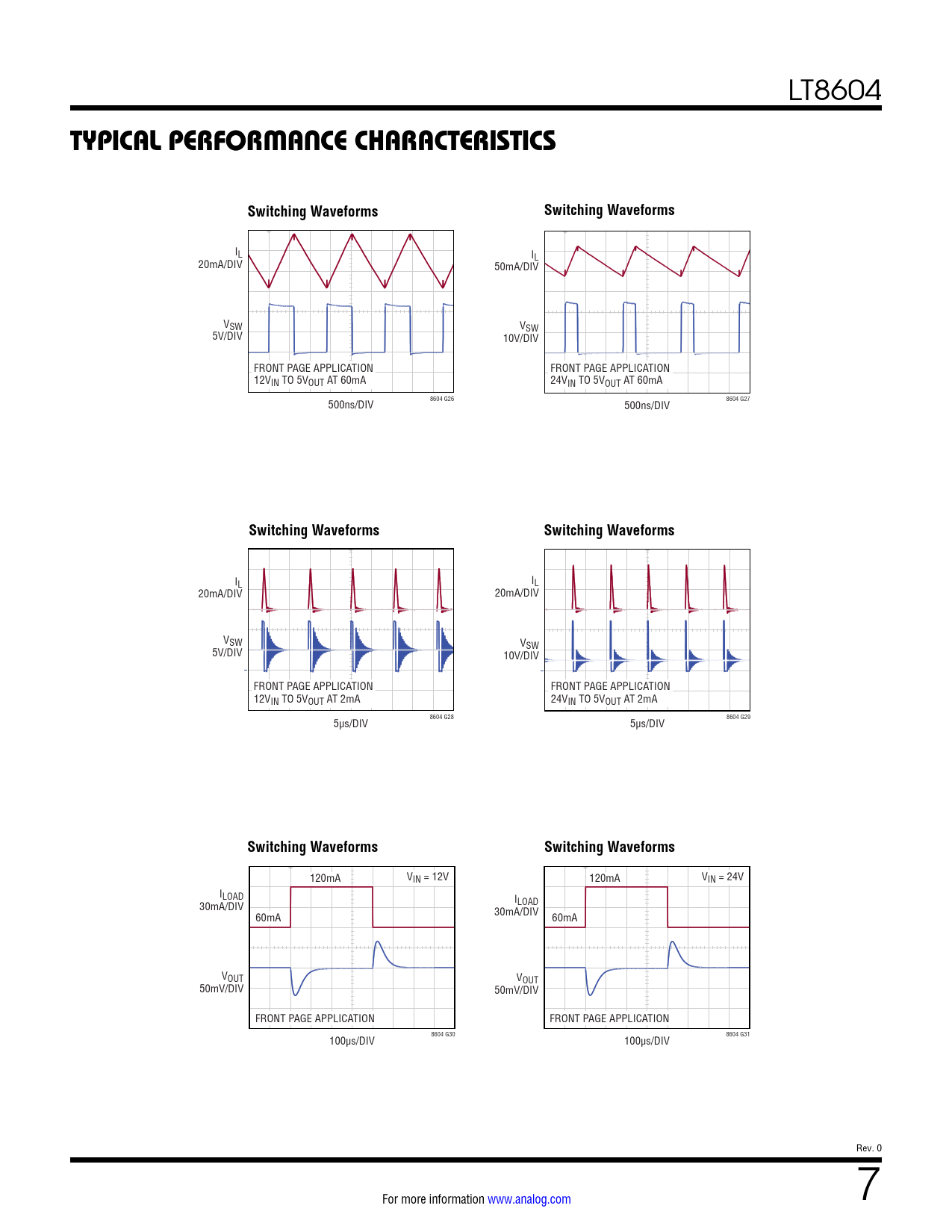

TYPICAL PERFORMANCE CHARACTERISTICS Switching Waveforms Switching Waveforms
IL I 20mA/DIV L 50mA/DIV VSW VSW 5V/DIV 10V/DIV FRONT PAGE APPLICATION FRONT PAGE APPLICATION 12VIN TO 5VOUT AT 60mA 24VIN TO 5VOUT AT 60mA 500ns/DIV 8604 G26 500ns/DIV 8604 G27
Switching Waveforms Switching Waveforms
IL IL 20mA/DIV 20mA/DIV VSW V 5V/DIV SW 10V/DIV FRONT PAGE APPLICATION FRONT PAGE APPLICATION 12VIN TO 5VOUT AT 2mA 24VIN TO 5VOUT AT 2mA 5µs/DIV 8604 G28 5µs/DIV 8604 G29
Switching Waveforms Switching Waveforms
120mA VIN = 12V 120mA VIN = 24V ILOAD I 30mA/DIV LOAD 60mA 30mA/DIV 60mA VOUT VOUT 50mV/DIV 50mV/DIV FRONT PAGE APPLICATION FRONT PAGE APPLICATION 100µs/DIV 8604 G30 100µs/DIV 8604 G31 Rev. 0 For more information www.analog.com 7 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
