| Description | 42V, 750mA Synchronous Step-Down Regulator with 2.5µA Quiescent Current |
| Pages / Page | 24 / 3 — ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE … |
| Revision | D |
| File Format / Size | PDF / 3.0 Mb |
| Document Language | English |
ORDER INFORMATION LEAD FREE FINISH. TAPE AND REEL. PART MARKING*. PACKAGE DESCRIPTION. TEMPERATURE RANGE. AUTOMOTIVE PRODUCTS**
Model Line for this Datasheet
- LT8607BEDC#TRMPBF LT8607BHDC#TRMPBF LT8607BIDC#TRMPBF LT8607EDC#TRMPBF LT8607EDC#TRPBF LT8607EDC#WTRMPBF LT8607EDC#WTRPBF LT8607EMSE#PBF LT8607EMSE#TRPBF LT8607EMSE#WPBF LT8607EMSE-5#PBF LT8607EMSE-5#TRPBF LT8607EMSE-5#WPBF LT8607EMSE-5#WTRPBF LT8607HDC#TRMPBF LT8607HDC#TRPBF LT8607HDC#WTRMPBF LT8607HDC#WTRPBF LT8607HMSE#PBF LT8607HMSE#TRPBF LT8607HMSE#WPBF LT8607HMSE#WTRPBF LT8607IDC#TRMPBF LT8607IDC#TRPBF LT8607IDC#WTRMPBF LT8607IDC#WTRPBF LT8607IMSE#PBF LT8607IMSE#TRPBF LT8607IMSE#WPBF LT8607IMSE#WTRPBF LT8607JDC#WTRMPBF LT8607JDC#WTRPBF LT8607JMSE#WPBF LT8607JMSE#WTRPBF LT8607JMSE-5#PBF LT8607JMSE-5#TRPBF LT8607JMSE-5#WPBF LT8607JMSE-5#WTRPBF
Text Version of Document
LT8607/LT8607B

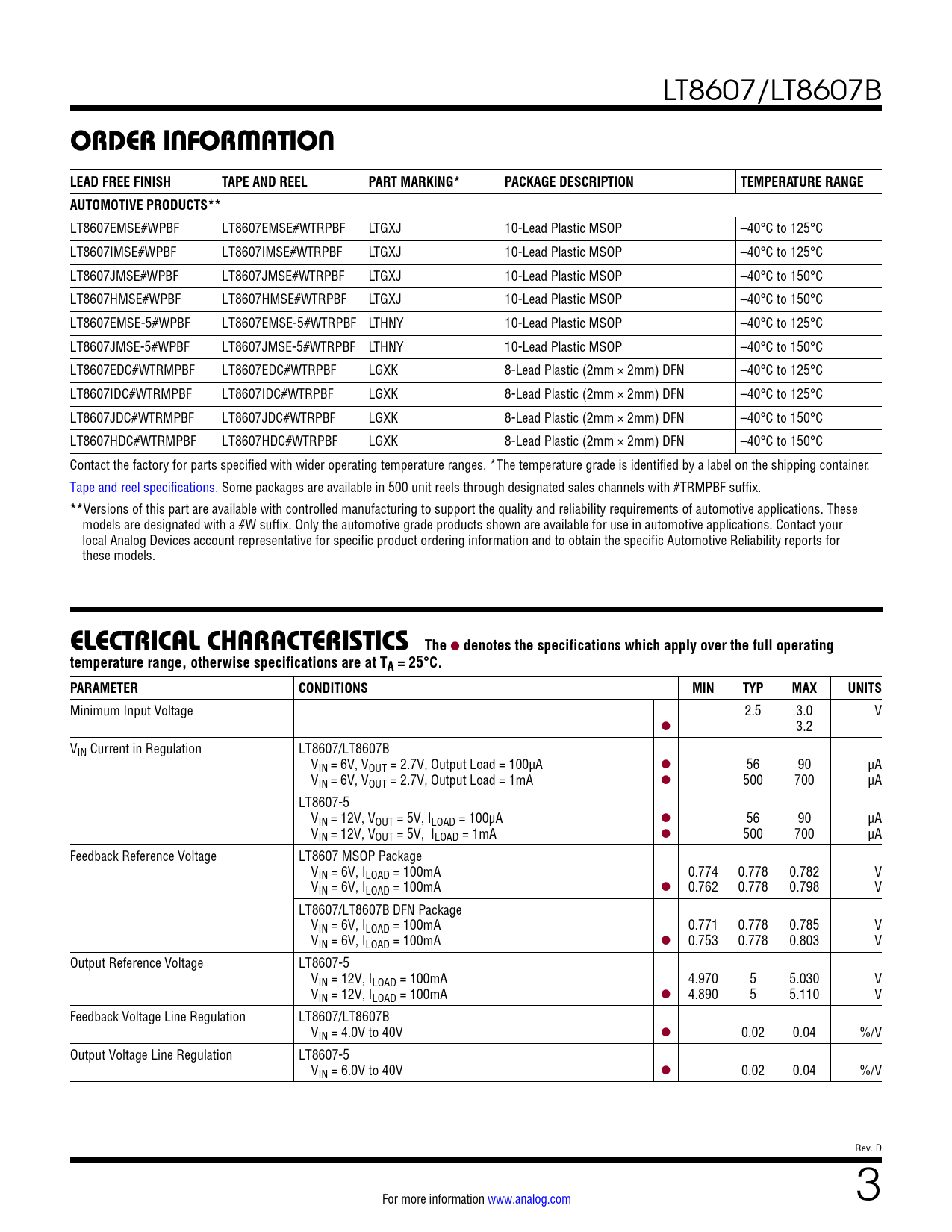

ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE AUTOMOTIVE PRODUCTS**
LT8607EMSE#WPBF LT8607EMSE#WTRPBF LTGXJ 10-Lead Plastic MSOP –40°C to 125°C LT8607IMSE#WPBF LT8607IMSE#WTRPBF LTGXJ 10-Lead Plastic MSOP –40°C to 125°C LT8607JMSE#WPBF LT8607JMSE#WTRPBF LTGXJ 10-Lead Plastic MSOP –40°C to 150°C LT8607HMSE#WPBF LT8607HMSE#WTRPBF LTGXJ 10-Lead Plastic MSOP –40°C to 150°C LT8607EMSE-5#WPBF LT8607EMSE-5#WTRPBF LTHNY 10-Lead Plastic MSOP –40°C to 125°C LT8607JMSE-5#WPBF LT8607JMSE-5#WTRPBF LTHNY 10-Lead Plastic MSOP –40°C to 150°C LT8607EDC#WTRMPBF LT8607EDC#WTRPBF LGXK 8-Lead Plastic (2mm × 2mm) DFN –40°C to 125°C LT8607IDC#WTRMPBF LT8607IDC#WTRPBF LGXK 8-Lead Plastic (2mm × 2mm) DFN –40°C to 125°C LT8607JDC#WTRMPBF LT8607JDC#WTRPBF LGXK 8-Lead Plastic (2mm × 2mm) DFN –40°C to 150°C LT8607HDC#WTRMPBF LT8607HDC#WTRPBF LGXK 8-Lead Plastic (2mm × 2mm) DFN –40°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models.
