| Description | Micropower Buck Regulator with Integrated Boost and Catch Diodes |
| Pages / Page | 20 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. SHDN Bias Current. FB Bias Current … |
| Revision | E |
| File Format / Size | PDF / 483 Kb |
| Document Language | English |
TYPICAL PERFORMANCE CHARACTERISTICS. SHDN Bias Current. FB Bias Current (VFB = 1V). FB Bias Current (VFB = 0V). vs Temperature
Model Line for this Datasheet
- LT3470EDDB#TRMPBF LT3470EDDB#TRPBF LT3470EDDB#WTRMPBF LT3470EDDB#WTRPBF LT3470ETS8#TRMPBF LT3470ETS8#TRPBF LT3470HDDB#TRMPBF LT3470HDDB#TRPBF LT3470HDDB#WTRMPBF LT3470HDDB#WTRPBF LT3470HTS8#TRMPBF LT3470HTS8#TRPBF LT3470IDDB#TRMPBF LT3470IDDB#TRPBF LT3470IDDB#WTRMPBF LT3470IDDB#WTRPBF LT3470ITS8#TRMPBF LT3470ITS8#TRPBF
Text Version of Document
LT3470

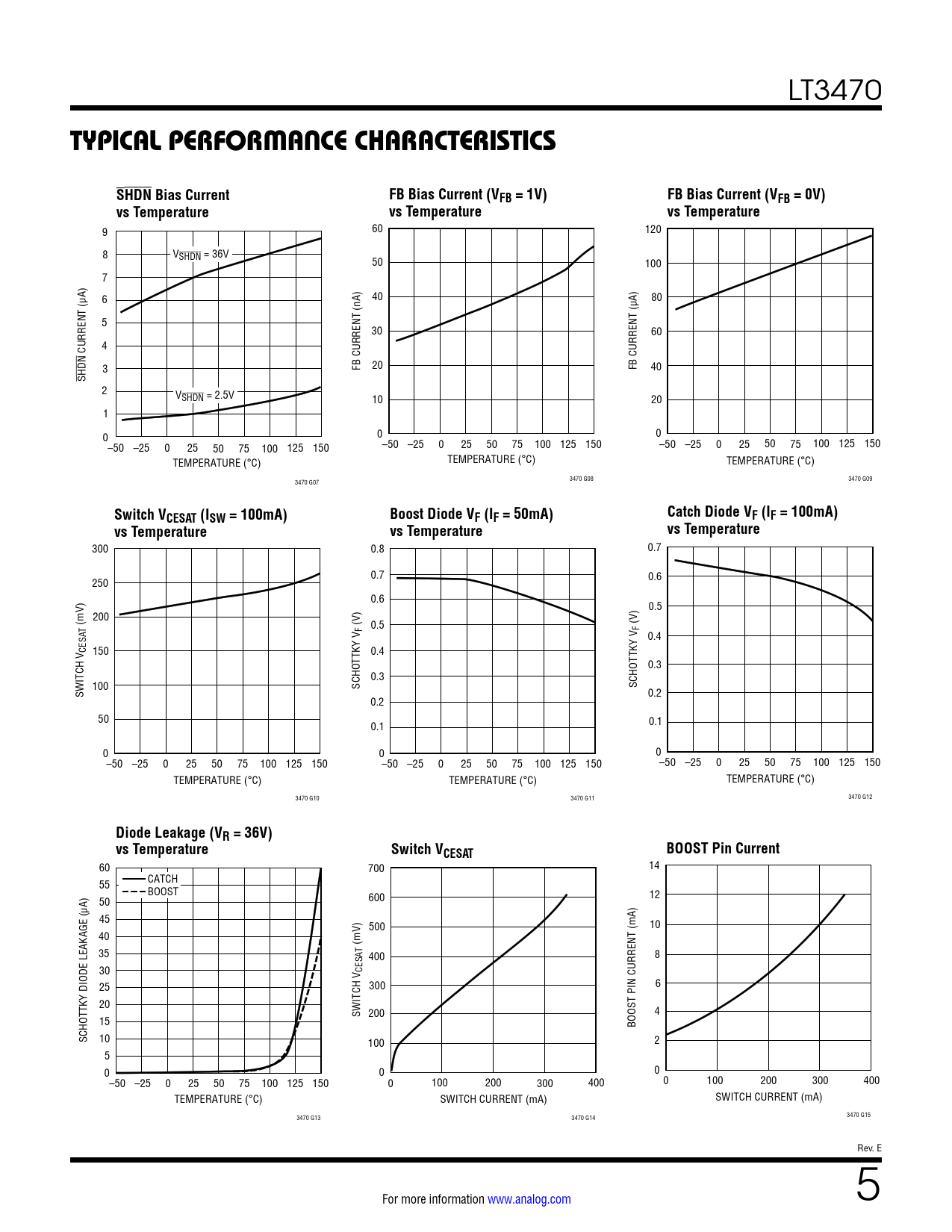

TYPICAL PERFORMANCE CHARACTERISTICS SHDN Bias Current FB Bias Current (VFB = 1V) FB Bias Current (VFB = 0V) vs Temperature vs Temperature vs Temperature
