Datasheet ADA4177-2CHIPS (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | OVP and EMI Protected, Precision, Low Noise and Low Bias Current Op Amp |
| Pages / Page | 7 / 6 — ADA4177-2CHIPS. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTION. … |
| File Format / Size | PDF / 156 Kb |
| Document Language | English |

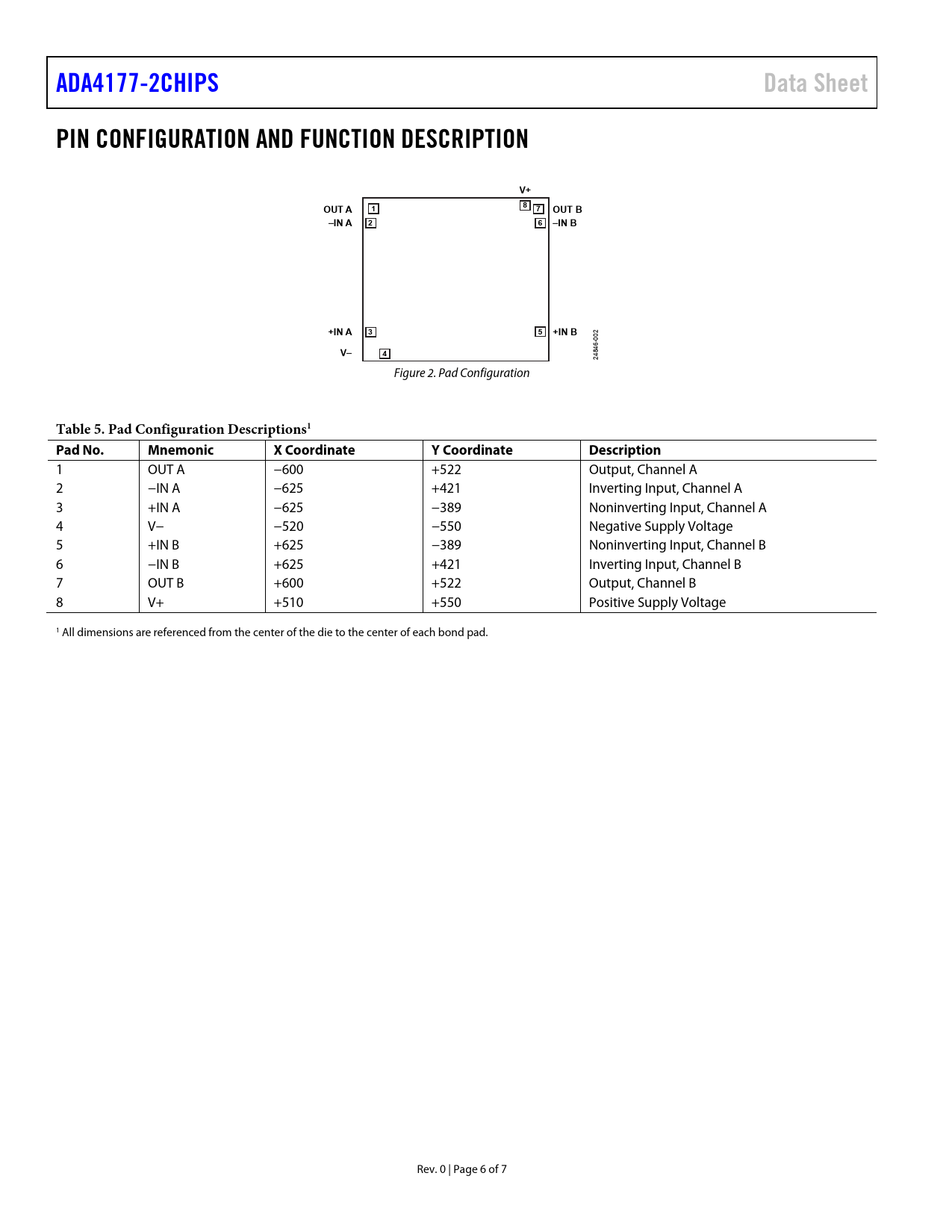

ADA4177-2CHIPS. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTION. OUT A. OUT B. –IN A. –IN B. +IN A. +IN B
Model Line for this Datasheet
Text Version of Document
ADA4177-2CHIPS Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTION V+ OUT A 1 8 7 OUT B –IN A 2 6 –IN B +IN A 3 5 +IN B
02 -0 46
V– 4
248 Figure 2. Pad Configuration
Table 5. Pad Configuration Descriptions1 Pad No. Mnemonic X Coordinate Y Coordinate Description
1 OUT A −600 +522 Output, Channel A 2 −IN A −625 +421 Inverting Input, Channel A 3 +IN A −625 −389 Noninverting Input, Channel A 4 V− −520 −550 Negative Supply Voltage 5 +IN B +625 −389 Noninverting Input, Channel B 6 −IN B +625 +421 Inverting Input, Channel B 7 OUT B +600 +522 Output, Channel B 8 V+ +510 +550 Positive Supply Voltage 1 All dimensions are referenced from the center of the die to the center of each bond pad. Rev. 0 | Page 6 of 7 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS, ±5 V ELECTRICAL CHARACTERISTICS, ±15 V ABSOLUTE MAXIMUM RATINGS ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADA4177-2CHIPS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTION OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
