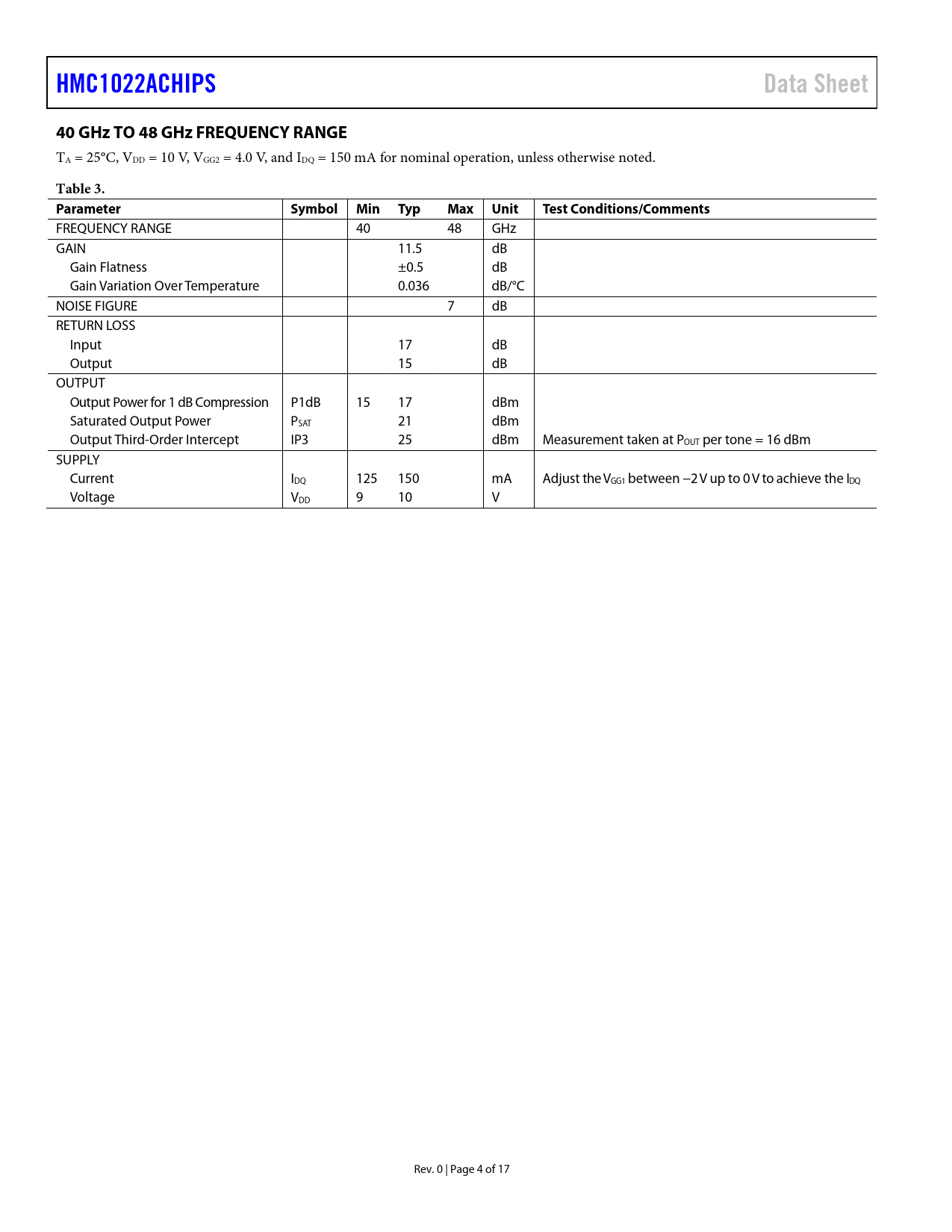

HMC1022ACHIPS. Data Sheet. 40 GHz TO 48 GHz FREQUENCY RANGE. Table 3. Parameter. Symbol Min Typ. Max Unit. Test Conditions/Comments
Model Line for this Datasheet
Text Version of Document
HMC1022ACHIPS Data Sheet 40 GHz TO 48 GHz FREQUENCY RANGE
TA = 25°C, VDD = 10 V, VGG2 = 4.0 V, and IDQ = 150 mA for nominal operation, unless otherwise noted.
Table 3. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 40 48 GHz GAIN 11.5 dB Gain Flatness ±0.5 dB Gain Variation Over Temperature 0.036 dB/°C NOISE FIGURE 7 dB RETURN LOSS Input 17 dB Output 15 dB OUTPUT Output Power for 1 dB Compression P1dB 15 17 dBm Saturated Output Power PSAT 21 dBm Output Third-Order Intercept IP3 25 dBm Measurement taken at POUT per tone = 16 dBm SUPPLY Current IDQ 125 150 mA Adjust the VGG1 between −2 V up to 0 V to achieve the IDQ Voltage VDD 9 10 V Rev. 0 | Page 4 of 17 Document Outline Features Applications Functional Block Diagram General Description Revision History Electrical Specifications DC to 30 GHz Frequency Range 30 GHz to 40 GHz Frequency Range 40 GHz to 48 GHz Frequency Range Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Theory of Operation Applications Information Biasing Procedures Mounting and Bonding Techniques for Millimeterwave GaAs MMICs Handling Precautions Mounting Wire Bonding Outline Dimensions Ordering Guide
