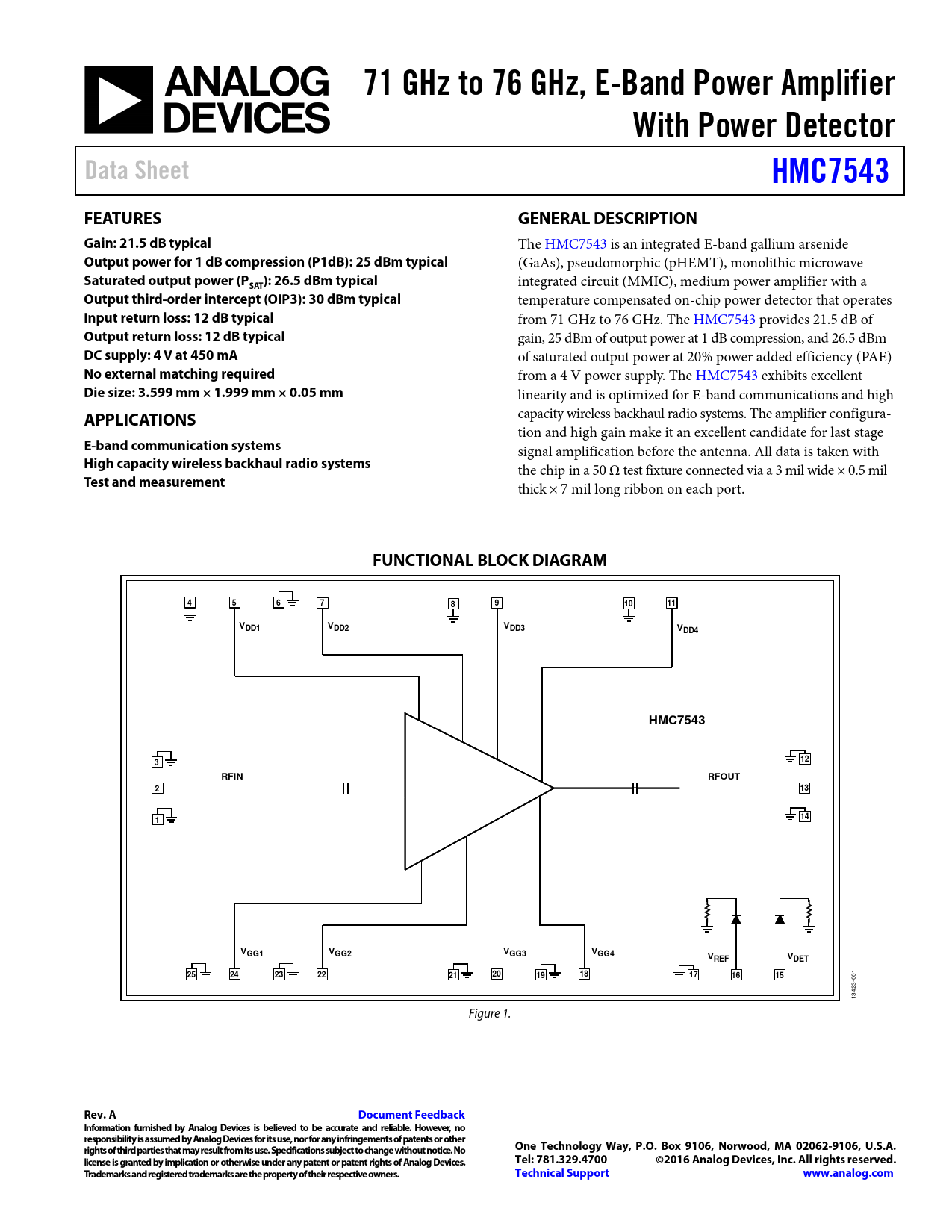

71 GHz to 76 GHz, E-Band Power Amplifier. With Power Detector. Data Sheet. HMC7543. FEATURES. GENERAL DESCRIPTION
Model Line for this Datasheet
Text Version of Document
71 GHz to 76 GHz, E-Band Power Amplifier With Power Detector Data Sheet HMC7543 FEATURES GENERAL DESCRIPTION Gain: 21.5 dB typical
The HMC7543 is an integrated E-band gallium arsenide
Output power for 1 dB compression (P1dB): 25 dBm typical
(GaAs), pseudomorphic (pHEMT), monolithic microwave
Saturated output power (P ): 26.5 dBm typical SAT
integrated circuit (MMIC), medium power amplifier with a
Output third-order intercept (OIP3): 30 dBm typical
temperature compensated on-chip power detector that operates
Input return loss: 12 dB typical
from 71 GHz to 76 GHz. The HMC7543 provides 21.5 dB of
Output return loss: 12 dB typical
gain, 25 dBm of output power at 1 dB compression, and 26.5 dBm
DC supply: 4 V at 450 mA
of saturated output power at 20% power added efficiency (PAE)
No external matching required
from a 4 V power supply. The HMC7543 exhibits excellent
Die size: 3.599 mm × 1.999 mm × 0.05 mm
linearity and is optimized for E-band communications and high
APPLICATIONS
capacity wireless backhaul radio systems. The amplifier configura- tion and high gain make it an excel ent candidate for last stage
E-band communication systems
signal amplification before the antenna. Al data is taken with
High capacity wireless backhaul radio systems
the chip in a 50 Ω test fixture connected via a 3 mil wide × 0.5 mil
Test and measurement
thick × 7 mil long ribbon on each port.
FUNCTIONAL BLOCK DIAGRAM 4 5 6 7 8 9 10 11 VDD1 VDD2 VDD3 VDD4 HMC7543 12 3 RFIN RFOUT 2 13 1 14 VGG1 VGG2 VGG3 VGG4 VREF VDET 25 24 23 22 21 20 19 18 17 16 15
