Datasheet ADL5606 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 1800 MHz TO 2700 MHz, 1 W RF Driver Amplifier |
| Pages / Page | 18 / 3 — Data Sheet. ADL5606. SPECIFICATIONS. Table 1. Parameter Test. … |
| Revision | C |
| File Format / Size | PDF / 428 Kb |
| Document Language | English |

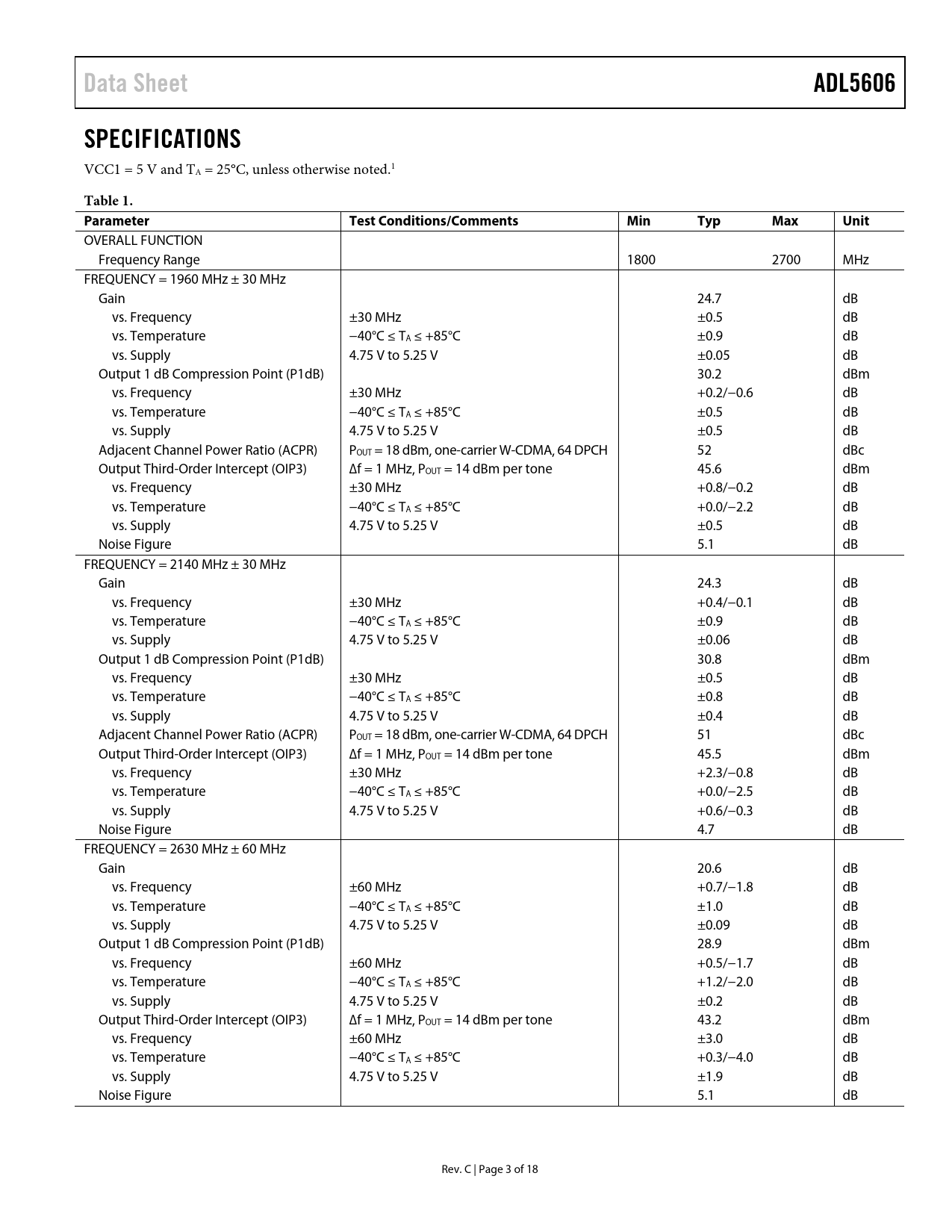

Data Sheet. ADL5606. SPECIFICATIONS. Table 1. Parameter Test. Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 4
Data Sheet ADL5606 SPECIFICATIONS
VCC1 = 5 V and TA = 25°C, unless otherwise noted.1
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
OVERALL FUNCTION Frequency Range 1800 2700 MHz FREQUENCY = 1960 MHz ± 30 MHz Gain 24.7 dB vs. Frequency ±30 MHz ±0.5 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.9 dB vs. Supply 4.75 V to 5.25 V ±0.05 dB Output 1 dB Compression Point (P1dB) 30.2 dBm vs. Frequency ±30 MHz +0.2/−0.6 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.5 dB vs. Supply 4.75 V to 5.25 V ±0.5 dB Adjacent Channel Power Ratio (ACPR) POUT = 18 dBm, one-carrier W-CDMA, 64 DPCH 52 dBc Output Third-Order Intercept (OIP3) ∆f = 1 MHz, POUT = 14 dBm per tone 45.6 dBm vs. Frequency ±30 MHz +0.8/−0.2 dB vs. Temperature −40°C ≤ TA ≤ +85°C +0.0/−2.2 dB vs. Supply 4.75 V to 5.25 V ±0.5 dB Noise Figure 5.1 dB FREQUENCY = 2140 MHz ± 30 MHz Gain 24.3 dB vs. Frequency ±30 MHz +0.4/−0.1 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.9 dB vs. Supply 4.75 V to 5.25 V ±0.06 dB Output 1 dB Compression Point (P1dB) 30.8 dBm vs. Frequency ±30 MHz ±0.5 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±0.8 dB vs. Supply 4.75 V to 5.25 V ±0.4 dB Adjacent Channel Power Ratio (ACPR) POUT = 18 dBm, one-carrier W-CDMA, 64 DPCH 51 dBc Output Third-Order Intercept (OIP3) ∆f = 1 MHz, POUT = 14 dBm per tone 45.5 dBm vs. Frequency ±30 MHz +2.3/−0.8 dB vs. Temperature −40°C ≤ TA ≤ +85°C +0.0/−2.5 dB vs. Supply 4.75 V to 5.25 V +0.6/−0.3 dB Noise Figure 4.7 dB FREQUENCY = 2630 MHz ± 60 MHz Gain 20.6 dB vs. Frequency ±60 MHz +0.7/−1.8 dB vs. Temperature −40°C ≤ TA ≤ +85°C ±1.0 dB vs. Supply 4.75 V to 5.25 V ±0.09 dB Output 1 dB Compression Point (P1dB) 28.9 dBm vs. Frequency ±60 MHz +0.5/−1.7 dB vs. Temperature −40°C ≤ TA ≤ +85°C +1.2/−2.0 dB vs. Supply 4.75 V to 5.25 V ±0.2 dB Output Third-Order Intercept (OIP3) ∆f = 1 MHz, POUT = 14 dBm per tone 43.2 dBm vs. Frequency ±60 MHz ±3.0 dB vs. Temperature −40°C ≤ TA ≤ +85°C +0.3/−4.0 dB vs. Supply 4.75 V to 5.25 V ±1.9 dB Noise Figure 5.1 dB Rev. C | Page 3 of 18 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 1960 MHZ FREQUENCY TUNING BAND 2140 MHZ FREQUENCY TUNING BAND 2630 MHZ FREQUENCY TUNING BAND GENERAL APPLICATIONS INFORMATION BASIC LAYOUT CONNECTIONS Power Supply RF Input Interface RF Output Interface Power-Down ADL5606 MATCHING ACPR AND EVM THERMAL CONSIDERATIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADL5606 SPECIFICATIONS
VCC1 = 5 V and TA = 25°C, unless otherwise noted.1
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
