Datasheet ADL5606 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 1800 MHz TO 2700 MHz, 1 W RF Driver Amplifier |
| Pages / Page | 18 / 5 — Data Sheet. ADL5606. Frequency. S11 S21 S12 S22. (MHz). Magnitude (dB). … |
| Revision | C |
| File Format / Size | PDF / 428 Kb |
| Document Language | English |

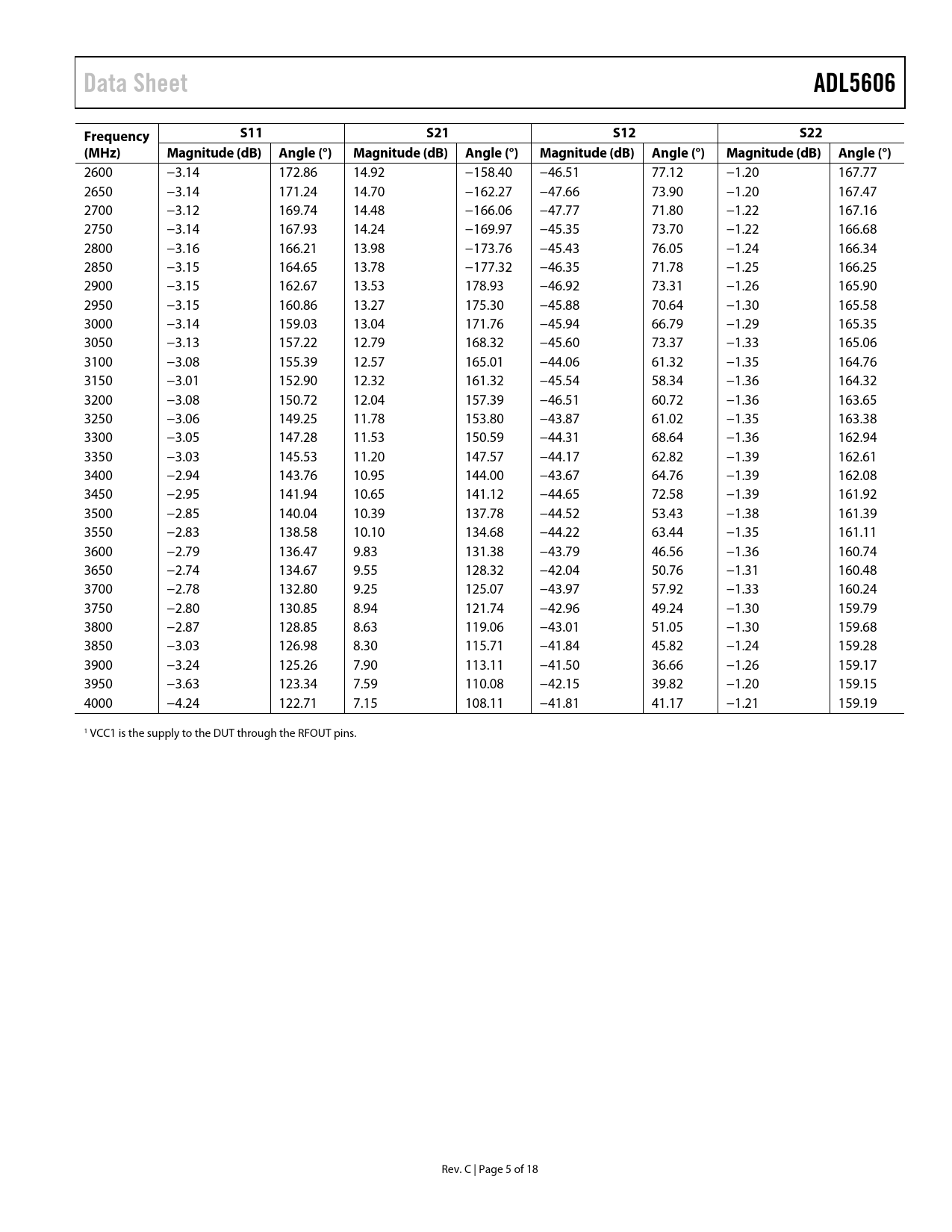

Data Sheet. ADL5606. Frequency. S11 S21 S12 S22. (MHz). Magnitude (dB). Angle (°)
Model Line for this Datasheet
Text Version of Document
Data Sheet ADL5606 Frequency S11 S21 S12 S22 (MHz) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°) Magnitude (dB) Angle (°)
2600 −3.14 172.86 14.92 −158.40 −46.51 77.12 −1.20 167.77 2650 −3.14 171.24 14.70 −162.27 −47.66 73.90 −1.20 167.47 2700 −3.12 169.74 14.48 −166.06 −47.77 71.80 −1.22 167.16 2750 −3.14 167.93 14.24 −169.97 −45.35 73.70 −1.22 166.68 2800 −3.16 166.21 13.98 −173.76 −45.43 76.05 −1.24 166.34 2850 −3.15 164.65 13.78 −177.32 −46.35 71.78 −1.25 166.25 2900 −3.15 162.67 13.53 178.93 −46.92 73.31 −1.26 165.90 2950 −3.15 160.86 13.27 175.30 −45.88 70.64 −1.30 165.58 3000 −3.14 159.03 13.04 171.76 −45.94 66.79 −1.29 165.35 3050 −3.13 157.22 12.79 168.32 −45.60 73.37 −1.33 165.06 3100 −3.08 155.39 12.57 165.01 −44.06 61.32 −1.35 164.76 3150 −3.01 152.90 12.32 161.32 −45.54 58.34 −1.36 164.32 3200 −3.08 150.72 12.04 157.39 −46.51 60.72 −1.36 163.65 3250 −3.06 149.25 11.78 153.80 −43.87 61.02 −1.35 163.38 3300 −3.05 147.28 11.53 150.59 −44.31 68.64 −1.36 162.94 3350 −3.03 145.53 11.20 147.57 −44.17 62.82 −1.39 162.61 3400 −2.94 143.76 10.95 144.00 −43.67 64.76 −1.39 162.08 3450 −2.95 141.94 10.65 141.12 −44.65 72.58 −1.39 161.92 3500 −2.85 140.04 10.39 137.78 −44.52 53.43 −1.38 161.39 3550 −2.83 138.58 10.10 134.68 −44.22 63.44 −1.35 161.11 3600 −2.79 136.47 9.83 131.38 −43.79 46.56 −1.36 160.74 3650 −2.74 134.67 9.55 128.32 −42.04 50.76 −1.31 160.48 3700 −2.78 132.80 9.25 125.07 −43.97 57.92 −1.33 160.24 3750 −2.80 130.85 8.94 121.74 −42.96 49.24 −1.30 159.79 3800 −2.87 128.85 8.63 119.06 −43.01 51.05 −1.30 159.68 3850 −3.03 126.98 8.30 115.71 −41.84 45.82 −1.24 159.28 3900 −3.24 125.26 7.90 113.11 −41.50 36.66 −1.26 159.17 3950 −3.63 123.34 7.59 110.08 −42.15 39.82 −1.20 159.15 4000 −4.24 122.71 7.15 108.11 −41.81 41.17 −1.21 159.19 1 VCC1 is the supply to the DUT through the RFOUT pins. Rev. C | Page 5 of 18 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 1960 MHZ FREQUENCY TUNING BAND 2140 MHZ FREQUENCY TUNING BAND 2630 MHZ FREQUENCY TUNING BAND GENERAL APPLICATIONS INFORMATION BASIC LAYOUT CONNECTIONS Power Supply RF Input Interface RF Output Interface Power-Down ADL5606 MATCHING ACPR AND EVM THERMAL CONSIDERATIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
