| Manufacturer | Analog Devices |
| Description | 1800 MHz TO 2700 MHz, 1 W RF Driver Amplifier |
| Pages / Page | 18 / 6 — ADL5606. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL … |
| Revision | C |
| File Format / Size | PDF / 428 Kb |
| Document Language | English |
ADL5606. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE. Parameter Rating. Table 4. Thermal Resistance
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 15

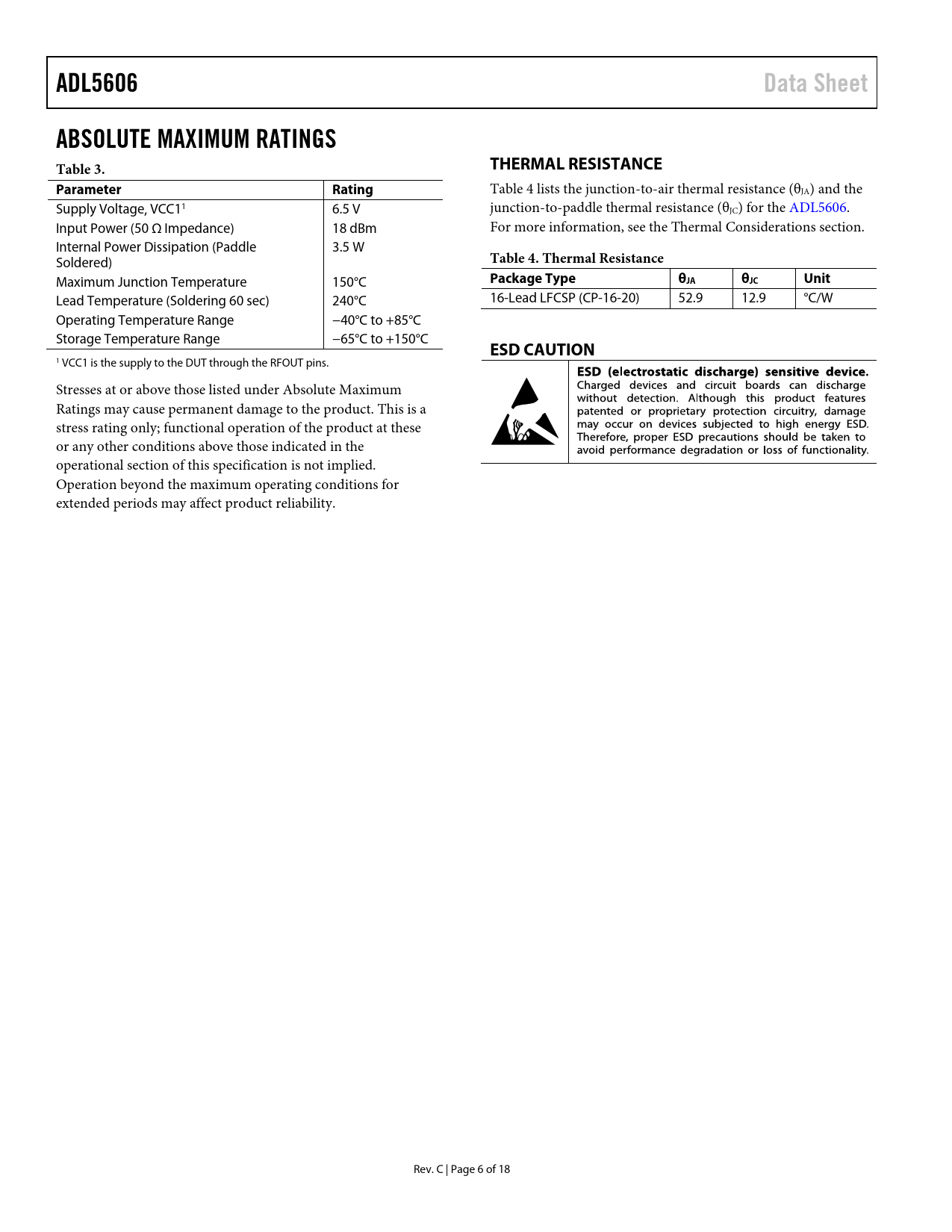

ADL5606 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
Table 4 lists the junction-to-air thermal resistance (θJA) and the Supply Voltage, VCC11 6.5 V junction-to-paddle thermal resistance (θJC) for the ADL5606. Input Power (50 Ω Impedance) 18 dBm For more information, see the Thermal Considerations section. Internal Power Dissipation (Paddle 3.5 W Soldered)
Table 4. Thermal Resistance
Maximum Junction Temperature 150°C
Package Type θJA θJC Unit
Lead Temperature (Soldering 60 sec) 240°C 16-Lead LFCSP (CP-16-20) 52.9 12.9 °C/W Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C
ESD CAUTION
1 VCC1 is the supply to the DUT through the RFOUT pins. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. C | Page 6 of 18 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 1960 MHZ FREQUENCY TUNING BAND 2140 MHZ FREQUENCY TUNING BAND 2630 MHZ FREQUENCY TUNING BAND GENERAL APPLICATIONS INFORMATION BASIC LAYOUT CONNECTIONS Power Supply RF Input Interface RF Output Interface Power-Down ADL5606 MATCHING ACPR AND EVM THERMAL CONSIDERATIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
