Datasheet ADL5605 (Analog Devices) - 4

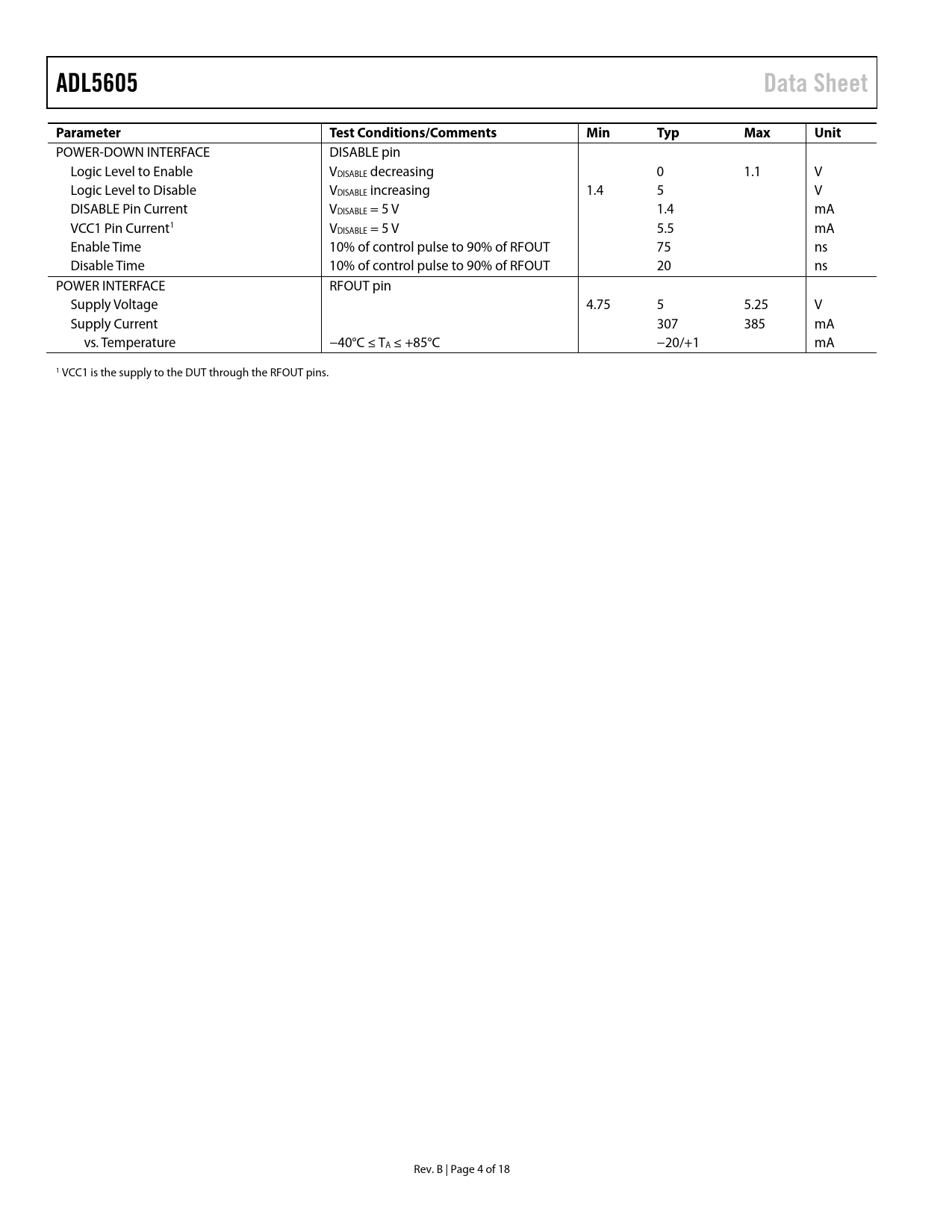

ADL5605 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
POWER-DOWN INTERFACE DISABLE pin Logic Level to Enable VDISABLE decreasing 0 1.1 V Logic Level to Disable VDISABLE increasing 1.4 5 V DISABLE Pin Current VDISABLE = 5 V 1.4 mA VCC1 Pin Current1 VDISABLE = 5 V 5.5 mA Enable Time 10% of control pulse to 90% of RFOUT 75 ns Disable Time 10% of control pulse to 90% of RFOUT 20 ns POWER INTERFACE RFOUT pin Supply Voltage 4.75 5 5.25 V Supply Current 307 385 mA vs. Temperature −40°C ≤ TA ≤ +85°C −20/+1 mA 1 VCC1 is the supply to the DUT through the RFOUT pins. Rev. B | Page 4 of 18 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TYPICAL SCATTERING PARAMETERS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS 748 MHZ FREQUENCY TUNING BAND 881 MHZ FREQUENCY TUNING BAND 943 MHZ FREQUENCY TUNING BAND GENERAL APPLICATIONS INFORMATION BASIC LAYOUT CONNECTIONS Power Supply RF Input Interface RF Output Interface Power-Down ADL5605 MATCHING ACPR AND EVM THERMAL CONSIDERATIONS SOLDERING INFORMATION AND RECOMMENDED PCB LAND PATTERN EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
