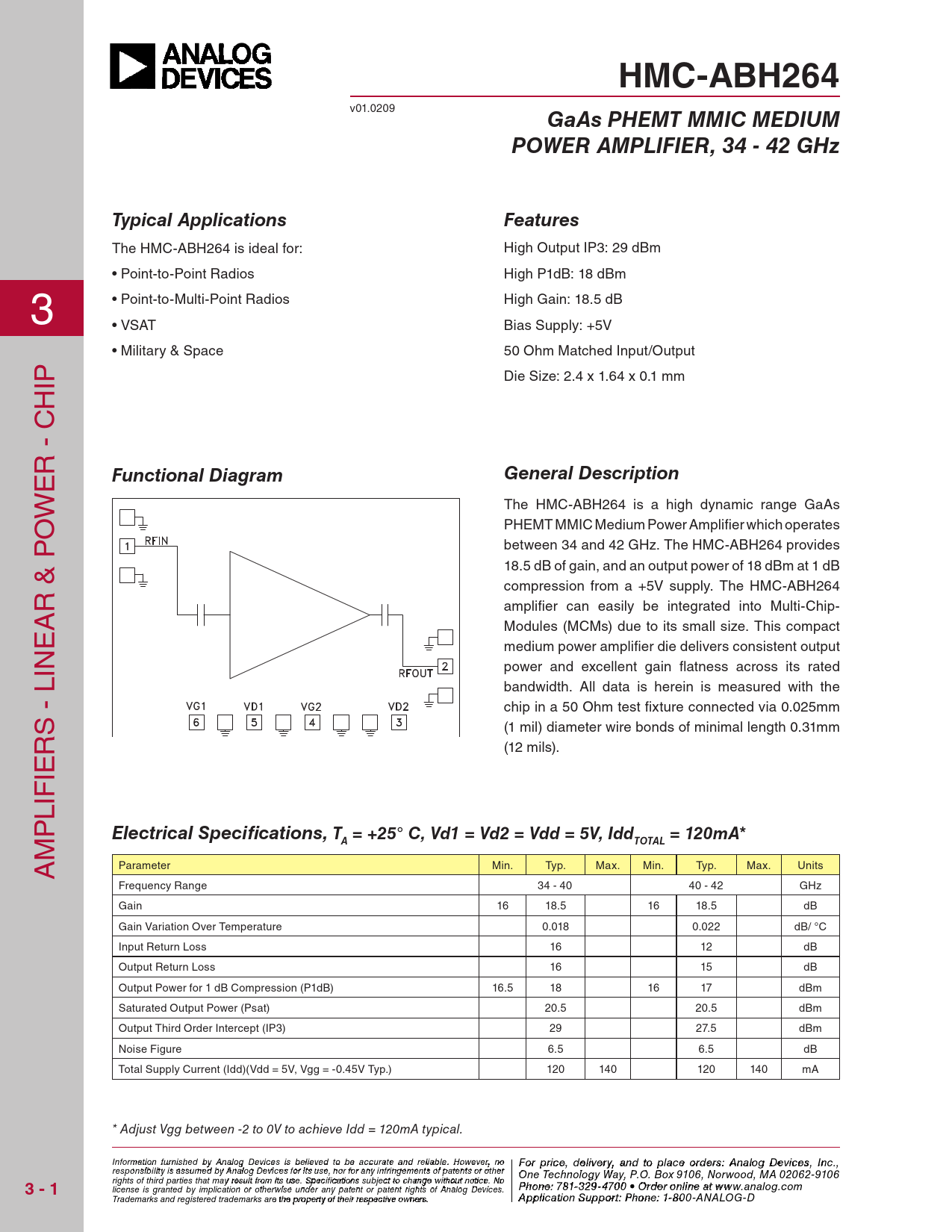

HMC-ABH264. GaAs PHEMT MMIC MEDIUM. POWER AMPLIFIER, 34 - 42 GHz. Typical Applications. Features. Functional Diagram
Model Line for this Datasheet
Text Version of Document
HMC-ABH264
v01.0209
GaAs PHEMT MMIC MEDIUM POWER AMPLIFIER, 34 - 42 GHz Typical Applications Features
The hmC-ABh264 is ideal for: high output ip3: 29 dBm • point-to-point radios high p1dB: 18 dBm 3 • point-to-multi-point radios high Gain: 18.5 dB • VsAT Bias supply: +5V • military & space 50 ohm matched input/output ip Die size: 2.4 x 1.64 x 0.1 mm h r - C e
Functional Diagram General Description
w The hmC-ABh264 is a high dynamic range GaAs o phemT mmiC medium power Amplifier which operates p between 34 and 42 Ghz. The hmC-ABh264 provides 18.5 dB of gain, and an output power of 18 dBm at 1 dB compression from a +5V supply. The hmC-ABh264 r & A amplifier can easily be integrated into multi-Chip- e modules (mCms) due to its small size. This compact medium power amplifier die delivers consistent output lin power and excel ent gain flatness across its rated bandwidth. All data is herein is measured with the chip in a 50 ohm test fixture connected via 0.025mm s - (1 mil) diameter wire bonds of minimal length 0.31mm r (12 mils). ie lif p
Electrical Specifications, T = +25° C, Vd1 = Vd2 = Vdd = 5V, Idd = 120mA*
m
A TOTAL
A parameter min. Typ. max. min. Typ. max. Units frequency range 34 - 40 40 - 42 Ghz Gain 16 18.5 16 18.5 dB Gain Variation over Temperature 0.018 0.022 dB/ °C input return loss 16 12 dB output return loss 16 15 dB output power for 1 dB Compression (p1dB) 16.5 18 16 17 dBm saturated output power (psat) 20.5 20.5 dBm output Third order intercept (ip3) 29 27.5 dBm noise figure 6.5 6.5 dB Total supply Current (idd)(Vdd = 5V, Vgg = -0.45V Typ.) 120 140 120 140 mA * Adjust Vgg between -2 to 0V to achieve Idd = 120mA typical. Infor F m o ati ro p n f ruirc n e ish ,e d d e b l y iv Anealroyg a D n evidc ets oi s pblealic ev e e d otr o d b e e ras cc: urH at it e taitne d M relia ic bler. ow Ho a we vve er , C n o o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rporation, 20 Alpha Road, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
3 - 1
Phone: 978-250-3343 Fax: 978-250-3373 rights of third parties that may result from its use. Specifications subject to change without notice. No O Ph rod n e e r : 7On 81- - 3 li 2 n 9-e 4 a 70t ww 0 • O w rd . e hi r ott nliite n .c e a o t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 pli co atri o ap n S p ups@ por h t it : Ptit hoen.c e o : 1 m -800-ANALOG-D
