HMC609LC4
v03.0514

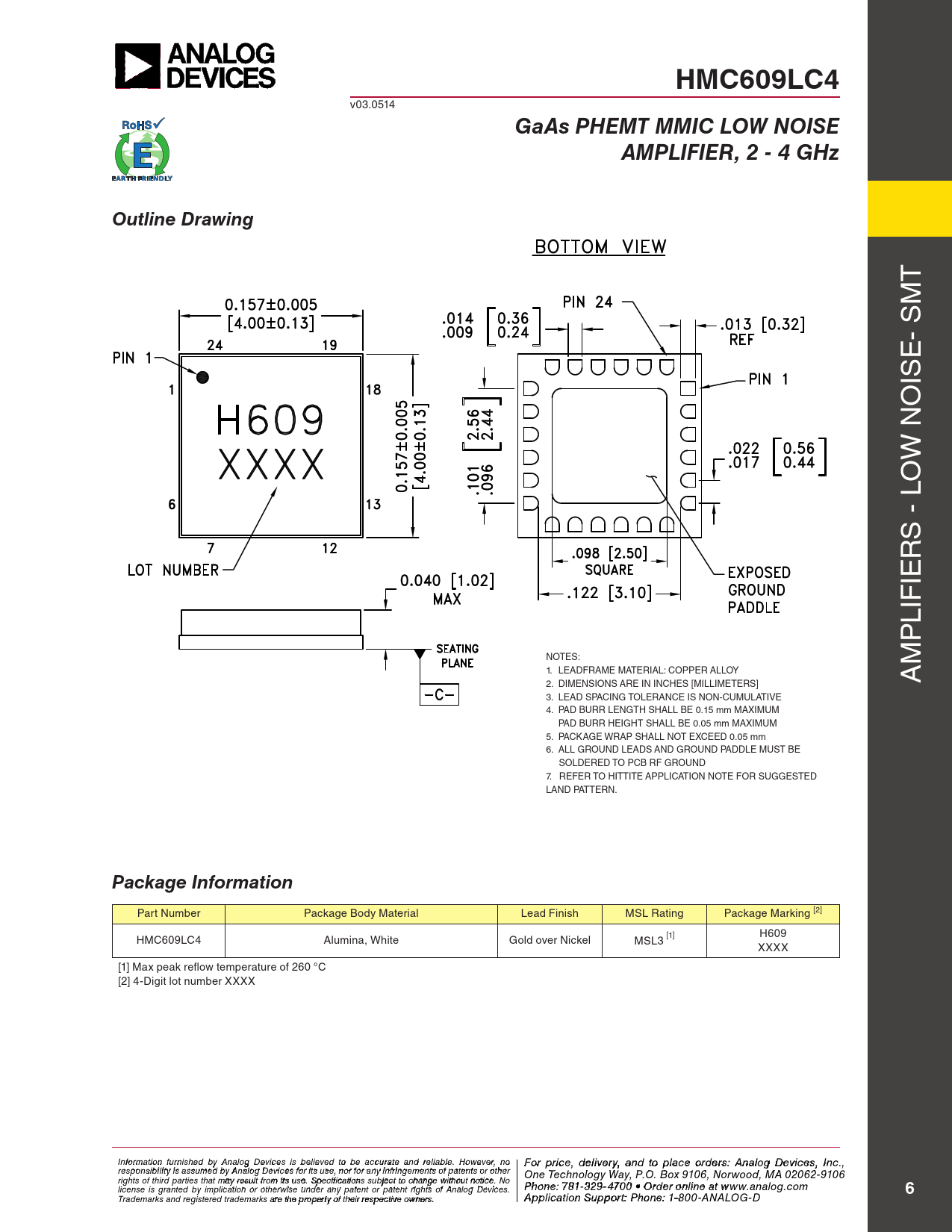

GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 2 - 4 GHz Outline Drawing
T M - S E IS O W N O S - L R IE LIF P NOTES: M 1. LEADFRAME MATERIAL: COPPER ALLOY 2. DIMENSIONS ARE IN INCHES [MILLIMETERS] A 3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE 4. PAD BURR LENGTH SHALL BE 0.15 mm MAXIMUM PAD BURR HEIGHT SHALL BE 0.05 mm MAXIMUM 5. PACKAGE WRAP SHALL NOT EXCEED 0.05 mm 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND 7. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED LAND PATTERN.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] HMC609LC4 Alumina, White Gold over Nickel MSL3 [1] H609 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com
