Datasheet HMC441LC3B (Analog Devices)
| Manufacturer | Analog Devices |
| Description | GaAs pHEMT MMIC MEDIUM POWER AMPLIFIER, 6 - 18 GHz |
| Pages / Page | 7 / 1 — HMC441LC3B. GaAs pHEMT MMIC MEDIUM. POWER AMPLIFIER, 6 - 18 GHz. Typical … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |

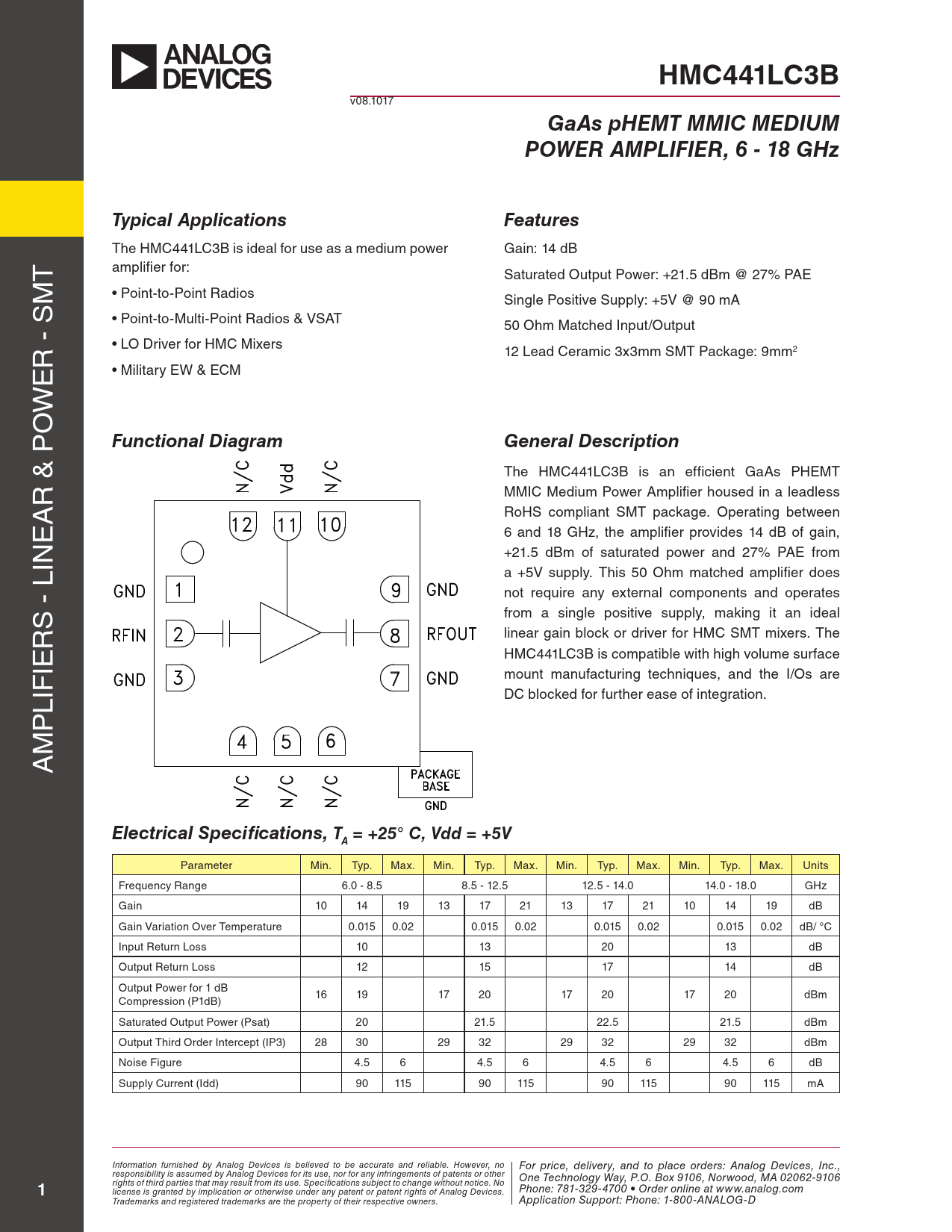

HMC441LC3B. GaAs pHEMT MMIC MEDIUM. POWER AMPLIFIER, 6 - 18 GHz. Typical Applications. Features. Functional Diagram
Model Line for this Datasheet
Text Version of Document
HMC441LC3B
v08.1017
GaAs pHEMT MMIC MEDIUM POWER AMPLIFIER, 6 - 18 GHz Typical Applications Features
The HMC441LC3B is ideal for use as a medium power Gain: 14 dB T amplifier for: Saturated Output Power: +21.5 dBm @ 27% PAE M • Point-to-Point Radios Single Positive Supply: +5V @ 90 mA • Point-to-Multi-Point Radios & VSAT 50 Ohm Matched Input/Output R - S • LO Driver for HMC Mixers 12 Lead Ceramic 3x3mm SMT Package: 9mm2 E • Military EW & ECM W O
Functional Diagram General Description
The HMC441LC3B is an efficient GaAs PHEMT R & P MMIC Medium Power Amplifier housed in a leadless A RoHS compliant SMT package. Operating between E 6 and 18 GHz, the amplifier provides 14 dB of gain, IN +21.5 dBm of saturated power and 27% PAE from a +5V supply. This 50 Ohm matched amplifier does not require any external components and operates S - L from a single positive supply, making it an ideal R linear gain block or driver for HMC SMT mixers. The IE HMC441LC3B is compatible with high volume surface mount manufacturing techniques, and the I/Os are LIF DC blocked for further ease of integration. P M A
Electrical Specifications, T = +25° C, Vdd = +5V A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 6.0 - 8.5 8.5 - 12.5 12.5 - 14.0 14.0 - 18.0 GHz Gain 10 14 19 13 17 21 13 17 21 10 14 19 dB Gain Variation Over Temperature 0.015 0.02 0.015 0.02 0.015 0.02 0.015 0.02 dB/ °C Input Return Loss 10 13 20 13 dB Output Return Loss 12 15 17 14 dB Output Power for 1 dB 16 19 17 20 17 20 17 20 dBm Compression (P1dB) Saturated Output Power (Psat) 20 21.5 22.5 21.5 dBm Output Third Order Intercept (IP3) 28 30 29 32 29 32 29 32 dBm Noise Figure 4.5 6 4.5 6 4.5 6 4.5 6 dB Supply Current (Idd) 90 115 90 115 90 115 90 115 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
