Datasheet ADCA3950 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | DOCSIS 3.1 Power Doubler Hybrid Module, 45 MHz to 1218 MHz |
| Pages / Page | 11 / 5 — Data Sheet. ADCA3950. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. … |
| File Format / Size | PDF / 257 Kb |
| Document Language | English |

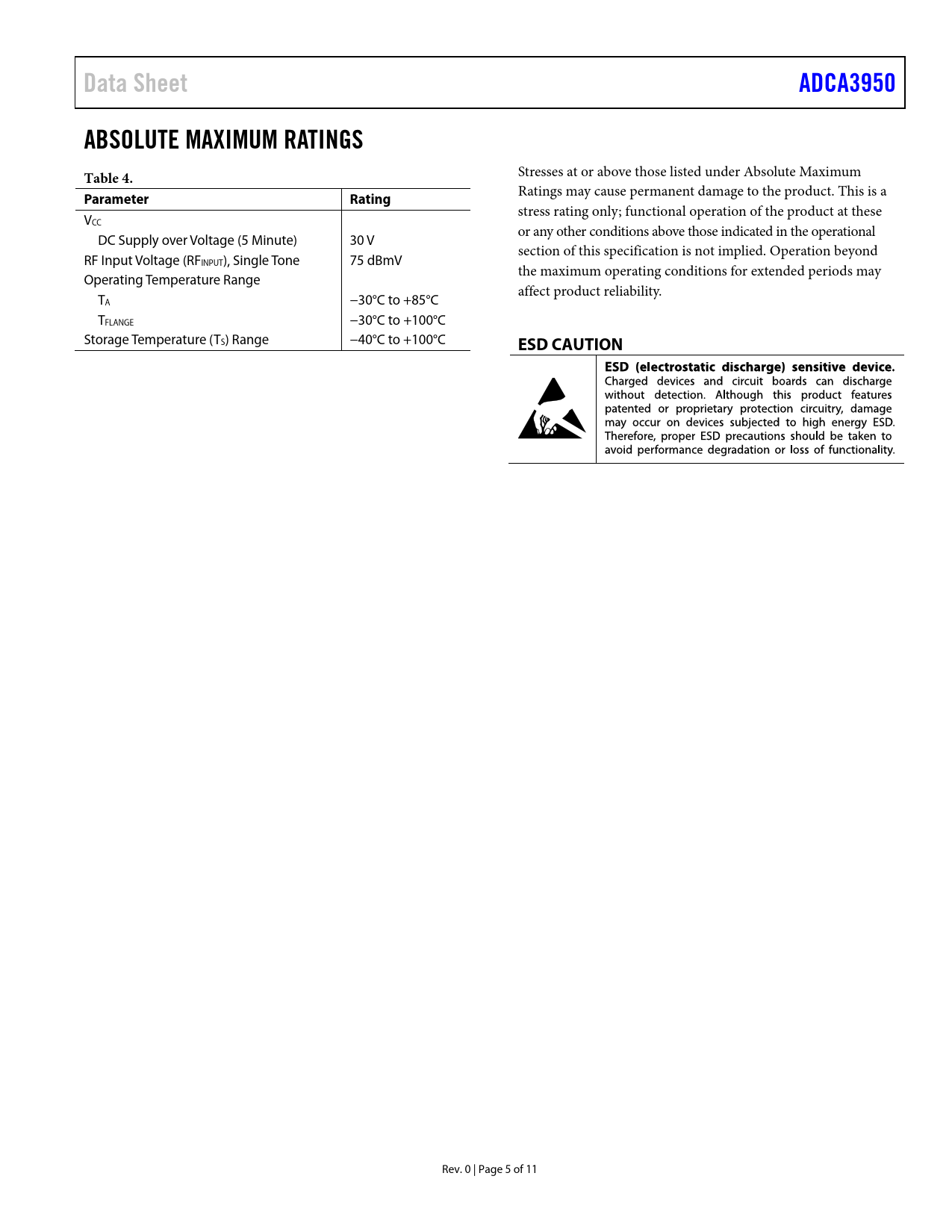

Data Sheet. ADCA3950. ABSOLUTE MAXIMUM RATINGS Table 4. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet ADCA3950 ABSOLUTE MAXIMUM RATINGS Table 4.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these VCC or any other conditions above those indicated in the operational DC Supply over Voltage (5 Minute) 30 V section of this specification is not implied. Operation beyond RF Input Voltage (RFINPUT), Single Tone 75 dBmV the maximum operating conditions for extended periods may Operating Temperature Range affect product reliability. TA −30°C to +85°C T FLANGE −30°C to +100°C Storage Temperature (TS) Range −40°C to +100°C
