Datasheet ADCA3952 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | DOCSIS 3.1, Power Doubler Hybrid Module, 45 MHz to 1218 MHz |
| Pages / Page | 12 / 5 — Data Sheet. ADCA3952. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. … |
| File Format / Size | PDF / 336 Kb |
| Document Language | English |

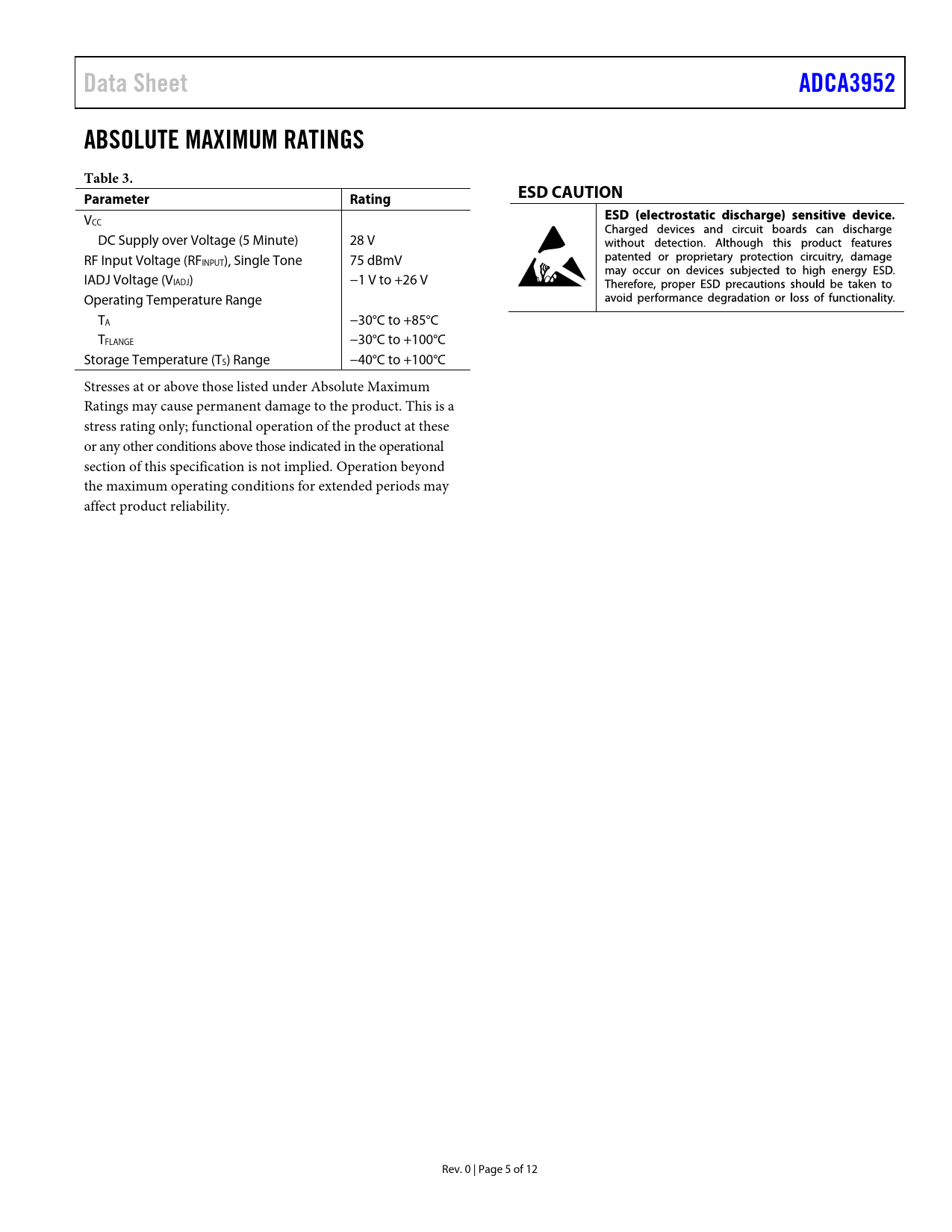

Data Sheet. ADCA3952. ABSOLUTE MAXIMUM RATINGS. Table 3. Parameter. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
Data Sheet ADCA3952 ABSOLUTE MAXIMUM RATINGS Table 3. Parameter Rating ESD CAUTION
VCC DC Supply over Voltage (5 Minute) 28 V RF Input Voltage (RFINPUT), Single Tone 75 dBmV IADJ Voltage (VIADJ) −1 V to +26 V Operating Temperature Range TA −30°C to +85°C TFLANGE −30°C to +100°C Storage Temperature (TS) Range −40°C to +100°C Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. 0 | Page 5 of 12 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS GENERAL PERFORMANCE DISTORTION DATA (40 MHz TO 550 MHz), ERROR RATES, AND TOTAL COMPOSITE POWER ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS S-PARAMETERS 9 dB TILT PERFORMANCE THEORY OF OPERATION APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
