Datasheet HMC788A-EP (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | 0.01 GHz to 10 GHz, MMIC, GaAs, pHEMT RF Gain Block |
| Pages / Page | 8 / 3 — Enhanced Product. HMC788A-EP. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. … |
| Revision | B |
| File Format / Size | PDF / 142 Kb |
| Document Language | English |

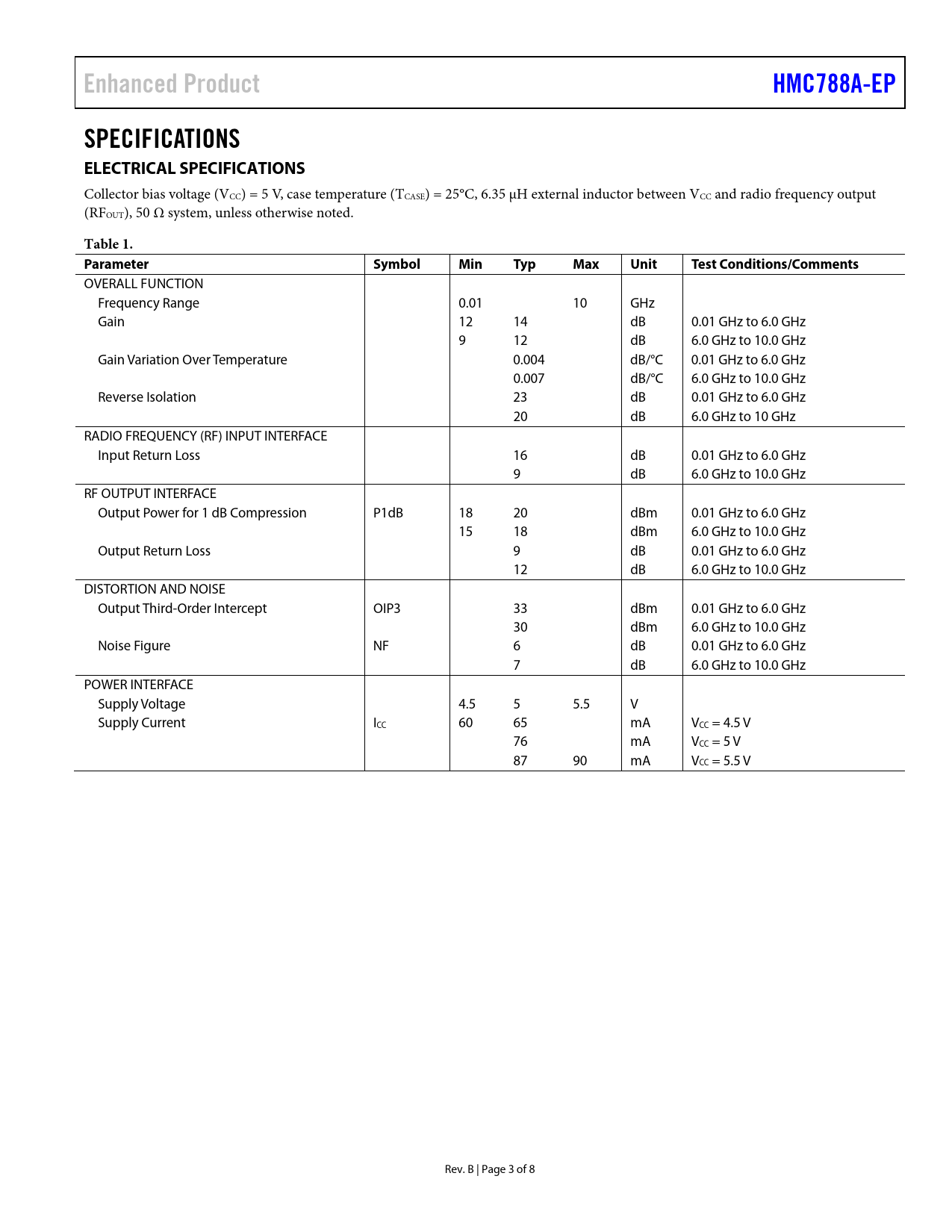

Enhanced Product. HMC788A-EP. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Symbol. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
Enhanced Product HMC788A-EP SPECIFICATIONS ELECTRICAL SPECIFICATIONS
Col ector bias voltage (VCC) = 5 V, case temperature (TCASE) = 25°C, 6.35 µH external inductor between VCC and radio frequency output (RFOUT), 50 Ω system, unless otherwise noted.
Table 1. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
OVERALL FUNCTION Frequency Range 0.01 10 GHz Gain 12 14 dB 0.01 GHz to 6.0 GHz 9 12 dB 6.0 GHz to 10.0 GHz Gain Variation Over Temperature 0.004 dB/°C 0.01 GHz to 6.0 GHz 0.007 dB/°C 6.0 GHz to 10.0 GHz Reverse Isolation 23 dB 0.01 GHz to 6.0 GHz 20 dB 6.0 GHz to 10 GHz RADIO FREQUENCY (RF) INPUT INTERFACE Input Return Loss 16 dB 0.01 GHz to 6.0 GHz 9 dB 6.0 GHz to 10.0 GHz RF OUTPUT INTERFACE Output Power for 1 dB Compression P1dB 18 20 dBm 0.01 GHz to 6.0 GHz 15 18 dBm 6.0 GHz to 10.0 GHz Output Return Loss 9 dB 0.01 GHz to 6.0 GHz 12 dB 6.0 GHz to 10.0 GHz DISTORTION AND NOISE Output Third-Order Intercept OIP3 33 dBm 0.01 GHz to 6.0 GHz 30 dBm 6.0 GHz to 10.0 GHz Noise Figure NF 6 dB 0.01 GHz to 6.0 GHz 7 dB 6.0 GHz to 10.0 GHz POWER INTERFACE Supply Voltage 4.5 5 5.5 V Supply Current ICC 60 65 mA VCC = 4.5 V 76 mA VCC = 5 V 87 90 mA VCC = 5.5 V Rev. B | Page 3 of 8 Document Outline Features Enhanced Product Features Applications Functional Block Diagram General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings Thermal Resistance Power Derating Curves ESD Caution Pin Configuration and Function Descriptions Interface Schematics Typical Performance Characteristics Outline Dimensions Ordering Guide
