Datasheet HMC8410 (Analog Devices) - 5
| Manufacturer | Analog Devices |
| Description | 0.01 GHz to 10 GHz, GaAs, pHEMT, MMIC, Low Noise Amplifier |
| Pages / Page | 17 / 5 — Data Sheet. HMC8410. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter1. … |
| Revision | D |
| File Format / Size | PDF / 684 Kb |
| Document Language | English |
Data Sheet. HMC8410. ABSOLUTE MAXIMUM RATINGS. Table 4. Parameter1. Rating. ESD CAUTION
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6 link to page 17

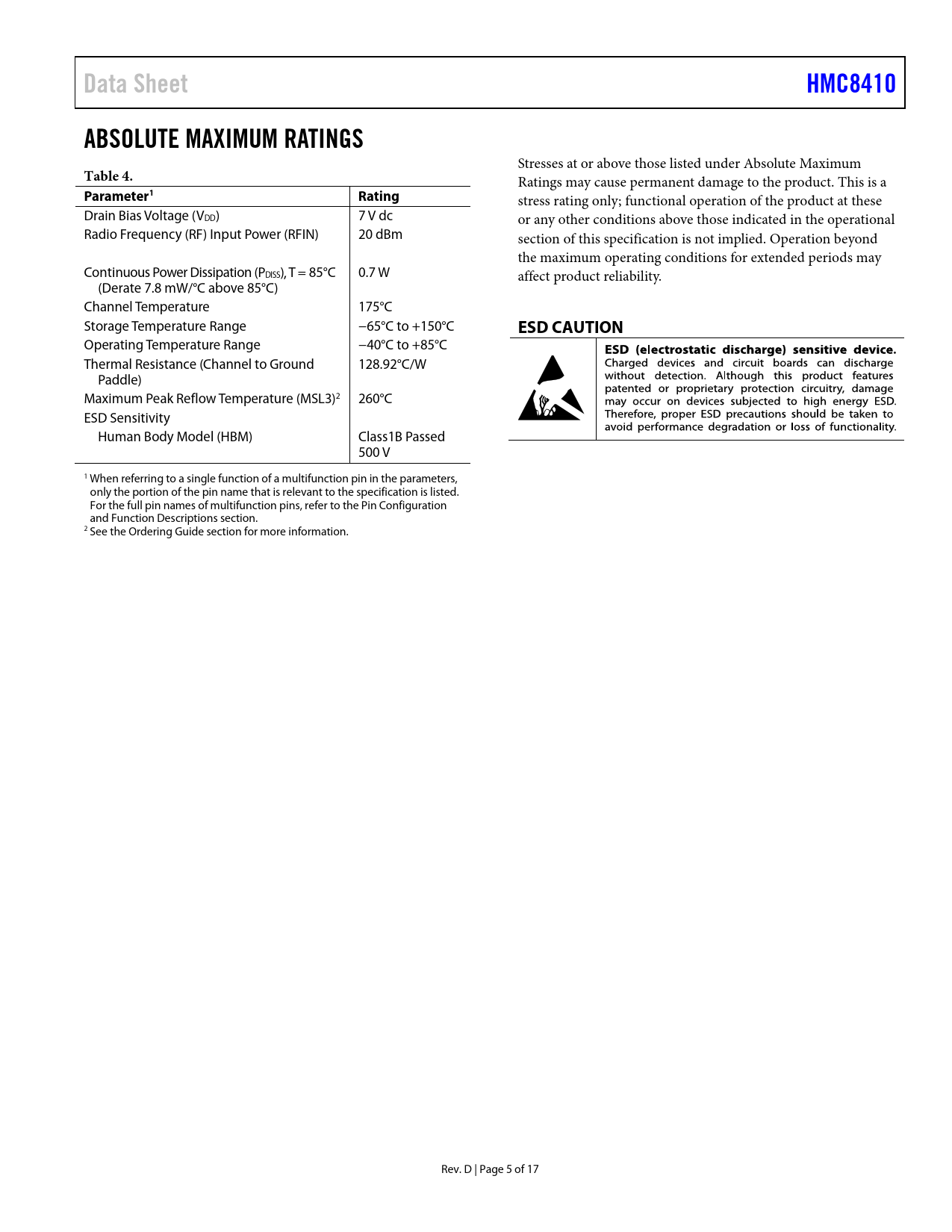

Data Sheet HMC8410 ABSOLUTE MAXIMUM RATINGS
Stresses at or above those listed under Absolute Maximum
Table 4.
Ratings may cause permanent damage to the product. This is a
Parameter1 Rating
stress rating only; functional operation of the product at these Drain Bias Voltage (VDD) 7 V dc or any other conditions above those indicated in the operational Radio Frequency (RF) Input Power (RFIN) 20 dBm section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may Continuous Power Dissipation (PDISS), T = 85°C 0.7 W affect product reliability. (Derate 7.8 mW/°C above 85°C) Channel Temperature 175°C Storage Temperature Range −65°C to +150°C
