Datasheet HMC8401 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | DC to 28 GHz, GaAs pHEMT MMIC Low Noise Amplifier |
| Pages / Page | 17 / 3 — Data Sheet. HMC8401. SPECIFICATIONS 0.01 GHz TO 3 GHz FREQUENCY RANGE. … |
| Revision | B |
| File Format / Size | PDF / 363 Kb |
| Document Language | English |
Data Sheet. HMC8401. SPECIFICATIONS 0.01 GHz TO 3 GHz FREQUENCY RANGE. Table 1. Parameter. Symbol. Test Conditions/Comments. Min. Typ
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 5

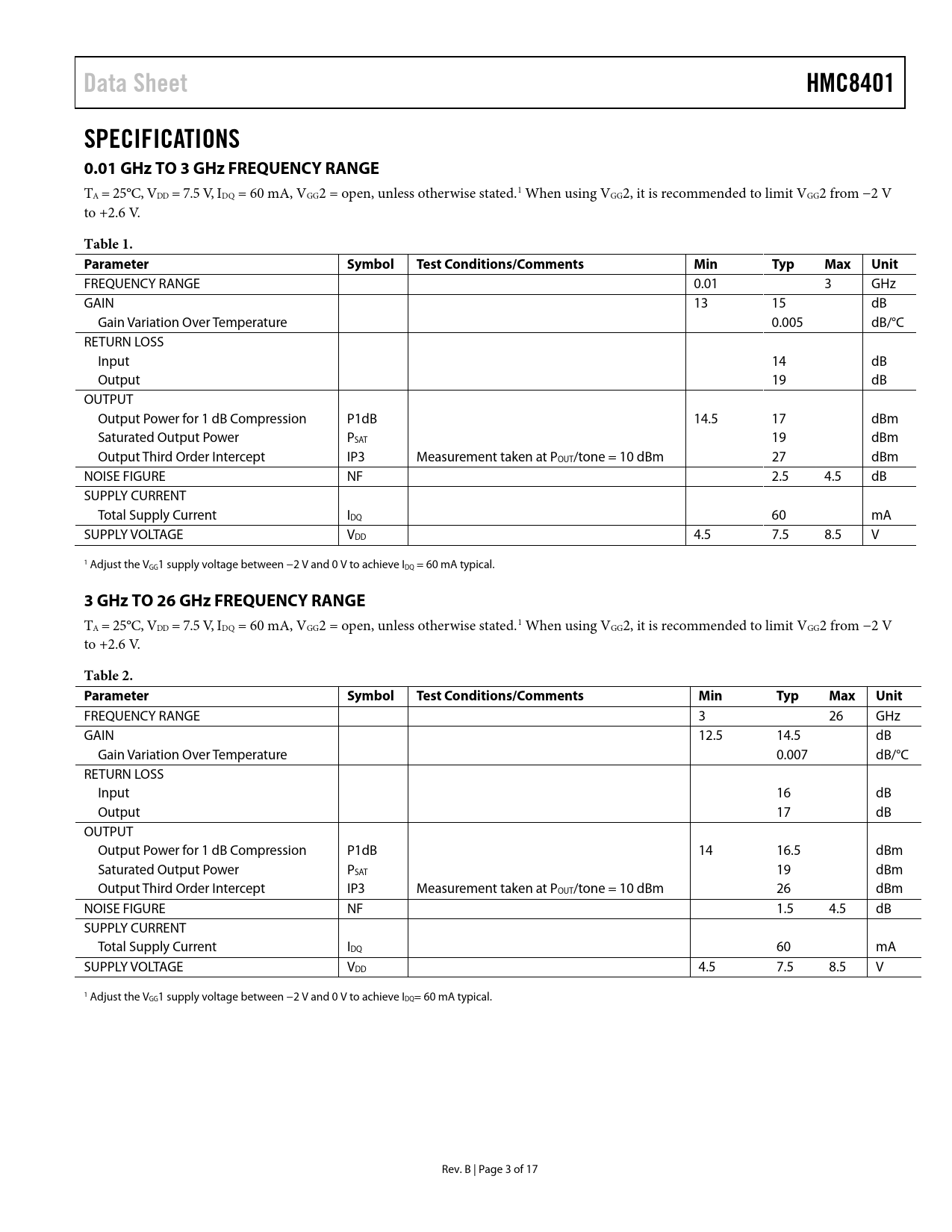

Data Sheet HMC8401 SPECIFICATIONS 0.01 GHz TO 3 GHz FREQUENCY RANGE
TA = 25°C, VDD = 7.5 V, IDQ = 60 mA, VGG2 = open, unless otherwise stated.1 When using VGG2, it is recommended to limit VGG2 from −2 V to +2.6 V.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 0.01 3 GHz GAIN 13 15 dB Gain Variation Over Temperature 0.005 dB/°C RETURN LOSS Input 14 dB Output 19 dB OUTPUT Output Power for 1 dB Compression P1dB 14.5 17 dBm Saturated Output Power PSAT 19 dBm Output Third Order Intercept IP3 Measurement taken at POUT/tone = 10 dBm 27 dBm NOISE FIGURE NF 2.5 4.5 dB SUPPLY CURRENT Total Supply Current IDQ 60 mA SUPPLY VOLTAGE VDD 4.5 7.5 8.5 V 1 Adjust the VGG1 supply voltage between −2 V and 0 V to achieve IDQ = 60 mA typical.
