Datasheet HMC1127 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | GaAs, pHEMT, MMIC, High Gain Power Amplifier, 2 GHz to 50 GHz |
| Pages / Page | 16 / 3 — Data Sheet. HMC1127. SPECIFICATIONS 2 GHz TO 8 GHz FREQUENCY RANGE. Table … |
| Revision | B |
| File Format / Size | PDF / 391 Kb |
| Document Language | English |

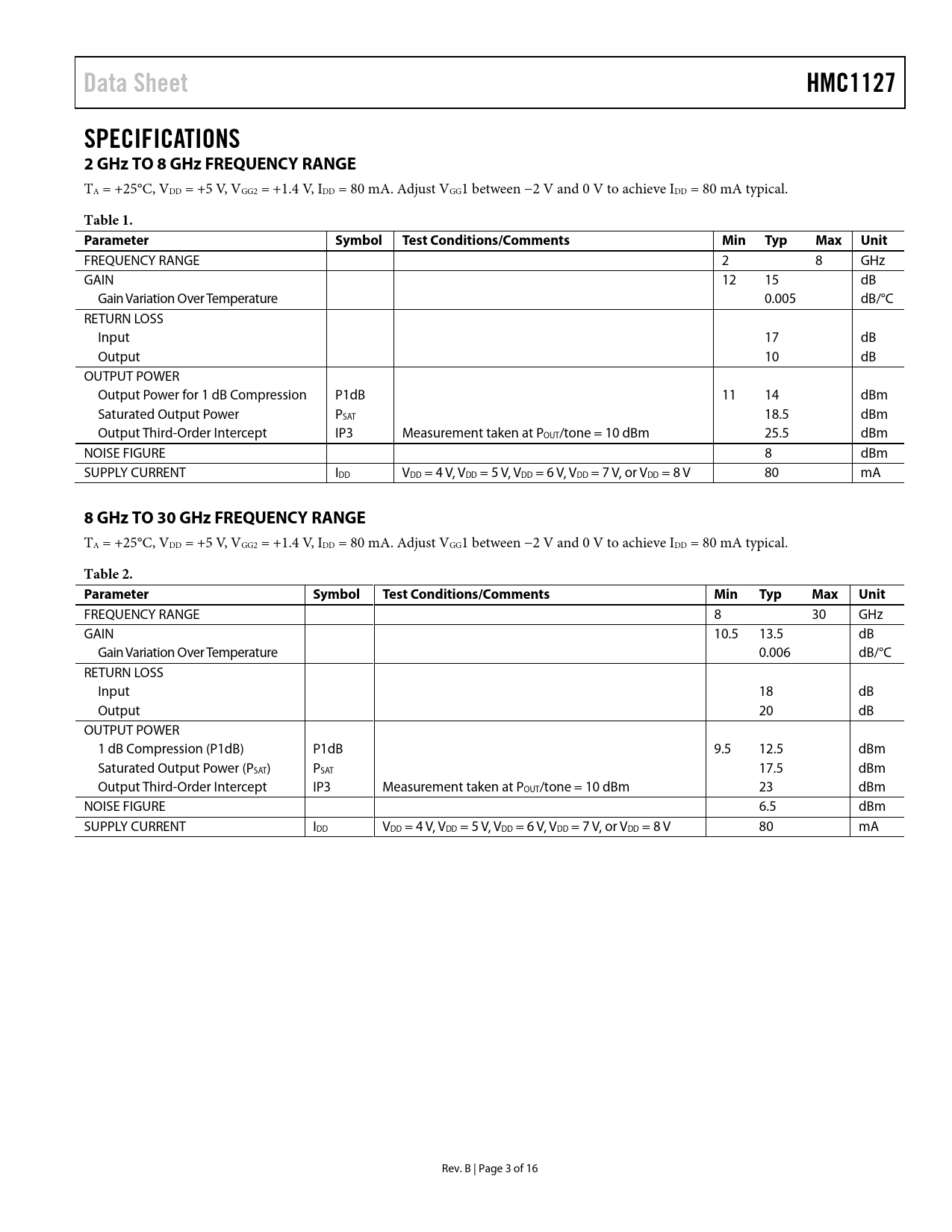

Data Sheet. HMC1127. SPECIFICATIONS 2 GHz TO 8 GHz FREQUENCY RANGE. Table 1. Parameter. Symbol. Test Conditions/Comments. Min Typ
Model Line for this Datasheet
Text Version of Document
Data Sheet HMC1127 SPECIFICATIONS 2 GHz TO 8 GHz FREQUENCY RANGE
TA = +25°C, VDD = +5 V, VGG2 = +1.4 V, IDD = 80 mA. Adjust VGG1 between −2 V and 0 V to achieve IDD = 80 mA typical.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 2 8 GHz GAIN 12 15 dB Gain Variation Over Temperature 0.005 dB/°C RETURN LOSS Input 17 dB Output 10 dB OUTPUT POWER Output Power for 1 dB Compression P1dB 11 14 dBm Saturated Output Power PSAT 18.5 dBm Output Third-Order Intercept IP3 Measurement taken at POUT/tone = 10 dBm 25.5 dBm NOISE FIGURE 8 dBm SUPPLY CURRENT IDD VDD = 4 V, VDD = 5 V, VDD = 6 V, VDD = 7 V, or VDD = 8 V 80 mA
