| Manufacturer | Analog Devices |
| Description | GaAs, pHEMT, MMIC, High Gain Power Amplifier, 2 GHz to 50 GHz |
| Pages / Page | 16 / 4 — HMC1127. Data Sheet. 30 GHz TO 40 GHz FREQUENCY RANGE. Table 3. … |
| Revision | B |
| File Format / Size | PDF / 391 Kb |
| Document Language | English |

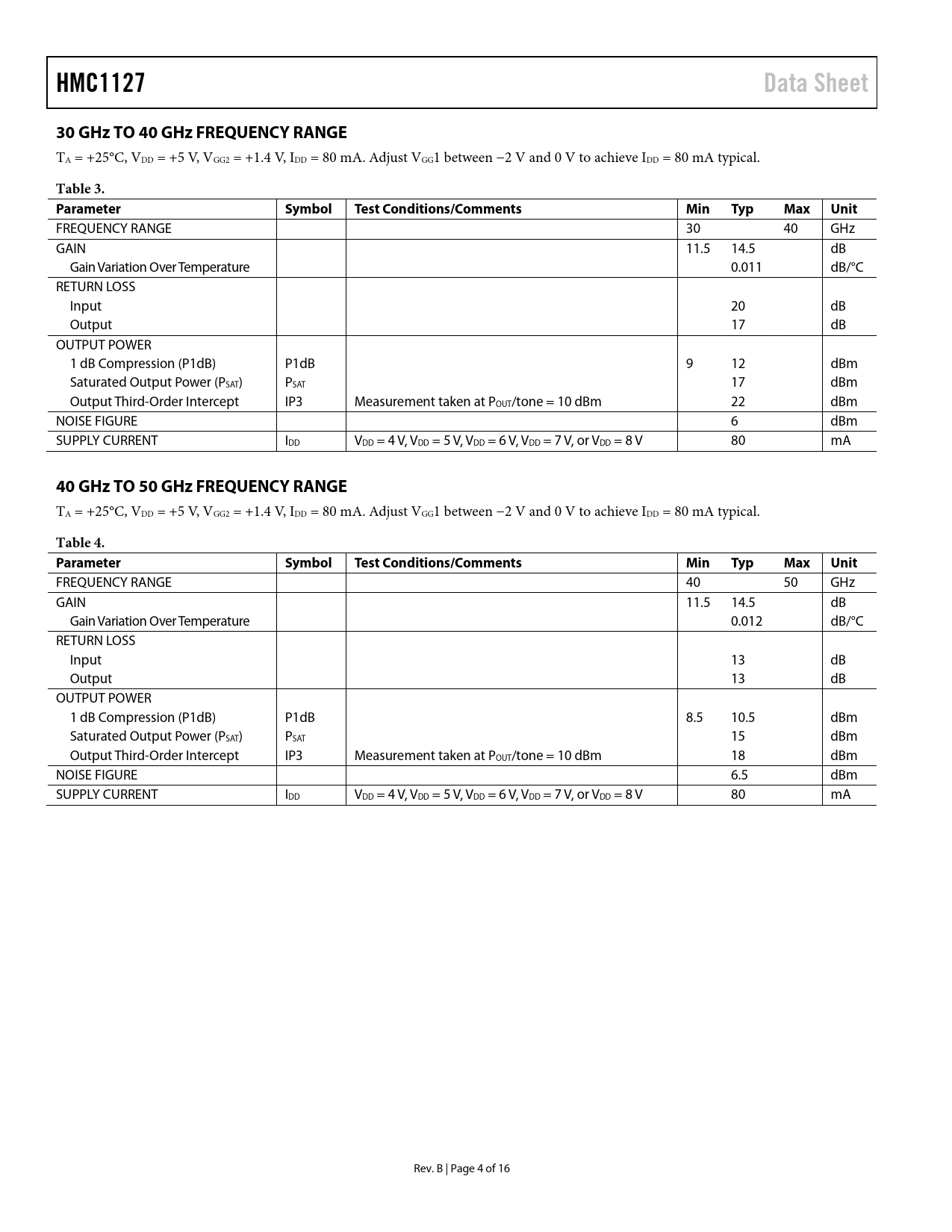

HMC1127. Data Sheet. 30 GHz TO 40 GHz FREQUENCY RANGE. Table 3. Parameter. Symbol. Test Conditions/Comments. Min. Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
HMC1127 Data Sheet 30 GHz TO 40 GHz FREQUENCY RANGE
TA = +25°C, VDD = +5 V, VGG2 = +1.4 V, IDD = 80 mA. Adjust VGG1 between −2 V and 0 V to achieve IDD = 80 mA typical.
Table 3. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 30 40 GHz GAIN 11.5 14.5 dB Gain Variation Over Temperature 0.011 dB/°C RETURN LOSS Input 20 dB Output 17 dB OUTPUT POWER 1 dB Compression (P1dB) P1dB 9 12 dBm Saturated Output Power (PSAT) PSAT 17 dBm Output Third-Order Intercept IP3 Measurement taken at POUT/tone = 10 dBm 22 dBm NOISE FIGURE 6 dBm SUPPLY CURRENT IDD VDD = 4 V, VDD = 5 V, VDD = 6 V, VDD = 7 V, or VDD = 8 V 80 mA
