HMC565LC5
v04.0118

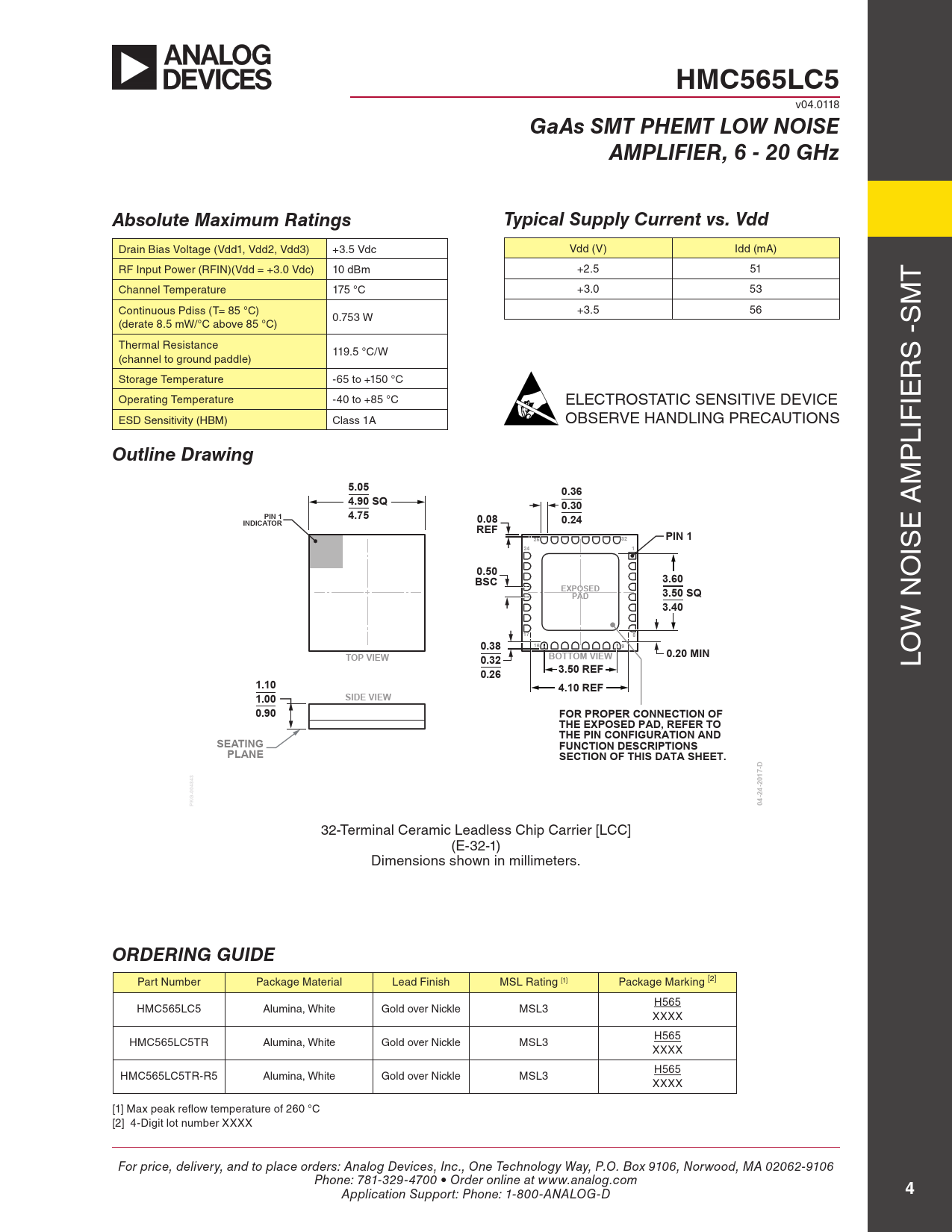

GaAs SMT PHEMT LOW NOISE AMPLIFIER, 6 - 20 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd1, Vdd2, Vdd3) +3.5 Vdc Vdd (V) Idd (mA) RF Input Power (RFIN)(Vdd = +3.0 Vdc) 10 dBm +2.5 51 T Channel Temperature 175 °C +3.0 53 M Continuous Pdiss (T= 85 °C) +3.5 56 0.753 W (derate 8.5 mW/°C above 85 °C) S - Thermal Resistance 119.5 °C/W (channel to ground paddle) S Storage Temperature -65 to +150 °C R Operating Temperature -40 to +8
32-T
5 °C ELEC
erminal Ceramic Leadless Chip Carrier [LCC]
TROSTATIC SENSITIVE DEVICE IE
(E-32-1)
ESD Sensitivity (HBM) Class 1A
Dimensions shown in millimeters.
OBSERVE HANDLING PRECAUTIONS LIF
Outline Drawing
P M
5.05 0.36 4.90 SQ 0.30
A
PIN 1 4.75 INDICATOR 0.08 0.24 REF
E
25 32 PIN 1 24 1
IS
0.50
O
BSC 3.60 EXPOSED PAD 3.50 SQ
N
3.40 17 8
W
16 9 0.38 TOP VIEW BOTTOM VIEW 0.20 MIN 0.32
LO
3.50 REF 0.26 1.10 4.10 REF 1.00 SIDE VIEW 0.90 FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND SEATING FUNCTION DESCRIPTIONS PLANE SECTION OF THIS DATA SHEET. PKG-004843 04-24-2017-D
32-Terminal Ceramic Leadless Chip Carrier [LCC] (E-32-1) Dimensions shown in mil imeters.
ORDERING GUIDE
Part Number Package Material Lead Finish MSL Rating [1] Package Marking [2] H565 HMC565LC5 Alumina, White Gold over Nickle MSL3 XXXX H565 HMC565LC5TR Alumina, White Gold over Nickle MSL3 XXXX H565 HMC565LC5TR-R5 Alumina, White Gold over Nickle MSL3 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
