Datasheet HMC382LP3, 382LP3E (Analog Devices) - 4
| Manufacturer | Analog Devices |
| Description | GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 1.7 - 2.2 GHz |
| Pages / Page | 8 / 4 — HMC382LP3 / 382LP3E. GaAs PHEMT MMIC. LOW NOISE AMPLIFIER, 1.7 - 2.2 GHz. … |
| File Format / Size | PDF / 935 Kb |
| Document Language | English |

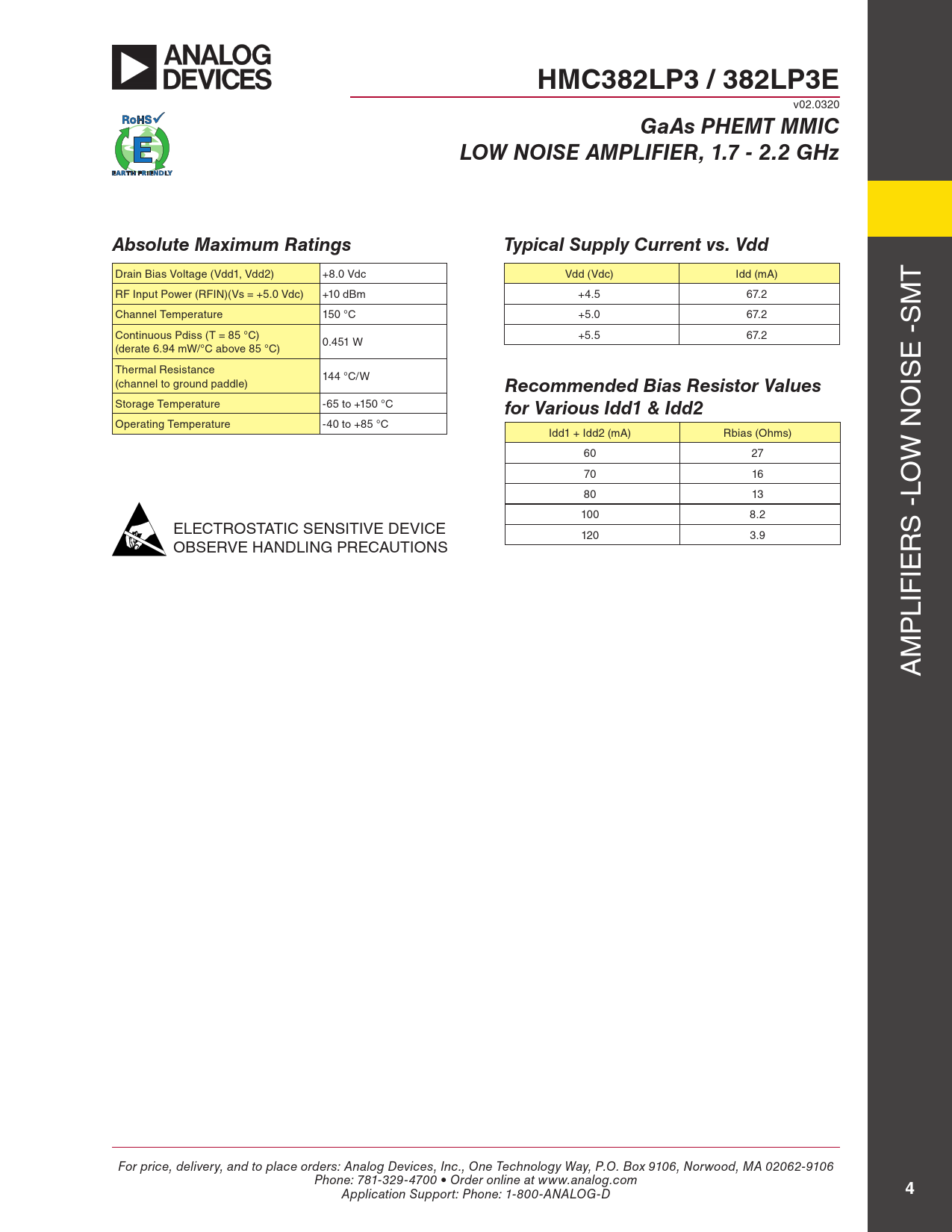

HMC382LP3 / 382LP3E. GaAs PHEMT MMIC. LOW NOISE AMPLIFIER, 1.7 - 2.2 GHz. Absolute Maximum Ratings
Model Line for this Datasheet
Text Version of Document
HMC382LP3 / 382LP3E
v02.0320
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 1.7 - 2.2 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd1, Vdd2) +8.0 Vdc Vdd (Vdc) Idd (mA) T RF Input Power (RFIN)(Vs = +5.0 Vdc) +10 dBm +4.5 67.2 M Channel Temperature 150 °C +5.0 67.2 S Continuous Pdiss (T = 85 °C) +5.5 67.2 0.451 W - (derate 6.94 mW/°C above 85 °C) E Thermal Resistance 144 °C/W (channel to ground paddle) IS
Recommended Bias Resistor Values
Storage Temperature -65 to +150 °C O
for Various Idd1 & Idd2
Operating Temperature -40 to +85 °C Idd1 + Idd2 (mA) Rbias (Ohms) N 60 27 W 70 16 80 13 LO 100 8.2 - ELECTROSTATIC SENSITIVE DEVICE 120 3.9 S OBSERVE HANDLING PRECAUTIONS R IE LIF P M A For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
