Datasheet HMC460 (Analog Devices)
| Manufacturer | Analog Devices |
| Description | GaAs PHEMT MMIC LOW NOISE AMPLIFIER, DC - 20 GHz |
| Pages / Page | 8 / 1 — HMC460. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, DC - 20 GHz. Typical … |
| File Format / Size | PDF / 549 Kb |
| Document Language | English |

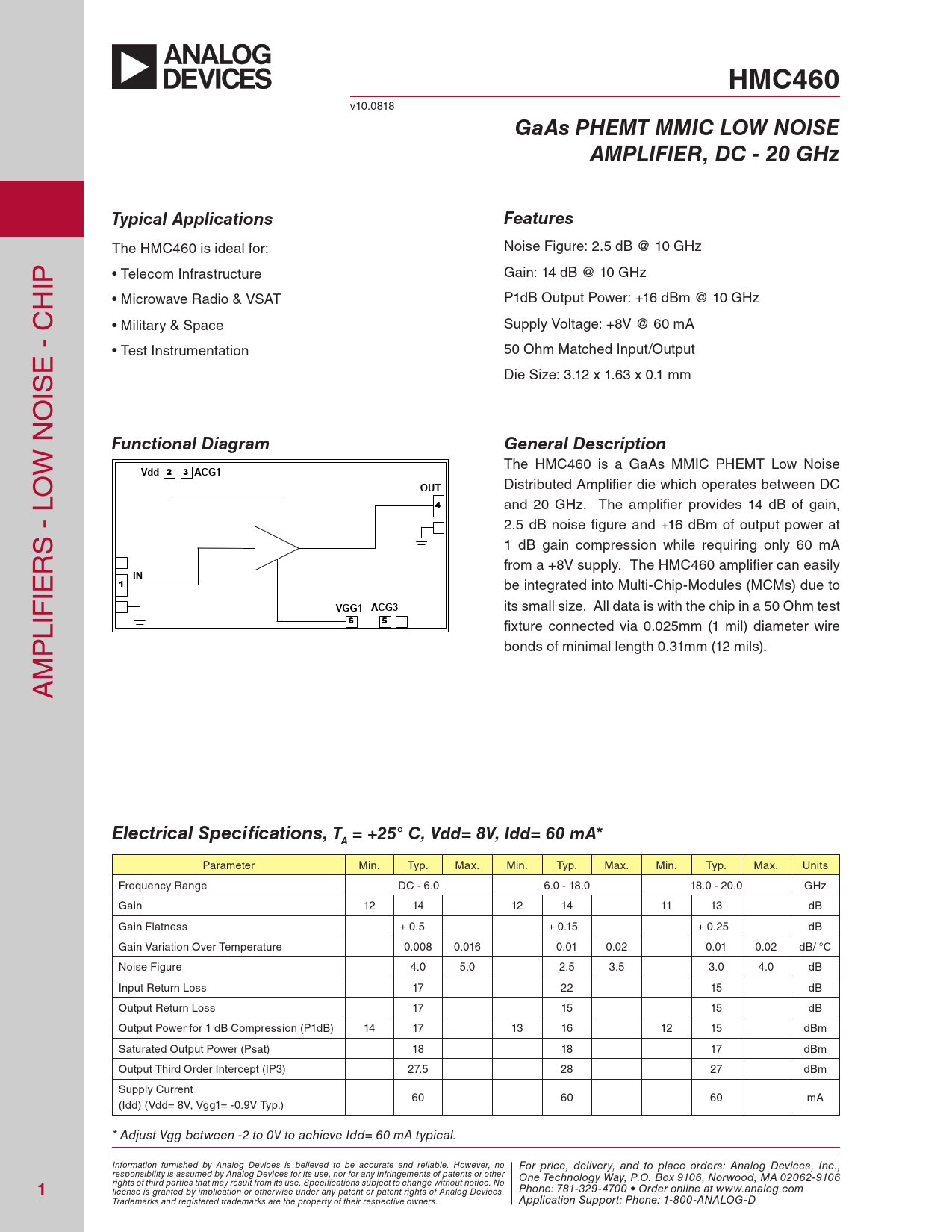

HMC460. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, DC - 20 GHz. Typical Applications. Features. Functional Diagram. General Description
Model Line for this Datasheet
Text Version of Document
HMC460
v10.0818
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, DC - 20 GHz Typical Applications Features
The HMC460 is ideal for: Noise Figure: 2.5 dB @ 10 GHz IP • Telecom Infrastructure Gain: 14 dB @ 10 GHz H • Microwave Radio & VSAT P1dB Output Power: +16 dBm @ 10 GHz • Military & Space Supply Voltage: +8V @ 60 mA E - C • Test Instrumentation 50 Ohm Matched Input/Output IS Die Size: 3.12 x 1.63 x 0.1 mm O
Functional Diagram General Description
W N The HMC460 is a GaAs MMIC PHEMT Low Noise O
Vdd 2 3 ACG1
Distributed Amplifier die which operates between DC
OUT 4
and 20 GHz. The amplifier provides 14 dB of gain, 2.5 dB noise figure and +16 dBm of output power at S - L E S T CODE 1 dB gain compression while requiring only 60 mA R from a +8V supply. The HMC460 amplifier can easily IE
IN 1
be integrated into Multi-Chip-Modules (MCMs) due to
VGG1 ACG3
its small size. All data is with the chip in a 50 Ohm test LIF E S T CODE
6 5
fixture connected via 0.025mm (1 mil) diameter wire P bonds of minimal length 0.31mm (12 mils). M A
Electrical Specifications, T = +25° C, Vdd= 8V, Idd= 60 mA* A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range DC - 6.0 6.0 - 18.0 18.0 - 20.0 GHz Gain 12 14 12 14 11 13 dB Gain Flatness ± 0.5 ± 0.15 ± 0.25 dB Gain Variation Over Temperature 0.008 0.016 0.01 0.02 0.01 0.02 dB/ °C Noise Figure 4.0 5.0 2.5 3.5 3.0 4.0 dB Input Return Loss 17 22 15 dB Output Return Loss 17 15 15 dB Output Power for 1 dB Compression (P1dB) 14 17 13 16 12 15 dBm Saturated Output Power (Psat) 18 18 17 dBm Output Third Order Intercept (IP3) 27.5 28 27 dBm Supply Current 60 60 60 mA (Idd) (Vdd= 8V, Vgg1= -0.9V Typ.) * Adjust Vgg between -2 to 0V to achieve Idd= 60 mA typical. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
