HMC373LP3 / 373LP3E. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER w/ BYPASS MODE, 700 - 1000 MHz. Evaluation Board Circuit
Model Line for this Datasheet
Text Version of Document
HMC373LP3 / 373LP3E
v04.1119
GaAs PHEMT MMIC LOW NOISE AMPLIFIER w/ BYPASS MODE, 700 - 1000 MHz Evaluation Board Circuit
T M S - E IS O N W LO - S R IE

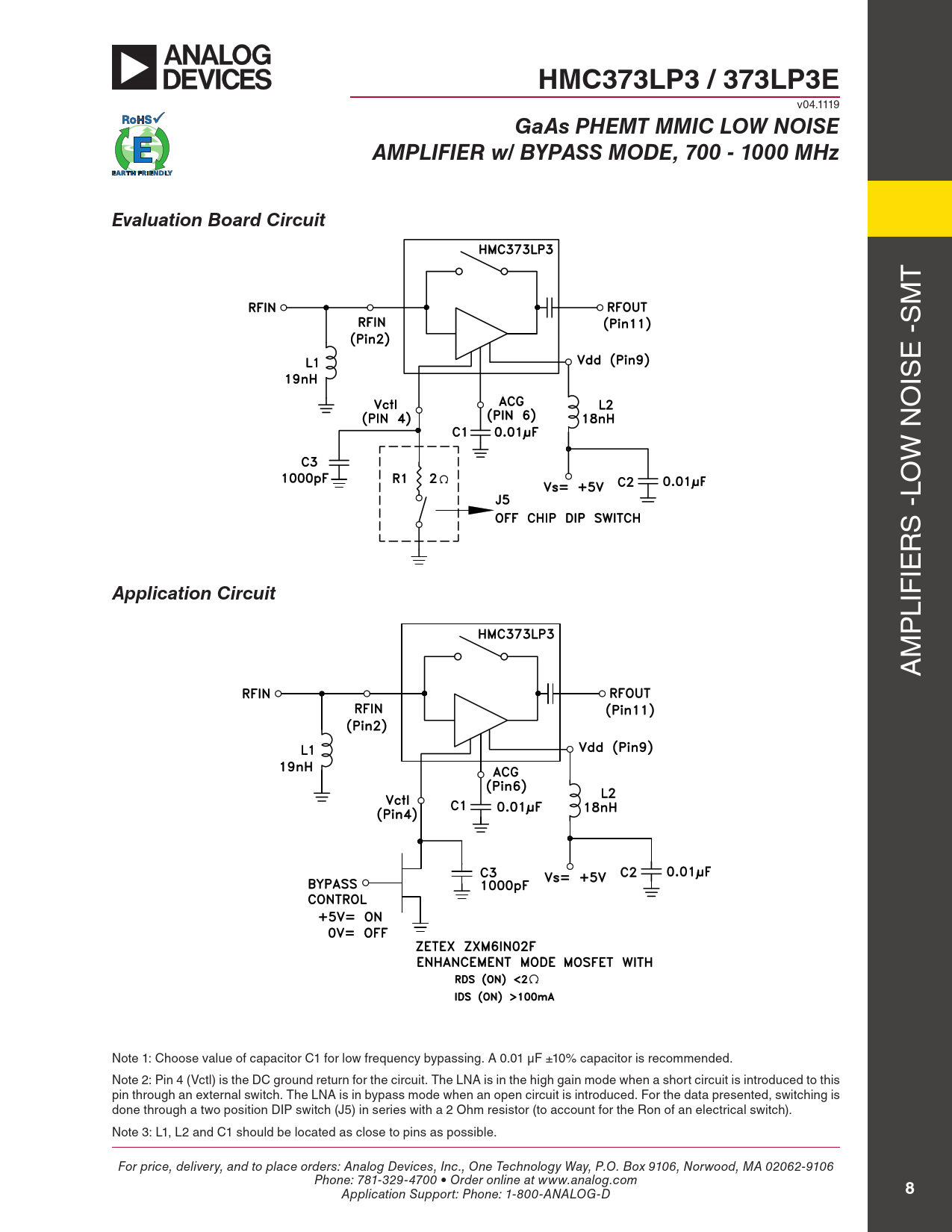

Application Circuit
LIF P M A Note 1: Choose value of capacitor C1 for low frequency bypassing. A 0.01 µF ±10% capacitor is recommended. Note 2: Pin 4 (Vctl) is the DC ground return for the circuit. The LNA is in the high gain mode when a short circuit is introduced to this pin through an external switch. The LNA is in bypass mode when an open circuit is introduced. For the data presented, switching is done through a two position DIP switch (J5) in series with a 2 Ohm resistor (to account for the Ron of an electrical switch). Note 3: L1, L2 and C1 should be located as close to pins as possible. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
8
