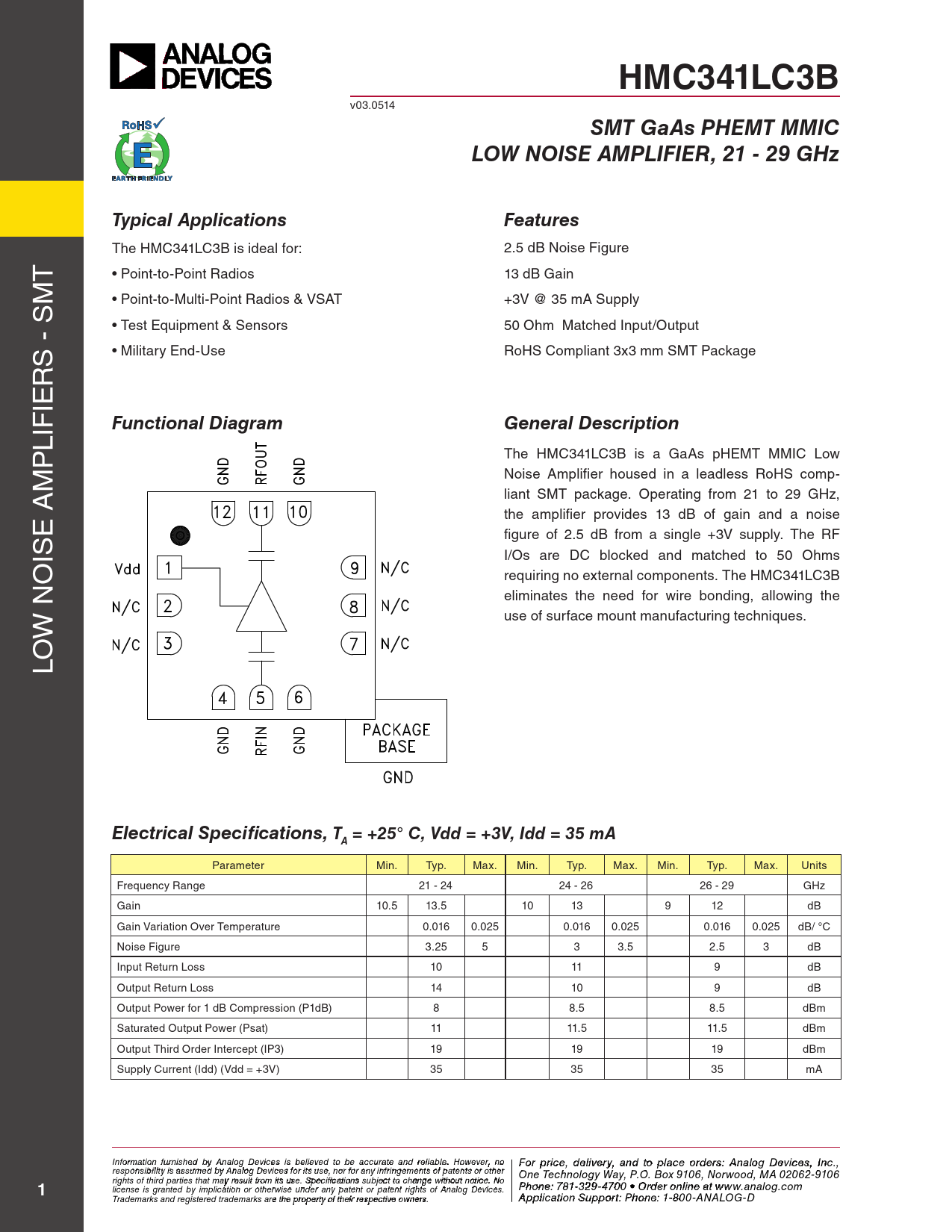

HMC341LC3B. SMT GaAs PHEMT MMIC. LOW NOISE AMPLIFIER, 21 - 29 GHz. Typical Applications. Features. Functional Diagram
Model Line for this Datasheet
Text Version of Document
HMC341LC3B
v03.0514
SMT GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 21 - 29 GHz Typical Applications Features
The HMC341LC3B is ideal for: 2.5 dB Noise Figure T • Point-to-Point Radios 13 dB Gain M • Point-to-Multi-Point Radios & VSAT +3V @ 35 mA Supply • Test Equipment & Sensors 50 Ohm Matched Input/Output S - S • Military End-Use RoHS Compliant 3x3 mm SMT Package R IE
Functional Diagram General Description
LIF P The HMC341LC3B is a GaAs pHEMT MMIC Low M Noise Amplifier housed in a leadless RoHS comp- liant SMT package. Operating from 21 to 29 GHz, E A the amplifier provides 13 dB of gain and a noise figure of 2.5 dB from a single +3V supply. The RF IS I/Os are DC blocked and matched to 50 Ohms O requiring no external components. The HMC341LC3B eliminates the need for wire bonding, al owing the W N use of surface mount manufacturing techniques. LO
Electrical Specifications, T = +25° C, Vdd = +3V, Idd = 35 mA A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 21 - 24 24 - 26 26 - 29 GHz Gain 10.5 13.5 10 13 9 12 dB Gain Variation Over Temperature 0.016 0.025 0.016 0.025 0.016 0.025 dB/ °C Noise Figure 3.25 5 3 3.5 2.5 3 dB Input Return Loss 10 11 9 dB Output Return Loss 14 10 9 dB Output Power for 1 dB Compression (P1dB) 8 8.5 8.5 dBm Saturated Output Power (Psat) 11 11.5 11.5 dBm Output Third Order Intercept (IP3) 19 19 19 dBm Supply Current (Idd) (Vdd = +3V) 35 35 35 mA Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
