Datasheet HMC1144 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | 35 GHz to 70 GHz, GaAs, pHEMT, MMIC, Medium Power Amplifier |
| Pages / Page | 16 / 6 — HMC1144. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VGG1A. … |
| Revision | D |
| File Format / Size | PDF / 351 Kb |
| Document Language | English |

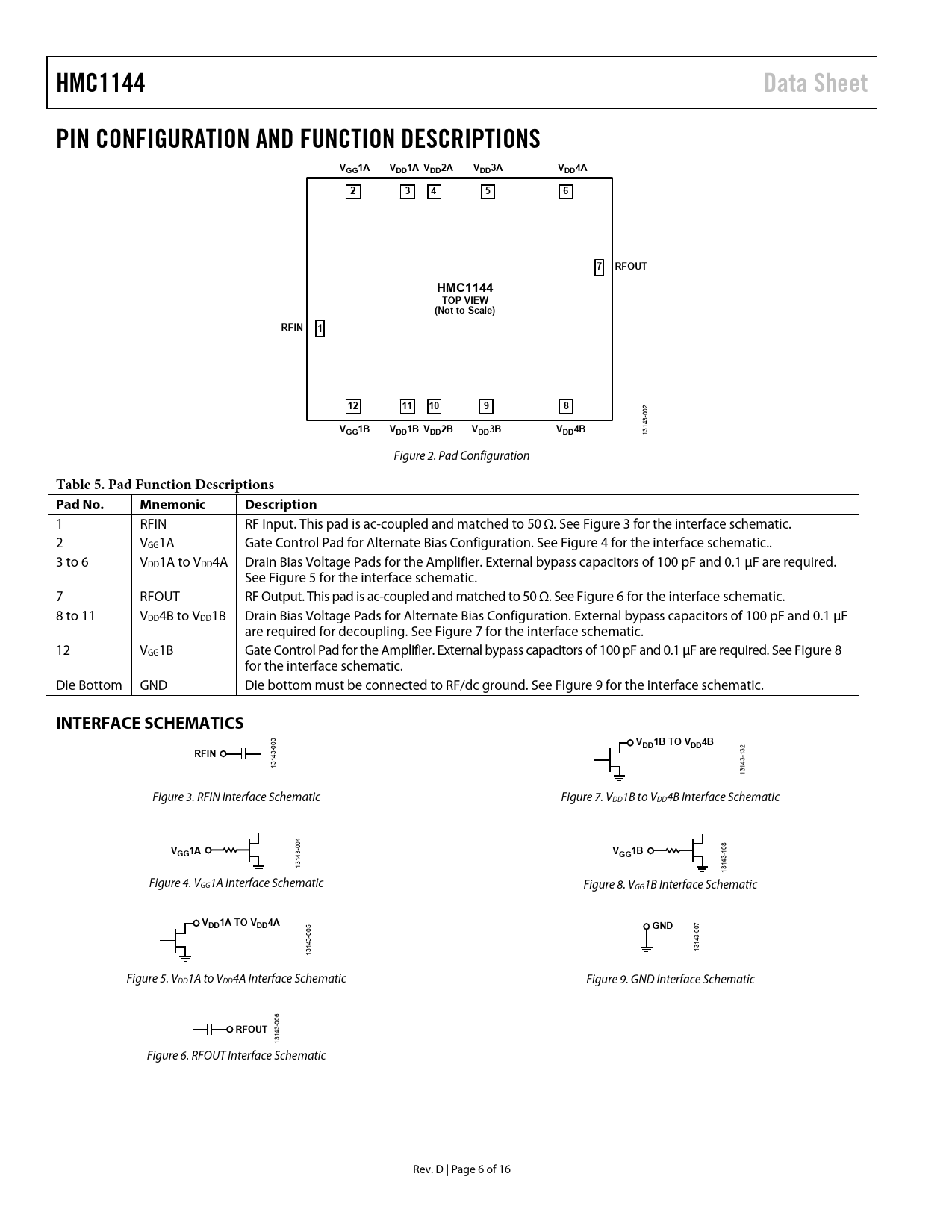

HMC1144. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. VGG1A. VDD1A VDD2A. VDD3A. VDD4A. RFOUT. TOP VIEW. (Not to Scale). RFIN
Model Line for this Datasheet
Text Version of Document
link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 link to page 6 link to page 6
HMC1144 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS VGG1A VDD1A VDD2A VDD3A VDD4A 2 3 4 5 6 7 RFOUT HMC1144 TOP VIEW (Not to Scale) RFIN 1 12 11 10 9 8
-002
VGG1B VDD1B VDD2B VDD3B VDD4B
13143 Figure 2. Pad Configuration
Table 5. Pad Function Descriptions Pad No. Mnemonic Description
1 RFIN RF Input. This pad is ac-coupled and matched to 50 Ω. See Figure 3 for the interface schematic. 2 VGG1A Gate Control Pad for Alternate Bias Configuration. See Figure 4 for the interface schematic.. 3 to 6 VDD1A to VDD4A Drain Bias Voltage Pads for the Amplifier. External bypass capacitors of 100 pF and 0.1 μF are required. See Figure 5 for the interface schematic. 7 RFOUT RF Output. This pad is ac-coupled and matched to 50 Ω. See Figure 6 for the interface schematic. 8 to 11 VDD4B to VDD1B Drain Bias Voltage Pads for Alternate Bias Configuration. External bypass capacitors of 100 pF and 0.1 μF are required for decoupling. See Figure 7 for the interface schematic. 12 VGG1B Gate Control Pad for the Amplifier. External bypass capacitors of 100 pF and 0.1 μF are required. See Figure 8 for the interface schematic. Die Bottom GND Die bottom must be connected to RF/dc ground. See Figure 9 for the interface schematic.
