Datasheet ADRF5515 (Analog Devices) - 3
| Manufacturer | Analog Devices |
| Description | Dual-Channel, 3.3 GHz to 4.0 GHz, 20 W Receiver Front End |
| Pages / Page | 15 / 3 — Data Sheet. ADRF5515. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. … |
| File Format / Size | PDF / 413 Kb |
| Document Language | English |

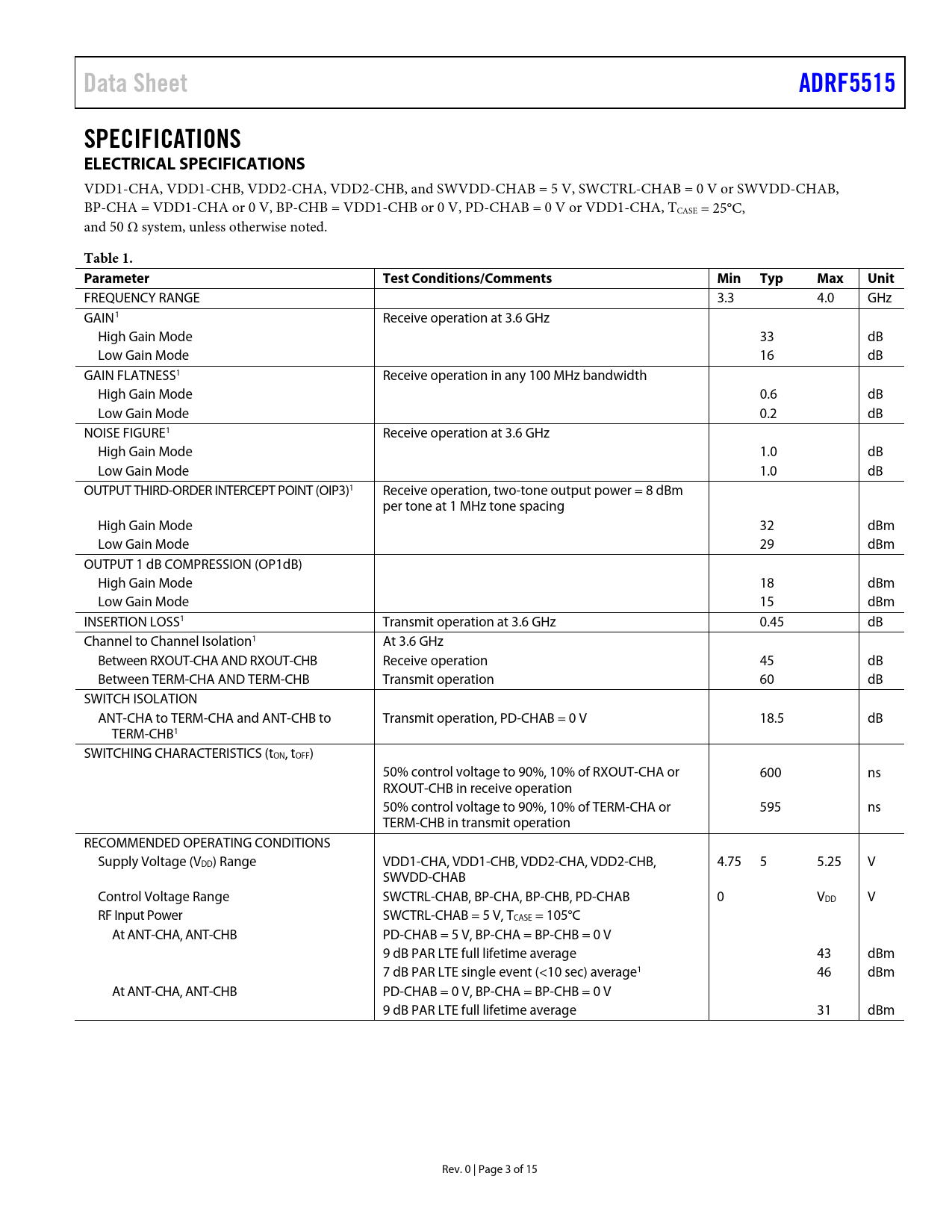

Data Sheet. ADRF5515. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1. Parameter. Test Conditions/Comments. Min Typ. Max. Unit
Model Line for this Datasheet
Text Version of Document
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4
Data Sheet ADRF5515 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
VDD1-CHA, VDD1-CHB, VDD2-CHA, VDD2-CHB, and SWVDD-CHAB = 5 V, SWCTRL-CHAB = 0 V or SWVDD-CHAB, BP-CHA = VDD1-CHA or 0 V, BP-CHB = VDD1-CHB or 0 V, PD-CHAB = 0 V or VDD1-CHA, TCASE = 25°C, and 50 Ω system, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 3.3 4.0 GHz GAIN1 Receive operation at 3.6 GHz High Gain Mode 33 dB Low Gain Mode 16 dB GAIN FLATNESS1 Receive operation in any 100 MHz bandwidth High Gain Mode 0.6 dB Low Gain Mode 0.2 dB NOISE FIGURE1 Receive operation at 3.6 GHz High Gain Mode 1.0 dB Low Gain Mode 1.0 dB OUTPUT THIRD-ORDER INTERCEPT POINT (OIP3)1 Receive operation, two-tone output power = 8 dBm per tone at 1 MHz tone spacing High Gain Mode 32 dBm Low Gain Mode 29 dBm OUTPUT 1 dB COMPRESSION (OP1dB) High Gain Mode 18 dBm Low Gain Mode 15 dBm INSERTION LOSS1 Transmit operation at 3.6 GHz 0.45 dB Channel to Channel Isolation1 At 3.6 GHz Between RXOUT-CHA AND RXOUT-CHB Receive operation 45 dB Between TERM-CHA AND TERM-CHB Transmit operation 60 dB SWITCH ISOLATION ANT-CHA to TERM-CHA and ANT-CHB to Transmit operation, PD-CHAB = 0 V 18.5 dB TERM-CHB1 SWITCHING CHARACTERISTICS (tON, tOFF) 50% control voltage to 90%, 10% of RXOUT-CHA or 600 ns RXOUT-CHB in receive operation 50% control voltage to 90%, 10% of TERM-CHA or 595 ns TERM-CHB in transmit operation RECOMMENDED OPERATING CONDITIONS Supply Voltage (VDD) Range VDD1-CHA, VDD1-CHB, VDD2-CHA, VDD2-CHB, 4.75 5 5.25 V SWVDD-CHAB Control Voltage Range SWCTRL-CHAB, BP-CHA, BP-CHB, PD-CHAB 0 VDD V RF Input Power SWCTRL-CHAB = 5 V, TCASE = 105°C At ANT-CHA, ANT-CHB PD-CHAB = 5 V, BP-CHA = BP-CHB = 0 V 9 dB PAR LTE full lifetime average 43 dBm 7 dB PAR LTE single event (<10 sec) average1 46 dBm At ANT-CHA, ANT-CHB PD-CHAB = 0 V, BP-CHA = BP-CHB = 0 V 9 dB PAR LTE full lifetime average 31 dBm Rev. 0 | Page 3 of 15 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADRF5515 ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS RECEIVE OPERATION, HIGH GAIN MODE RECEIVE OPERATION, LOW GAIN MODE TRANSMIT OPERATION THEORY OF OPERATION SIGNAL PATH SELECT Transmit Operation Receive Operation BIASING SEQUENCE APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
Data Sheet ADRF5515 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
VDD1-CHA, VDD1-CHB, VDD2-CHA, VDD2-CHB, and SWVDD-CHAB = 5 V, SWCTRL-CHAB = 0 V or SWVDD-CHAB, BP-CHA = VDD1-CHA or 0 V, BP-CHB = VDD1-CHB or 0 V, PD-CHAB = 0 V or VDD1-CHA, TCASE = 25°C, and 50 Ω system, unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 3.3 4.0 GHz GAIN1 Receive operation at 3.6 GHz High Gain Mode 33 dB Low Gain Mode 16 dB GAIN FLATNESS1 Receive operation in any 100 MHz bandwidth High Gain Mode 0.6 dB Low Gain Mode 0.2 dB NOISE FIGURE1 Receive operation at 3.6 GHz High Gain Mode 1.0 dB Low Gain Mode 1.0 dB OUTPUT THIRD-ORDER INTERCEPT POINT (OIP3)1 Receive operation, two-tone output power = 8 dBm per tone at 1 MHz tone spacing High Gain Mode 32 dBm Low Gain Mode 29 dBm OUTPUT 1 dB COMPRESSION (OP1dB) High Gain Mode 18 dBm Low Gain Mode 15 dBm INSERTION LOSS1 Transmit operation at 3.6 GHz 0.45 dB Channel to Channel Isolation1 At 3.6 GHz Between RXOUT-CHA AND RXOUT-CHB Receive operation 45 dB Between TERM-CHA AND TERM-CHB Transmit operation 60 dB SWITCH ISOLATION ANT-CHA to TERM-CHA and ANT-CHB to Transmit operation, PD-CHAB = 0 V 18.5 dB TERM-CHB1 SWITCHING CHARACTERISTICS (tON, tOFF) 50% control voltage to 90%, 10% of RXOUT-CHA or 600 ns RXOUT-CHB in receive operation 50% control voltage to 90%, 10% of TERM-CHA or 595 ns TERM-CHB in transmit operation RECOMMENDED OPERATING CONDITIONS Supply Voltage (VDD) Range VDD1-CHA, VDD1-CHB, VDD2-CHA, VDD2-CHB, 4.75 5 5.25 V SWVDD-CHAB Control Voltage Range SWCTRL-CHAB, BP-CHA, BP-CHB, PD-CHAB 0 VDD V RF Input Power SWCTRL-CHAB = 5 V, TCASE = 105°C At ANT-CHA, ANT-CHB PD-CHAB = 5 V, BP-CHA = BP-CHB = 0 V 9 dB PAR LTE full lifetime average 43 dBm 7 dB PAR LTE single event (<10 sec) average1 46 dBm At ANT-CHA, ANT-CHB PD-CHAB = 0 V, BP-CHA = BP-CHB = 0 V 9 dB PAR LTE full lifetime average 31 dBm Rev. 0 | Page 3 of 15 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADRF5515 ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS RECEIVE OPERATION, HIGH GAIN MODE RECEIVE OPERATION, LOW GAIN MODE TRANSMIT OPERATION THEORY OF OPERATION SIGNAL PATH SELECT Transmit Operation Receive Operation BIASING SEQUENCE APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
