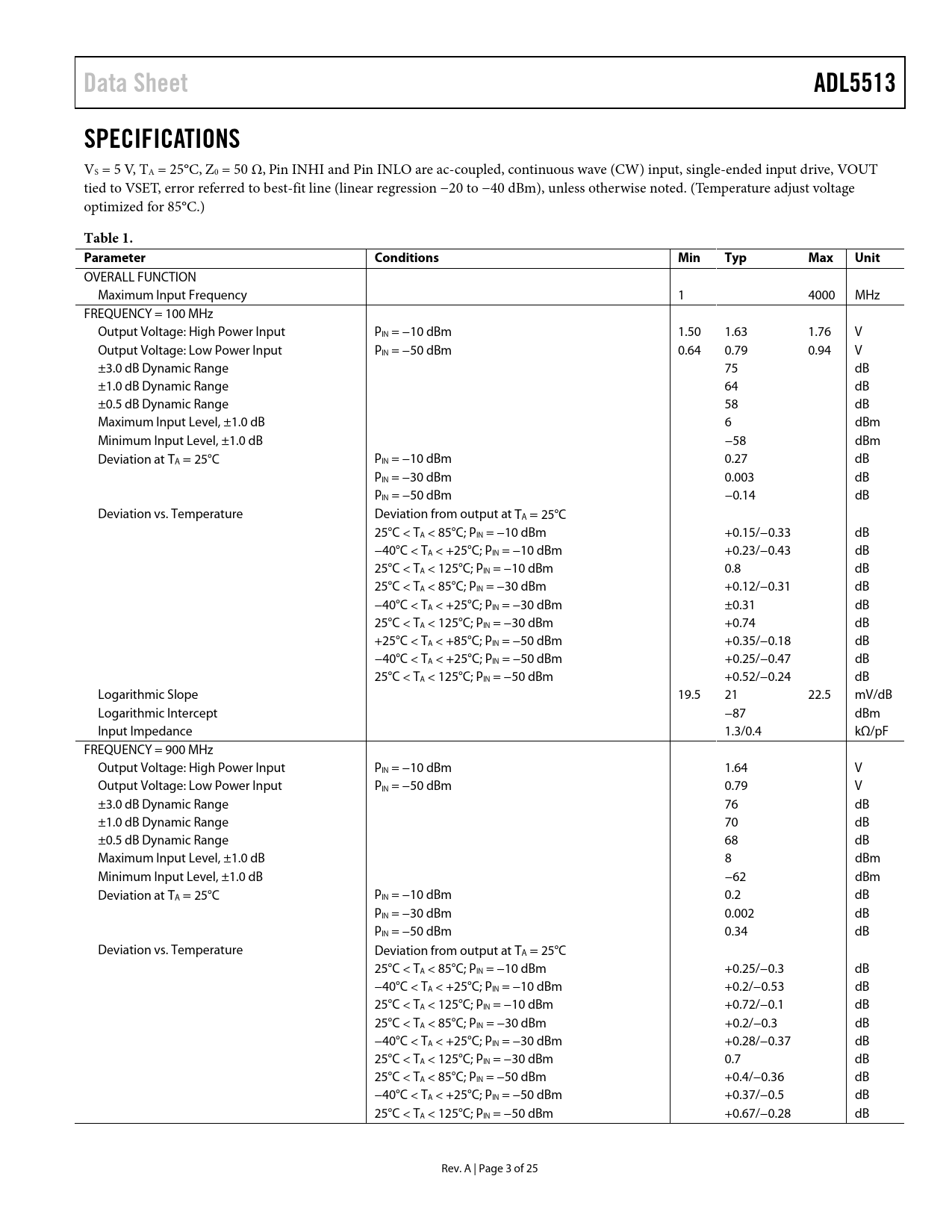

Data Sheet ADL5513 SPECIFICATIONS
VS = 5 V, TA = 25°C, Z0 = 50 Ω, Pin INHI and Pin INLO are ac-coupled, continuous wave (CW) input, single-ended input drive, VOUT tied to VSET, error referred to best-fit line (linear regression −20 to −40 dBm), unless otherwise noted. (Temperature adjust voltage optimized for 85°C.)
Table 1. Parameter Conditions Min Typ Max Unit
OVERALL FUNCTION Maximum Input Frequency 1 4000 MHz FREQUENCY = 100 MHz Output Voltage: High Power Input PIN = −10 dBm 1.50 1.63 1.76 V Output Voltage: Low Power Input PIN = −50 dBm 0.64 0.79 0.94 V ±3.0 dB Dynamic Range 75 dB ±1.0 dB Dynamic Range 64 dB ±0.5 dB Dynamic Range 58 dB Maximum Input Level, ±1.0 dB 6 dBm Minimum Input Level, ±1.0 dB −58 dBm Deviation at TA = 25°C PIN = −10 dBm 0.27 dB PIN = −30 dBm 0.003 dB PIN = −50 dBm −0.14 dB Deviation vs. Temperature Deviation from output at TA = 25°C 25°C < TA < 85°C; PIN = −10 dBm +0.15/−0.33 dB −40°C < TA < +25°C; PIN = −10 dBm +0.23/−0.43 dB 25°C < TA < 125°C; PIN = −10 dBm 0.8 dB 25°C < TA < 85°C; PIN = −30 dBm +0.12/−0.31 dB −40°C < TA < +25°C; PIN = −30 dBm ±0.31 dB 25°C < TA < 125°C; PIN = −30 dBm +0.74 dB +25°C < TA < +85°C; PIN = −50 dBm +0.35/−0.18 dB −40°C < TA < +25°C; PIN = −50 dBm +0.25/−0.47 dB 25°C < TA < 125°C; PIN = −50 dBm +0.52/−0.24 dB Logarithmic Slope 19.5 21 22.5 mV/dB Logarithmic Intercept −87 dBm Input Impedance 1.3/0.4 kΩ/pF FREQUENCY = 900 MHz Output Voltage: High Power Input PIN = −10 dBm 1.64 V Output Voltage: Low Power Input PIN = −50 dBm 0.79 V ±3.0 dB Dynamic Range 76 dB ±1.0 dB Dynamic Range 70 dB ±0.5 dB Dynamic Range 68 dB Maximum Input Level, ±1.0 dB 8 dBm Minimum Input Level, ±1.0 dB −62 dBm Deviation at TA = 25°C PIN = −10 dBm 0.2 dB PIN = −30 dBm 0.002 dB PIN = −50 dBm 0.34 dB Deviation vs. Temperature Deviation from output at TA = 25°C 25°C < TA < 85°C; PIN = −10 dBm +0.25/−0.3 dB −40°C < TA < +25°C; PIN = −10 dBm +0.2/−0.53 dB 25°C < TA < 125°C; PIN = −10 dBm +0.72/−0.1 dB 25°C < TA < 85°C; PIN = −30 dBm +0.2/−0.3 dB −40°C < TA < +25°C; PIN = −30 dBm +0.28/−0.37 dB 25°C < TA < 125°C; PIN = −30 dBm 0.7 dB 25°C < TA < 85°C; PIN = −50 dBm +0.4/−0.36 dB −40°C < TA < +25°C; PIN = −50 dBm +0.37/−0.5 dB 25°C < TA < 125°C; PIN = −50 dBm +0.67/−0.28 dB Rev. A | Page 3 of 25 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Basic Connections Input Signal Coupling Output Filtering Output Interface Setpoint Interface Description of Characterization Error Calculations Adjusting Accuracy Through Choice of Calibration Points Temperature Compensation of Output Voltage Device Calibration Power-Down Functionality Measurement Mode Setting the Output Slope in Measurement Mode Controller Mode Constant Power Operation Increasing the Dynamic Range of the ADL5513 Evaluation Board Outline Dimensions Ordering Guide
