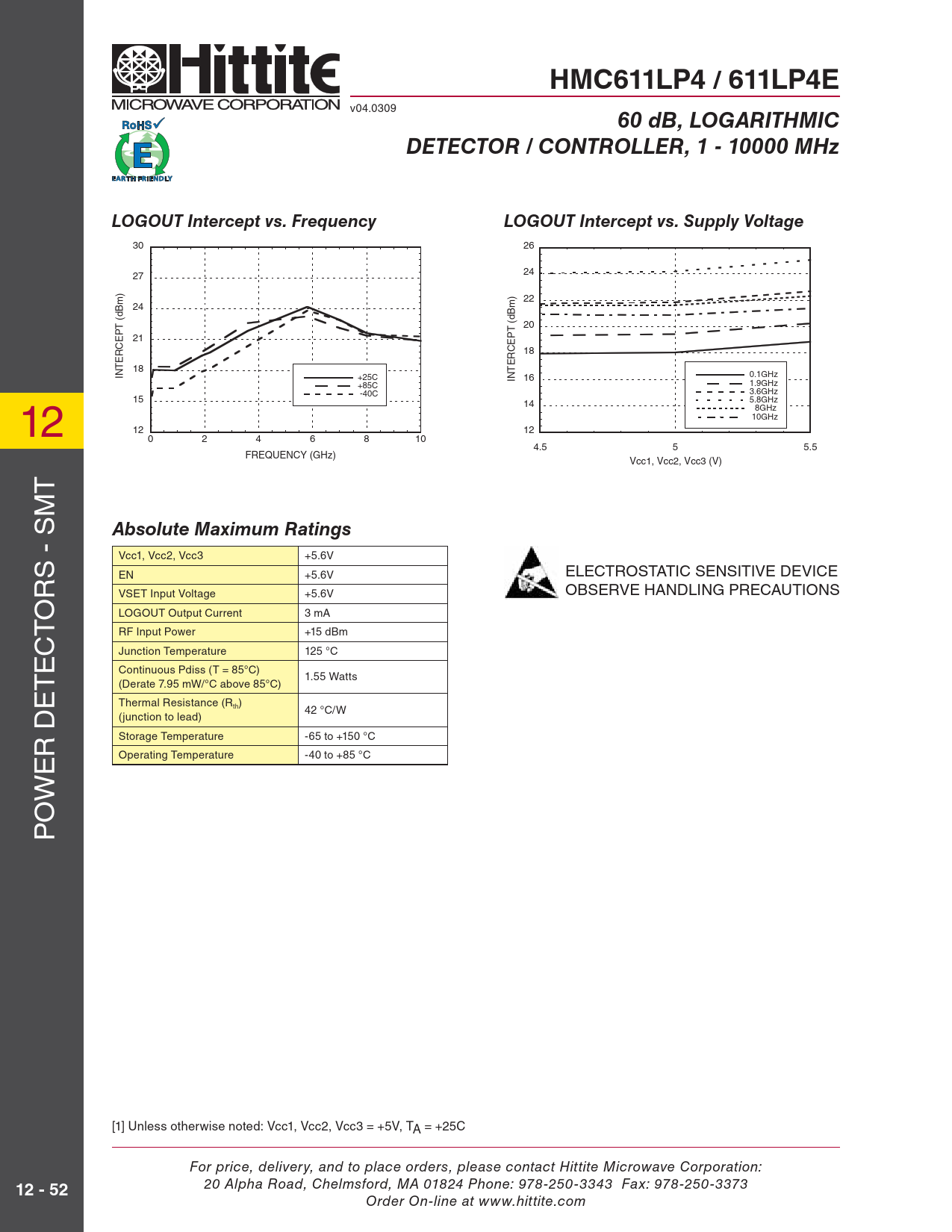

HMC611LP4 / 611LP4E. 60 dB, LOGARITHMIC. DETECTOR / CONTROLLER, 1 - 10000 MHz. LOGOUT Intercept vs. Frequency
Model Line for this Datasheet
Text Version of Document
HMC611LP4 / 611LP4E
v04.0309
60 dB, LOGARITHMIC DETECTOR / CONTROLLER, 1 - 10000 MHz LOGOUT Intercept vs. Frequency LOGOUT Intercept vs. Supply Voltage
30 26 24 27 22 24 20 21 18 18 INTERCEPT (dBm) +25C INTERCEPT (dBm) 16 0.1GHz +85C 1.9GHz -40C 3.6GHz 15 14 5.8GHz 12 8GHz 10GHz 12 12 0 2 4 6 8 10 4.5 5 5.5 FREQUENCY (GHz) Vcc1, Vcc2, Vcc3 (V) T
Absolute Maximum Ratings
Vcc1, Vcc2, Vcc3 +5.6V S - SM EN +5.6V ELECTROSTATIC SENSITIVE DEVICE R VSET Input Voltage +5.6V OBSERVE HANDLING PRECAUTIONS O LOGOUT Output Current 3 mA T RF Input Power +15 dBm C Junction Temperature 125 °C E Continuous Pdiss (T = 85°C) T 1.55 Watts (Derate 7.95 mW/°C above 85°C) E Thermal Resistance (R ) th 42 °C/W (junction to lead) Storage Temperature -65 to +150 °C R D E Operating Temperature -40 to +85 °C W O P [1] Unless otherwise noted: Vcc1, Vcc2, Vcc3 = +5V, TA = +25C For price, delivery, and to place orders, please contact Hittite Microwave Corporation: 20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373
