TYPICAL PERFORMANCE CHARACTERISTICS VIN = 3.8V, TA = 25°C unless otherwise noted. Step-Down Switching Regulator
Model Line for this Datasheet
Text Version of Document
LT3380

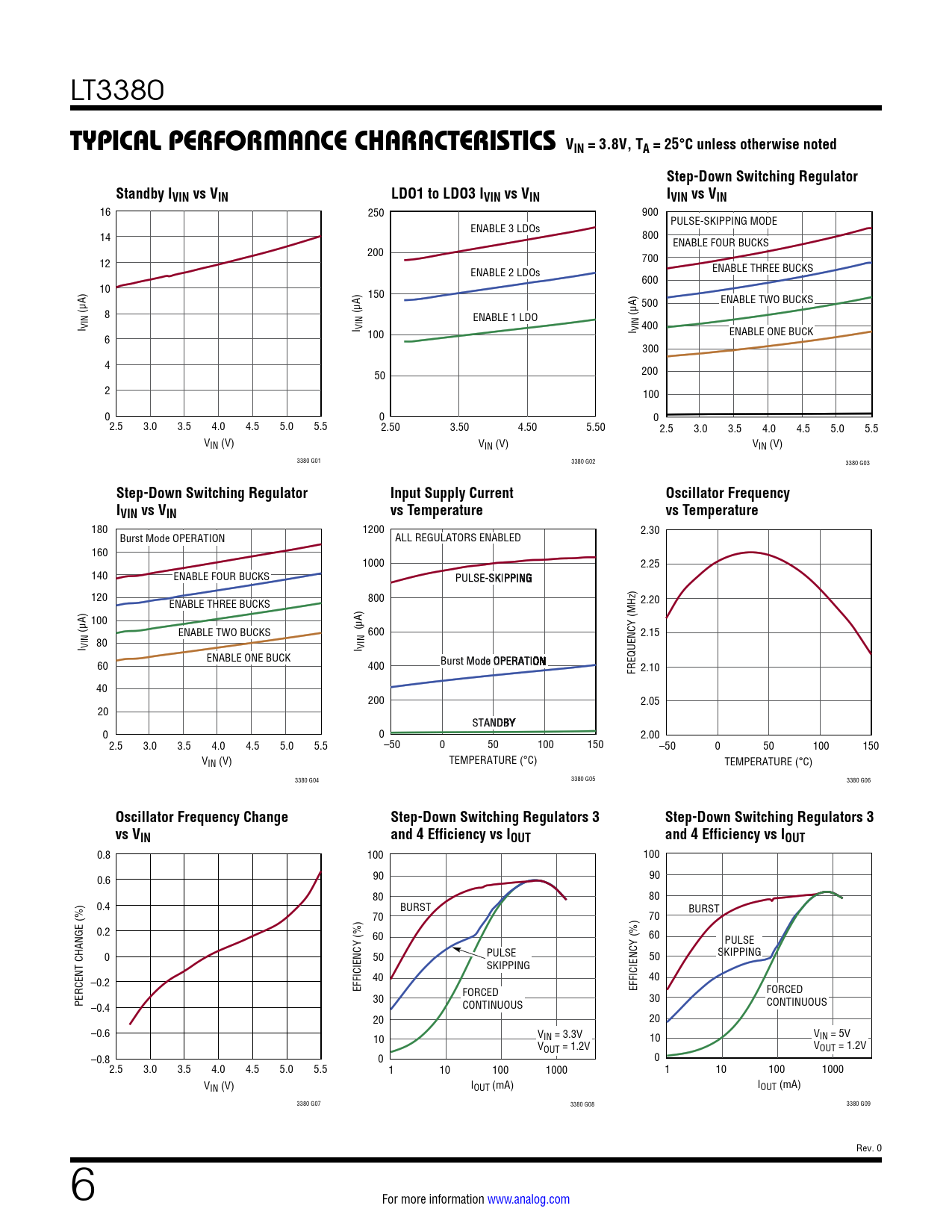

TYPICAL PERFORMANCE CHARACTERISTICS VIN = 3.8V, TA = 25°C unless otherwise noted Step-Down Switching Regulator Standby IVIN vs VIN LDO1 to LDO3 IVIN vs VIN IVIN vs VIN
