Datasheet AOZ7200CI (Alpha & Omega) - 2
| Manufacturer | Alpha & Omega |
| Description | 600V - AlphaZBL |
| Pages / Page | 9 / 2 — ALPHA & OMEGA. AOZ7200CI. Ordering Information. Part Number. Ambient … |
| File Format / Size | PDF / 623 Kb |
| Document Language | English |
ALPHA & OMEGA. AOZ7200CI. Ordering Information. Part Number. Ambient Temperature Range. Package. Environmental. Pin Configuration
Model Line for this Datasheet
Text Version of Document
ALPHA & OMEGA
S E M I C O N D U C T O R

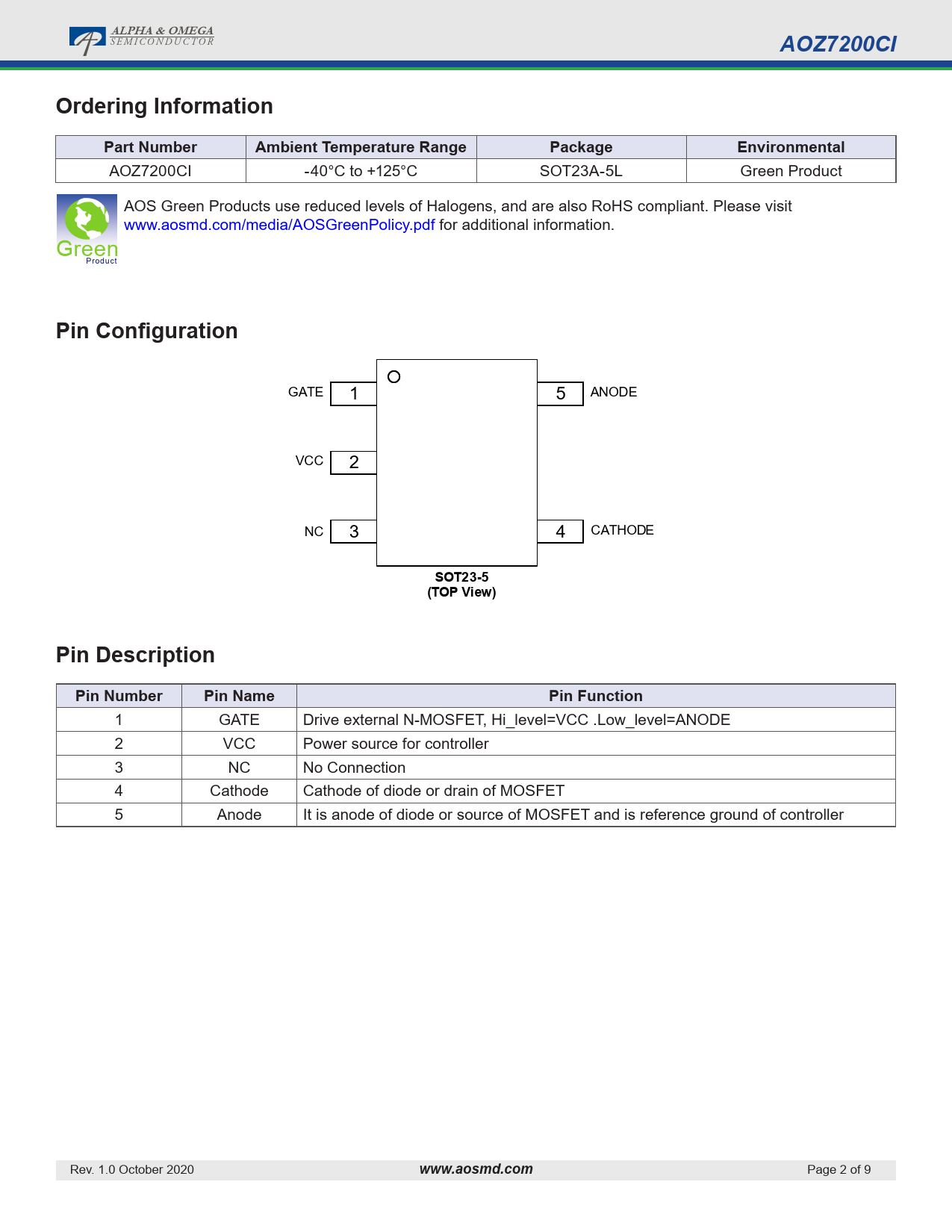

AOZ7200CI Ordering Information Part Number Ambient Temperature Range Package Environmental
AOZ7200CI -40°C to +125°C SOT23A-5L Green Product AOS Green Products use reduced levels of Halogens, and are also RoHS compliant. Please visit www.aosmd.com/media/AOSGreenPolicy.pdf for additional information. Green Product
Pin Configuration
GATE 1 5 ANODE VCC 2 NC 3 4 CATHODE
SOT23-5 (TOP View) Pin Description Pin Number Pin Name Pin Function
1 GATE Drive external N-MOSFET, Hi_level=VCC .Low_level=ANODE 2 VCC Power source for controller 3 NC No Connection 4 Cathode Cathode of diode or drain of MOSFET 5 Anode It is anode of diode or source of MOSFET and is reference ground of controller Rev. 1.0 October 2020
