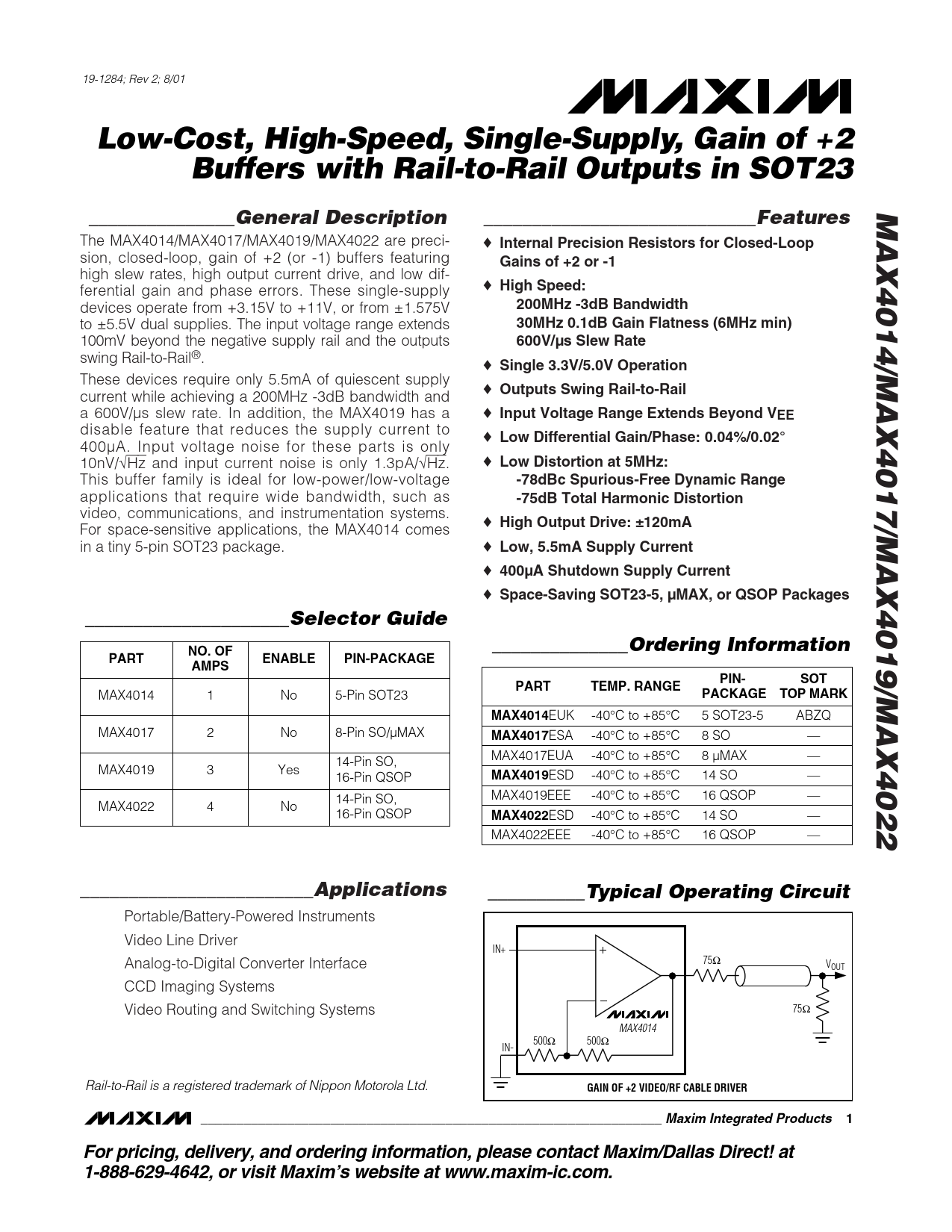

Low-Cost, High-Speed, Single-Supply, Gain of +2. Buffers with Rail-to-Rail Outputs in SOT23
Model Line for this Datasheet
Text Version of Document
19-1284; Rev 2; 8/01
Low-Cost, High-Speed, Single-Supply, Gain of +2 Buffers with Rail-to-Rail Outputs in SOT23 MAX4014/MAX4017/MAX4019/MAX4022 _______________General Description ____________________________Features
The MAX4014/MAX4017/MAX4019/MAX4022 are preci- ♦
Internal Precision Resistors for Closed-Loop
sion, closed-loop, gain of +2 (or -1) buffers featuring
Gains of +2 or -1
high slew rates, high output current drive, and low dif- ferential gain and phase errors. These single-supply ♦
High Speed:
devices operate from +3.15V to +11V, or from ±1.575V
200MHz -3dB Bandwidth
to ±5.5V dual supplies. The input voltage range extends
30MHz 0.1dB Gain Flatness (6MHz min)
100mV beyond the negative supply rail and the outputs
600V/µs Slew Rate
swing Rail-to-Rail®. ♦
Single 3.3V/5.0V Operation
These devices require only 5.5mA of quiescent supply ♦
Outputs Swing Rail-to-Rail
current while achieving a 200MHz -3dB bandwidth and a 600V/µs slew rate. In addition, the MAX4019 has a ♦
Input Voltage Range Extends Beyond VEE
disable feature that reduces the supply current to ♦
Low Differential Gain/Phase: 0.04%/0.02°
400µA. Input voltage noise for these parts is only 10nV/√Hz and input current noise is only 1.3pA/√Hz. ♦
Low Distortion at 5MHz:
This buffer family is ideal for low-power/low-voltage
-78dBc Spurious-Free Dynamic Range
applications that require wide bandwidth, such as
-75dB Total Harmonic Distortion
video, communications, and instrumentation systems. ♦
High Output Drive: ±120mA
For space-sensitive applications, the MAX4014 comes in a tiny 5-pin SOT23 package. ♦
Low, 5.5mA Supply Current
♦
400µA Shutdown Supply Current
♦
Space-Saving SOT23-5, µMAX, or QSOP Packages _____________________Selector Guide ______________Ordering Information NO. OF PART ENABLE PIN-PACKAGE AMPS PIN- SOT PART TEMP. RANGE
MAX4014 1 No 5-Pin SOT23
PACKAGE TOP MARK MAX4014
EUK -40°C to +85°C 5 SOT23-5 ABZQ MAX4017 2 No 8-Pin SO/µMAX
MAX4017
ESA -40°C to +85°C 8 SO — MAX4017EUA -40°C to +85°C 8 µMAX — 14-Pin SO, MAX4019 3 Yes 16-Pin QSOP
MAX4019
ESD -40°C to +85°C 14 SO — 14-Pin SO, MAX4019EEE -40°C to +85°C 16 QSOP — MAX4022 4 No 16-Pin QSOP
MAX4022
ESD -40°C to +85°C 14 SO — MAX4022EEE -40°C to +85°C 16 QSOP —
________________________Applications __________Typical Operating Circuit
Portable/Battery-Powered Instruments Video Line Driver IN+ Analog-to-Digital Converter Interface 75Ω VOUT CCD Imaging Systems Video Routing and Switching Systems 75Ω MAX4014 500Ω 500Ω IN- Rail-to-Rail is a registered trademark of Nippon Motorola Ltd.
GAIN OF +2 VIDEO/RF CABLE DRIVER ________________________________________________________________ Maxim Integrated Products 1 For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at 1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.
