VBUS05M2-HT5
www.vishay.com Vishay Semiconductors

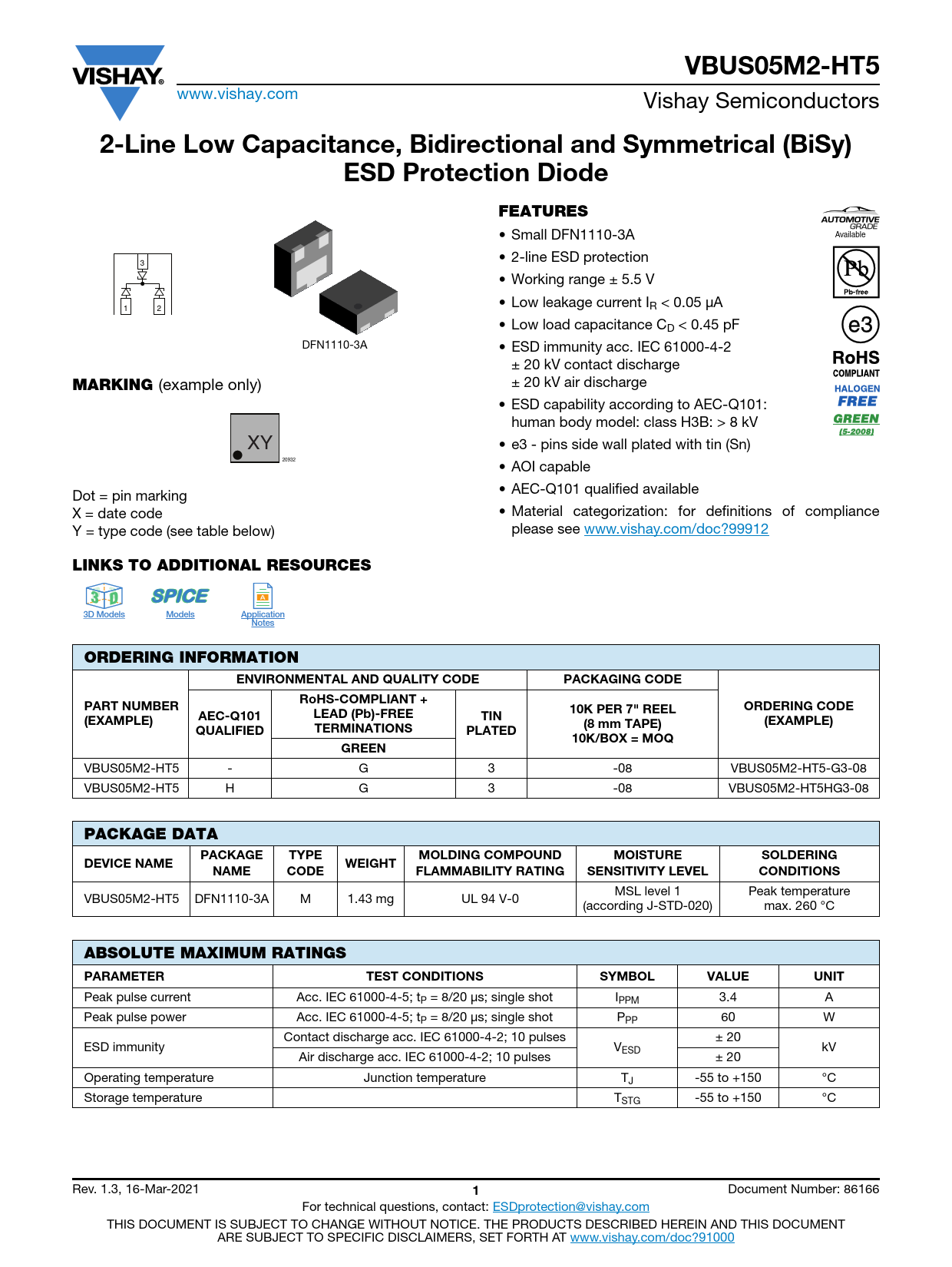

2-Line Low Capacitance, Bidirectional and Symmetrical (BiSy) ESD Protection Diode FEATURES
• Small DFN1110-3A Available • 2-line ESD protection 3 • Working range ± 5.5 V • Low leakage current I 1 2 R < 0.05 μA • Low load capacitance CD < 0.45 pF DFN1110-3A • ESD immunity acc. IEC 61000-4-2 ± 20 kV contact discharge
MARKING
(example only) ± 20 kV air discharge • ESD capability according to AEC-Q101: human body model: class H3B: > 8 kV XY • e3 - pins side wall plated with tin (Sn) 20932 • AOI capable • AEC-Q101 qualified available Dot = pin marking X = date code • Material categorization: for definitions of compliance Y = type code (see table below) please see www.vishay.com/doc?99912
LINKS TO ADDITIONAL RESOURCES D 3 3 D 3D Models Models Application Notes ORDERING INFORMATION ENVIRONMENTAL AND QUALITY CODE PACKAGING CODE RoHS-COMPLIANT + PART NUMBER ORDERING CODE LEAD (Pb)-FREE 10K PER 7" REEL (EXAMPLE) AEC-Q101 TIN (EXAMPLE) (8 mm TAPE) QUALIFIED TERMINATIONS PLATED 10K/BOX = MOQ GREEN
VBUS05M2-HT5 - G 3 -08 VBUS05M2-HT5-G3-08 VBUS05M2-HT5 H G 3 -08 VBUS05M2-HT5HG3-08
PACKAGE DATA PACKAGE TYPE MOLDING COMPOUND MOISTURE SOLDERING DEVICE NAME WEIGHT NAME CODE FLAMMABILITY RATING SENSITIVITY LEVEL CONDITIONS
MSL level 1 Peak temperature VBUS05M2-HT5 DFN1110-3A M 1.43 mg UL 94 V-0 (according J-STD-020) max. 260 °C
ABSOLUTE MAXIMUM RATINGS PARAMETER TEST CONDITIONS SYMBOL VALUE UNIT
Peak pulse current Acc. IEC 61000-4-5; tP = 8/20 μs; single shot IPPM 3.4 A Peak pulse power Acc. IEC 61000-4-5; tP = 8/20 μs; single shot PPP 60 W Contact discharge acc. IEC 61000-4-2; 10 pulses ± 20 ESD immunity VESD kV Air discharge acc. IEC 61000-4-2; 10 pulses ± 20 Operating temperature Junction temperature TJ -55 to +150 °C Storage temperature TSTG -55 to +150 °C Rev. 1.3, 16-Mar-2021
1
Document Number: 86166 For technical questions, contact: ESDprotection@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
