Datasheet PMN50XP (NXP) - 7
| Manufacturer | NXP |
| Description | P-channel TrenchMOS extremely low level FET |
| Pages / Page | 11 / 7 — NXP Semiconductors. PMN50XP. P-channel TrenchMOS extremely low level FET. … |
| File Format / Size | PDF / 153 Kb |
| Document Language | English |
NXP Semiconductors. PMN50XP. P-channel TrenchMOS extremely low level FET. Fig 9. Gate-source voltage as a function of gate
Model Line for this Datasheet
Text Version of Document
NXP Semiconductors PMN50XP P-channel TrenchMOS extremely low level FET
03aq09 -5 V I GS D = -4.7 A (V) Tj = 25 °C -4 VDS = -10 V VDS ID -3 VGS(pl) -2 VGS(th) V -1 GS QGS1 QGS2 Q Q GS GD 0 QG(tot) 0 4 8 12 QG (nC) 003aaa508 I = í4.7 A; T = 25 °C; V = í10 V D j DS

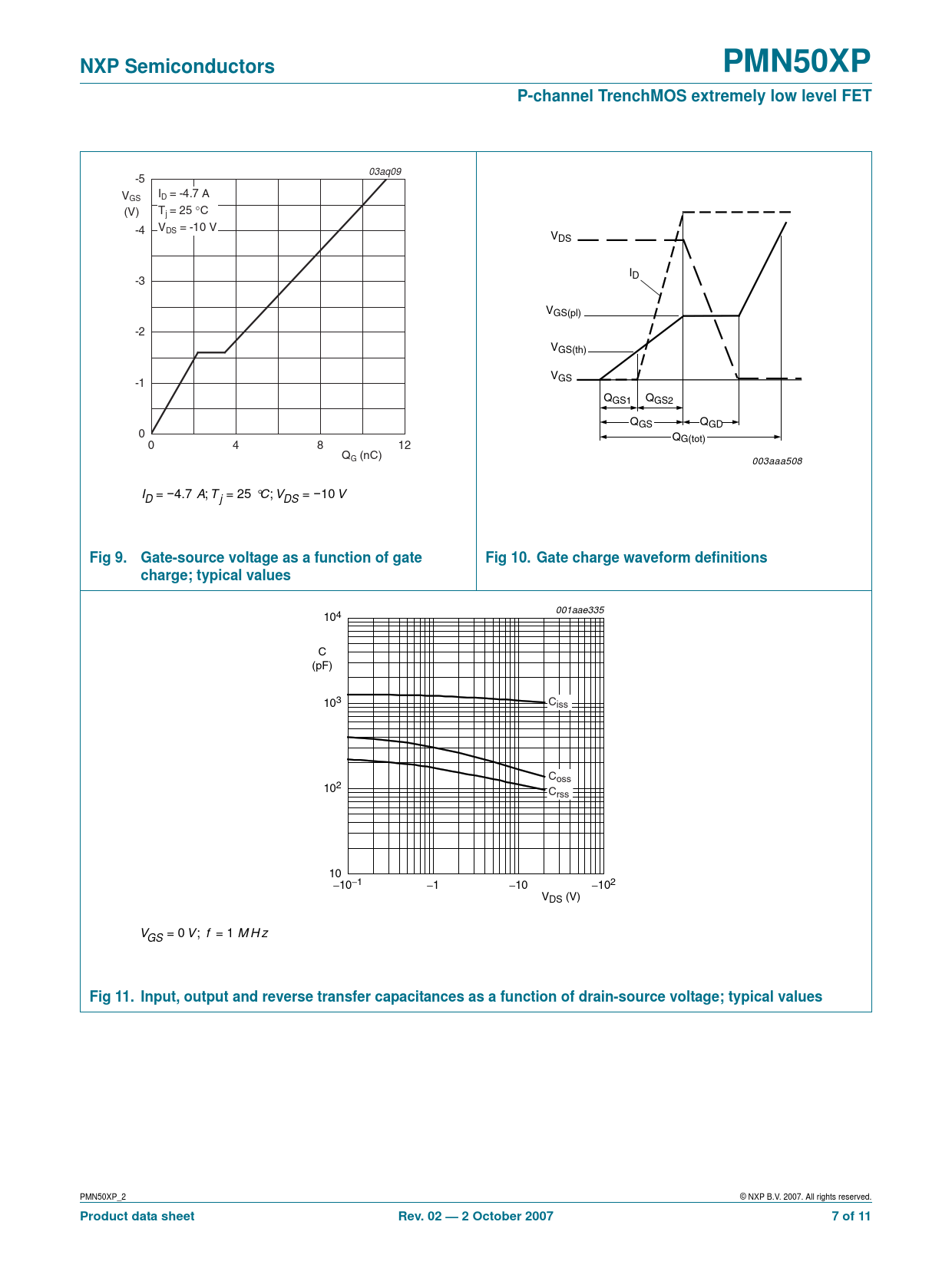

Fig 9. Gate-source voltage as a function of gate Fig 10. Gate charge waveform definitions charge; typical values
001aae335 104 C (pF) 103 Ciss Coss 102 Crss 10 −10−1 −1 −102 −10 VDS (V) V = 0 V ; f = 1 M H z GS
Fig 11. Input, output and reverse transfer capacitances as a function of drain-source voltage; typical values
PMN50XP_2 © NXP B.V. 2007. All rights reserved.
Product data sheet Rev. 02 — 2 October 2007 7 of 11
