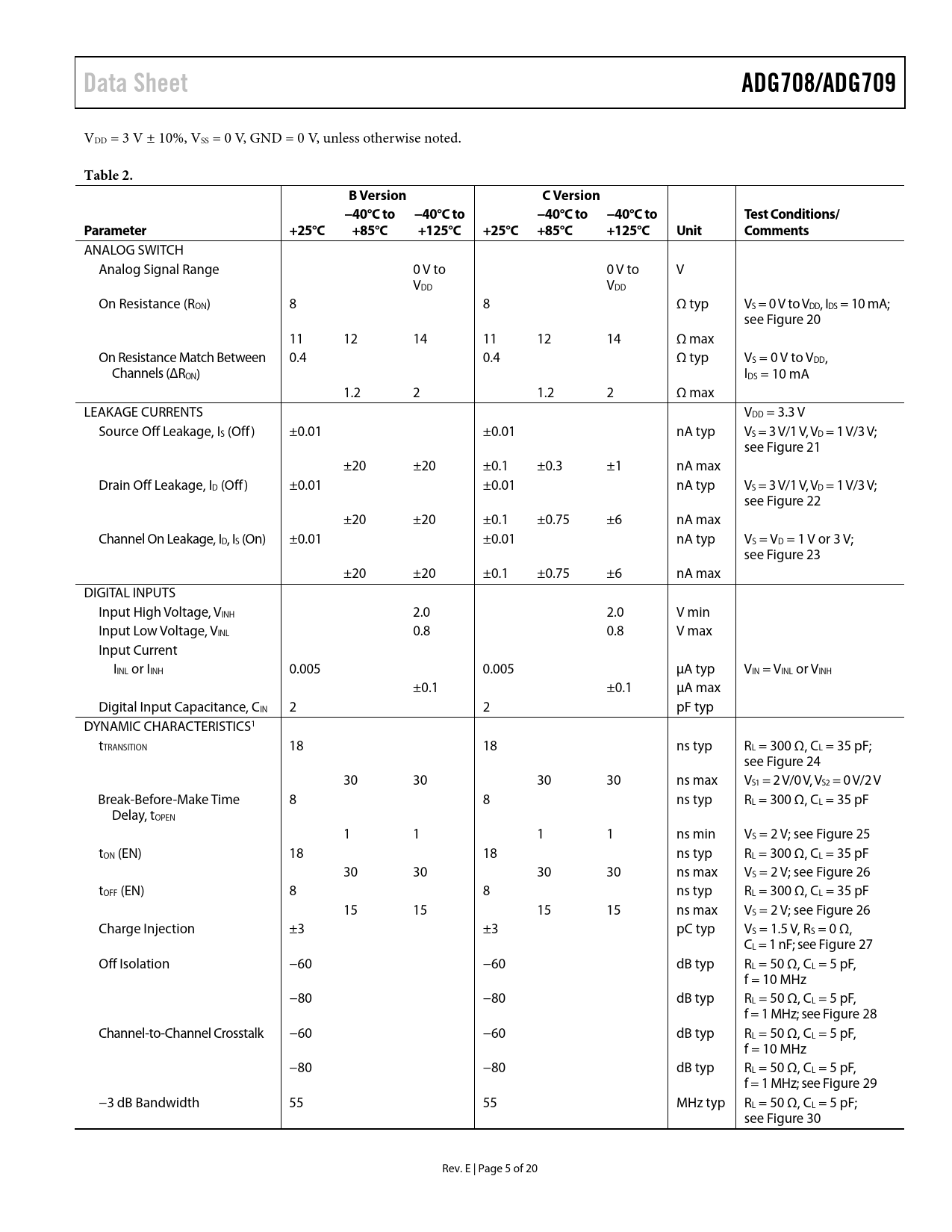

Data Sheet ADG708/ADG709
VDD = 3 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. B Version C Version −40°C to −40°C to −40°C to −40°C to Test Conditions/ Parameter +25°C +85°C +125°C +25°C +85°C +125°C Unit Comments
ANALOG SWITCH Analog Signal Range 0 V to 0 V to V VDD VDD On Resistance (RON) 8 8 Ω typ VS = 0 V to VDD, IDS = 10 mA; see Figure 20 11 12 14 11 12 14 Ω max On Resistance Match Between 0.4 0.4 Ω typ VS = 0 V to VDD, Channels (ΔRON) IDS = 10 mA 1.2 2 1.2 2 Ω max LEAKAGE CURRENTS VDD = 3.3 V Source Off Leakage, IS (Off) ±0.01 ±0.01 nA typ VS = 3 V/1 V, VD = 1 V/3 V; see Figure 21 ±20 ±20 ±0.1 ±0.3 ±1 nA max Drain Off Leakage, ID (Off) ±0.01 ±0.01 nA typ VS = 3 V/1 V, VD = 1 V/3 V; see Figure 22 ±20 ±20 ±0.1 ±0.75 ±6 nA max Channel On Leakage, ID, IS (On) ±0.01 ±0.01 nA typ VS = VD = 1 V or 3 V; see Figure 23 ±20 ±20 ±0.1 ±0.75 ±6 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 2.0 V min Input Low Voltage, VINL 0.8 0.8 V max Input Current IINL or IINH 0.005 0.005 μA typ VIN = VINL or VINH ±0.1 ±0.1 μA max Digital Input Capacitance, CIN 2 2 pF typ DYNAMIC CHARACTERISTICS1 tTRANSITION 18 18 ns typ RL = 300 Ω, CL = 35 pF; see Figure 24 30 30 30 30 ns max VS1 = 2 V/0 V, VS2 = 0 V/2 V Break-Before-Make Time 8 8 ns typ RL = 300 Ω, CL = 35 pF Delay, tOPEN 1 1 1 1 ns min VS = 2 V; see Figure 25 tON (EN) 18 18 ns typ RL = 300 Ω, CL = 35 pF 30 30 30 30 ns max VS = 2 V; see Figure 26 tOFF (EN) 8 8 ns typ RL = 300 Ω, CL = 35 pF 15 15 15 15 ns max VS = 2 V; see Figure 26 Charge Injection ±3 ±3 pC typ VS = 1.5 V, RS = 0 Ω, CL = 1 nF; see Figure 27 Off Isolation −60 −60 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz −80 −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 28 Channel-to-Channel Crosstalk −60 −60 dB typ RL = 50 Ω, CL = 5 pF, f = 10 MHz −80 −80 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 29 −3 dB Bandwidth 55 55 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 30 Rev. E | Page 5 of 20 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Table of Contents Revision History Specifications Dual Supply Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Tables Typical Performance Characteristics Test Circuits Terminology Applications Information Power Supply Sequencing Outline Dimensions Ordering Guide Automotive Products
