Datasheet ADG708, ADG709 (Analog Devices) - 6
| Manufacturer | Analog Devices |
| Description | CMOS, 1.8 V to 5.5 V/±2.5 V, 3 Ω Low Voltage 4-/8-Channel Multiplexers |
| Pages / Page | 20 / 6 — ADG708/ADG709. Data Sheet. B Version. C Version. −40°C to. −40°C to −40°C … |
| Revision | E |
| File Format / Size | PDF / 333 Kb |
| Document Language | English |

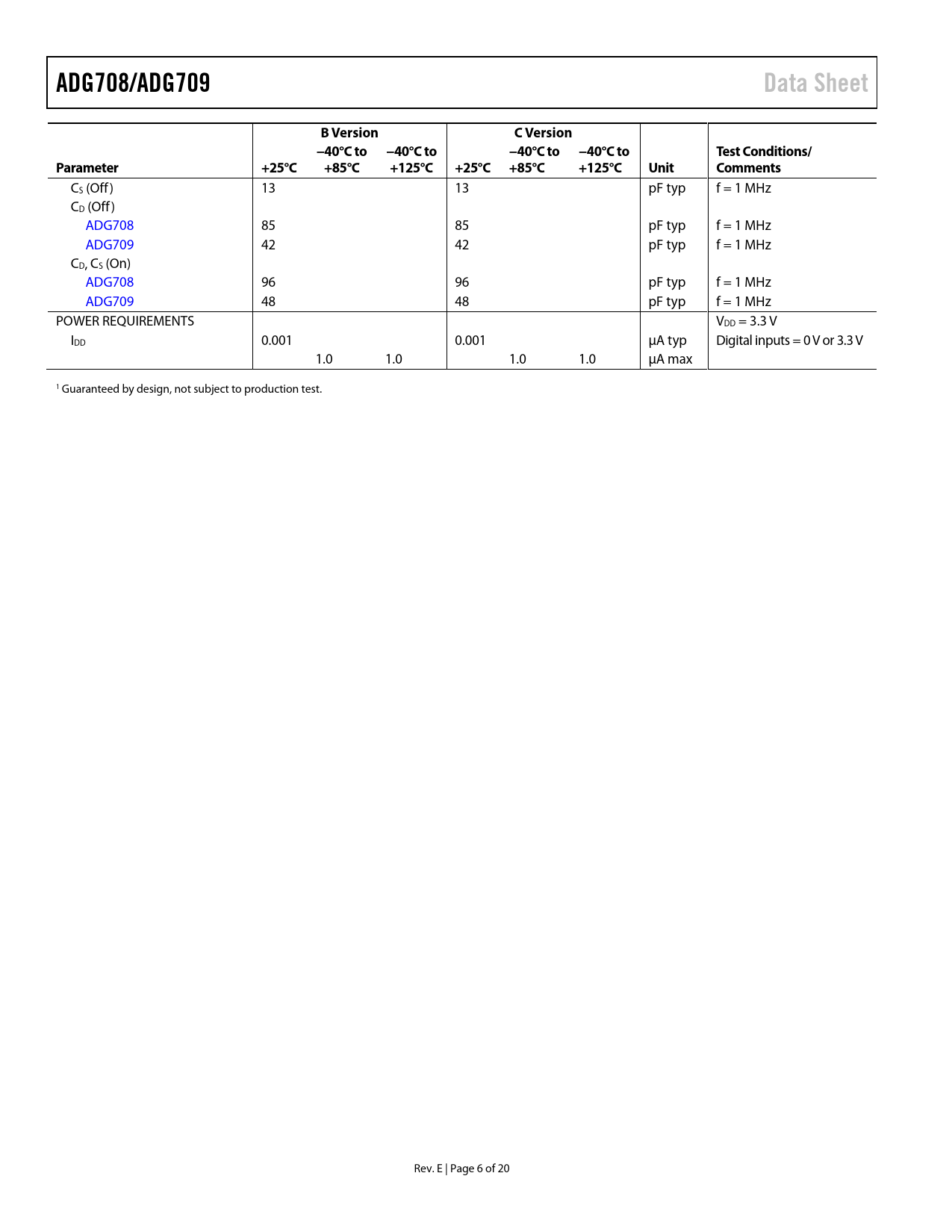

ADG708/ADG709. Data Sheet. B Version. C Version. −40°C to. −40°C to −40°C to. Test Conditions/. Parameter. +25°C. +85°C. +125°C. +25°C +85°C
Model Line for this Datasheet
Text Version of Document
ADG708/ADG709 Data Sheet B Version C Version −40°C to −40°C to −40°C to −40°C to Test Conditions/ Parameter +25°C +85°C +125°C +25°C +85°C +125°C Unit Comments
CS (Off) 13 13 pF typ f = 1 MHz CD (Off) ADG708 85 85 pF typ f = 1 MHz ADG709 42 42 pF typ f = 1 MHz CD, CS (On) ADG708 96 96 pF typ f = 1 MHz ADG709 48 48 pF typ f = 1 MHz POWER REQUIREMENTS VDD = 3.3 V IDD 0.001 0.001 μA typ Digital inputs = 0 V or 3.3 V 1.0 1.0 1.0 1.0 μA max 1 Guaranteed by design, not subject to production test. Rev. E | Page 6 of 20 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Table of Contents Revision History Specifications Dual Supply Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Tables Typical Performance Characteristics Test Circuits Terminology Applications Information Power Supply Sequencing Outline Dimensions Ordering Guide Automotive Products
