ADG708/ADG709. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. GND. VDD. ADG709. ADG708. S1A. S1B. TOP VIEW. S2B. (Not to Scale). S2A
Model Line for this Datasheet
Text Version of Document
link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11 link to page 11

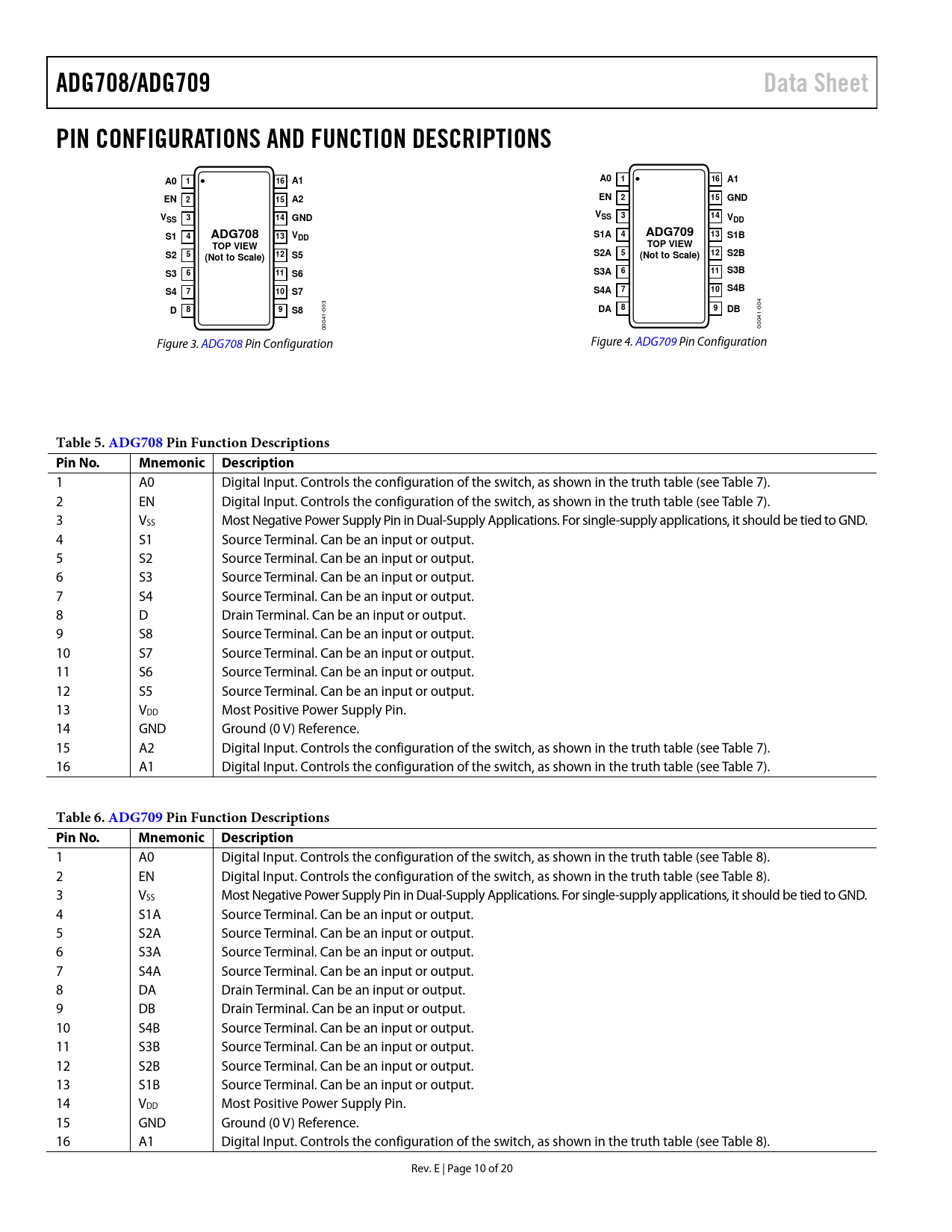

ADG708/ADG709 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS A0 1 16 A1 A0 1 16 A1 EN 2 15 A2 EN 2 15 GND V V 3 14 SS 3 14 GND SS VDD ADG709 S1 4 ADG708 13 V S1A 4 13 DD S1B TOP VIEW TOP VIEW S2 5 12 S5 5 12 S2B (Not to Scale) S2A (Not to Scale) S3 6 11 S6 S3A 6 11 S3B S4 7 10 S7 S4A 7 10 S4B D 8 9 S8
003
DA 8 9 DB
004 00041- 00041- Figure 3. ADG708 Pin Configuration Figure 4. ADG709 Pin Configuration
Table 5. ADG708 Pin Function Descriptions Pin No. Mnemonic Description
1 A0 Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 7). 2 EN Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 7). 3 VSS Most Negative Power Supply Pin in Dual-Supply Applications. For single-supply applications, it should be tied to GND. 4 S1 Source Terminal. Can be an input or output. 5 S2 Source Terminal. Can be an input or output. 6 S3 Source Terminal. Can be an input or output. 7 S4 Source Terminal. Can be an input or output. 8 D Drain Terminal. Can be an input or output. 9 S8 Source Terminal. Can be an input or output. 10 S7 Source Terminal. Can be an input or output. 11 S6 Source Terminal. Can be an input or output. 12 S5 Source Terminal. Can be an input or output. 13 VDD Most Positive Power Supply Pin. 14 GND Ground (0 V) Reference. 15 A2 Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 7). 16 A1 Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 7).
Table 6. ADG709 Pin Function Descriptions Pin No. Mnemonic Description
1 A0 Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 8). 2 EN Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 8). 3 VSS Most Negative Power Supply Pin in Dual-Supply Applications. For single-supply applications, it should be tied to GND. 4 S1A Source Terminal. Can be an input or output. 5 S2A Source Terminal. Can be an input or output. 6 S3A Source Terminal. Can be an input or output. 7 S4A Source Terminal. Can be an input or output. 8 DA Drain Terminal. Can be an input or output. 9 DB Drain Terminal. Can be an input or output. 10 S4B Source Terminal. Can be an input or output. 11 S3B Source Terminal. Can be an input or output. 12 S2B Source Terminal. Can be an input or output. 13 S1B Source Terminal. Can be an input or output. 14 VDD Most Positive Power Supply Pin. 15 GND Ground (0 V) Reference. 16 A1 Digital Input. Controls the configuration of the switch, as shown in the truth table (see Table 8). Rev. E | Page 10 of 20 Document Outline Features Applications General Description Functional Block Diagrams Product Highlights Table of Contents Revision History Specifications Dual Supply Absolute Maximum Ratings ESD Caution Pin Configurations and Function Descriptions Truth Tables Typical Performance Characteristics Test Circuits Terminology Applications Information Power Supply Sequencing Outline Dimensions Ordering Guide Automotive Products
