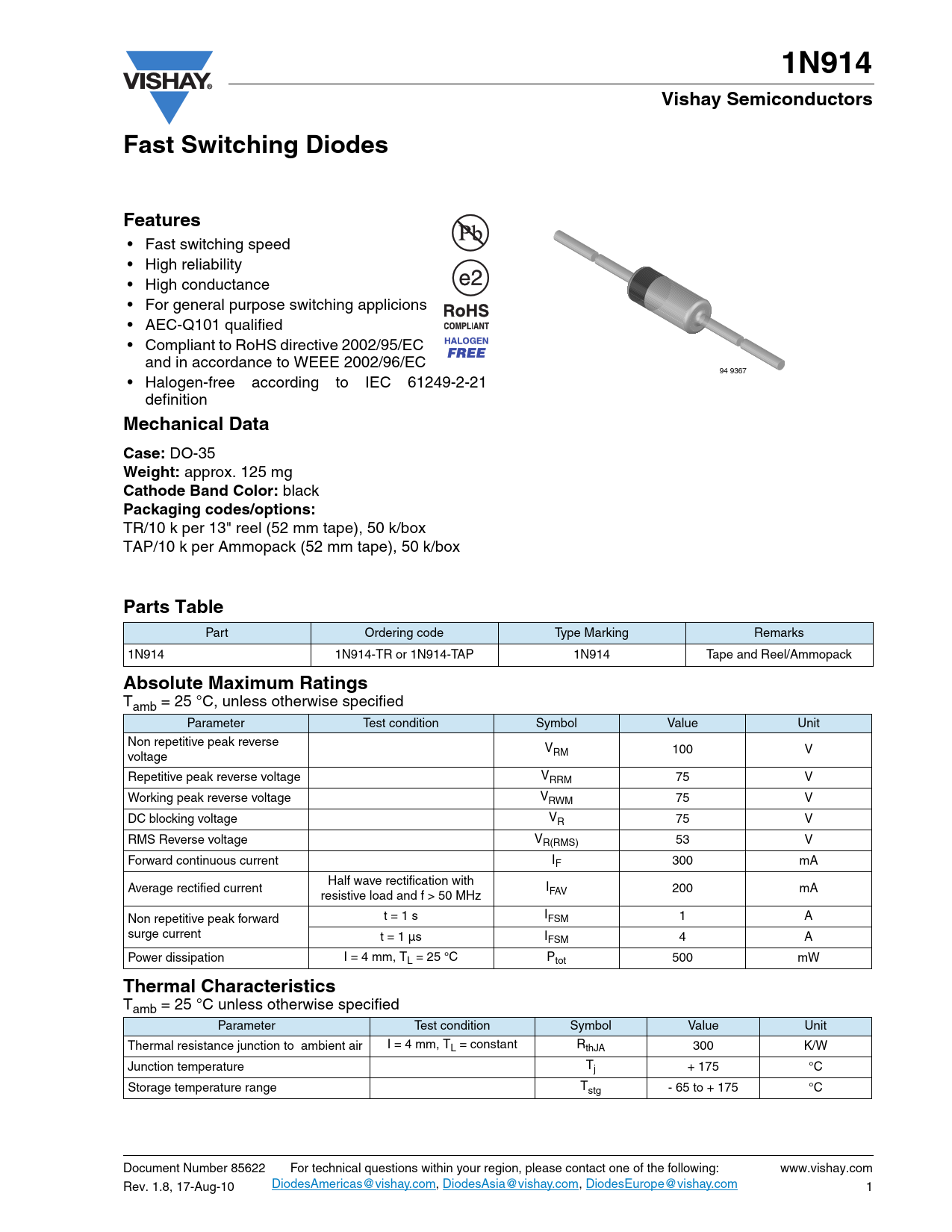

1N914 Vishay Semiconductors Fast Switching Diodes Features
• Fast switching speed • High reliability • High conductance • For general purpose switching applicions • AEC-Q101 qualified • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC 94 9367 • Halogen-free according to IEC 61249-2-21 definition
Mechanical Data Case:
DO-35
Weight:
approx. 125 mg
Cathode Band Color:
black
Packaging codes/options:
TR/10 k per 13" reel (52 mm tape), 50 k/box TAP/10 k per Ammopack (52 mm tape), 50 k/box
Parts Table
Part Ordering code Type Marking Remarks 1N914 1N914-TR or 1N914-TAP 1N914 Tape and Reel/Ammopack
Absolute Maximum Ratings
Tamb = 25 °C, unless otherwise specified Parameter Test condition Symbol Value Unit Non repetitive peak reverse V voltage RM 100 V Repetitive peak reverse voltage VRRM 75 V Working peak reverse voltage VRWM 75 V DC blocking voltage VR 75 V RMS Reverse voltage VR(RMS) 53 V Forward continuous current IF 300 mA Half wave rectification with Average rectified current I resistive load and f > 50 MHz FAV 200 mA Non repetitive peak forward t = 1 s IFSM 1 A surge current t = 1 µs IFSM 4 A Power dissipation I = 4 mm, TL = 25 °C Ptot 500 mW
Thermal Characteristics
Tamb = 25 °C unless otherwise specified Parameter Test condition Symbol Value Unit Thermal resistance junction to ambient air I = 4 mm, TL = constant RthJA 300 K/W Junction temperature Tj + 175 °C Storage temperature range Tstg - 65 to + 175 °C Document Number 85622 For technical questions within your region, please contact one of the following: www.vishay.com Rev. 1.8, 17-Aug-10 DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com 1 Document Outline Datasheet Disclaimer
