Datasheet 6EDL7141 (Infineon) - 10

6EDL7141
Datasheet

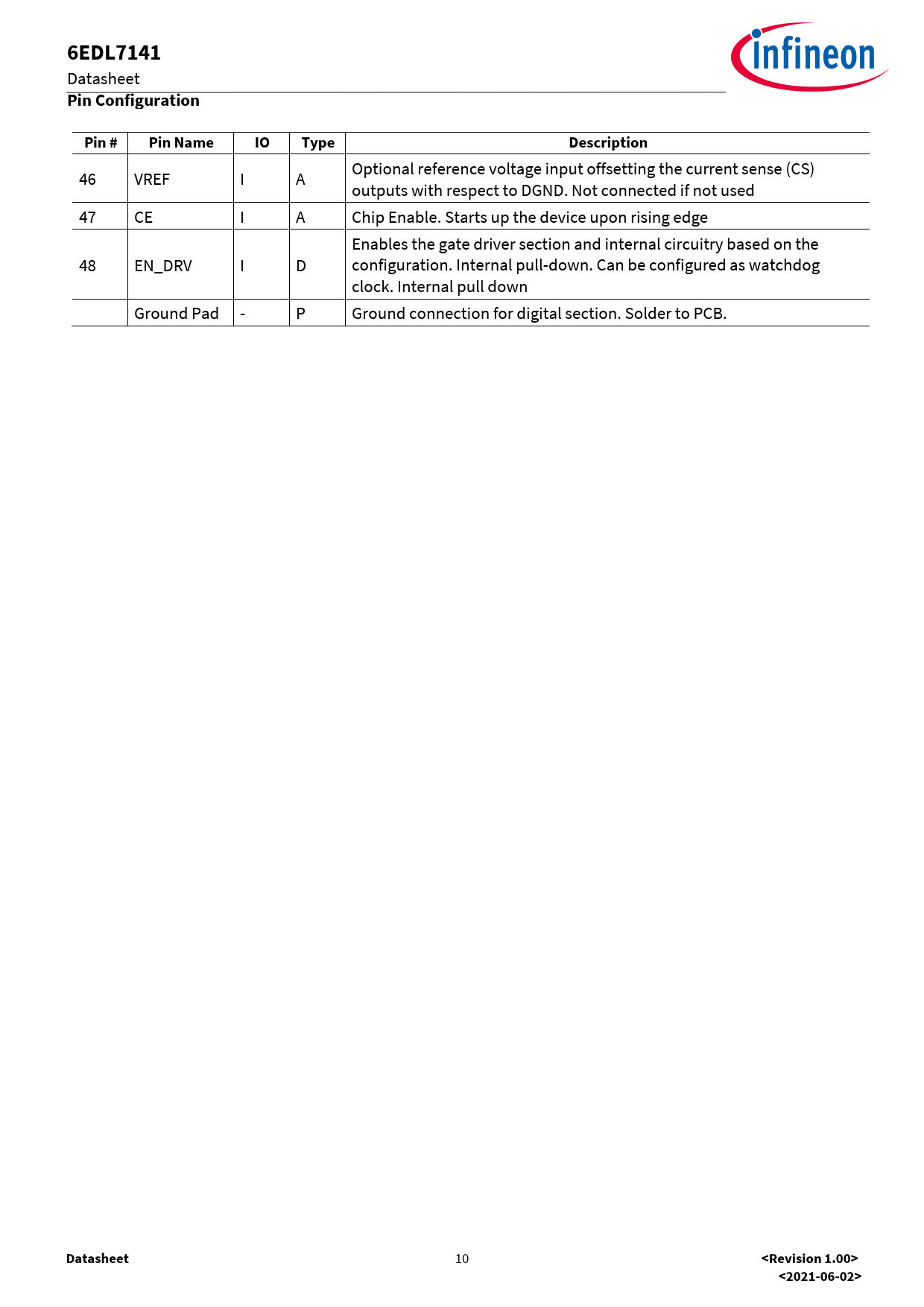

Pin Configuration Pin # Pin Name IO Type Description
Optional reference voltage input offsetting the current sense (CS) 46 VREF I A outputs with respect to DGND. Not connected if not used 47 CE I A Chip Enable. Starts up the device upon rising edge Enables the gate driver section and internal circuitry based on the 48 EN_DRV I D configuration. Internal pull-down. Can be configured as watchdog clock. Internal pull down Ground Pad - P Ground connection for digital section. Solder to PCB.
Datasheet
10
<Revision 1.00> <2021-06-02>
Document Outline Product Feature Summary Potential Applications Product Description System Block Diagram Package Description 1 Pin Configuration 1.1 Pin Assignment 1.2 Pin Definitions and Functions 2 General Product Characteristics 2.1 Absolute Maximum Ratings 2.2 Recommended Operating Conditions 2.3 ESD Robustness 2.4 Thermal Resistance 2.5 Electrical Characteristics 2.6 Electrical Characteristic Graphs 3 Product Features 3.1 Functional Block Diagram 3.2 PWM Modes 3.2.1 PWM with 6 Independent Inputs – 6PWM 3.2.2 PWM with 3 Independent Inputs – 3PWM 3.2.3 PWM with 1 Input and Commutation Pattern – 1PWM 3.2.4 PWM with 1 Input and Commutation with Hall Sensor Inputs – 1PWM with Hall Sensors 3.2.5 PWM with 1 Input and Commutation with Hall Sensor Inputs and Alternating Recirculation – 1PWM with Hall Sensors and Alternating Recirculation 3.2.6 PWM Braking Modes 3.2.7 Dead Time Insertion 3.3 Integrated Three Phase Gate Driver 3.3.1 Gate Driver Architecture 3.3.2 Slew Rate Control 3.3.2.1 Slew Rate Control Parameters and Usage 3.3.3 Gate Driver Voltage Programmability 3.4 Charge Pump Configuration 3.4.1 Charge Pump Clock Frequency Selection 3.4.2 Charge Pump Clock Spread Spectrum Feature 3.4.3 Charge Pump Pre-Charge for VCCLS 3.4.4 Charge Pump Tuning 3.4.5 Gate Driver and Charge Pumps Protections 3.4.5.1 VCCLS Under-Voltage Lock-Out (VCCLS UVLO) 3.4.5.2 VCCHS Under-Voltage Lock-Out (VCCLS UVLO) 3.4.5.3 Floating Gate Strong Pull Down 3.5 Power Supply System 3.5.1 Synchronous Buck Converter Description 3.5.1.1 Buck Converter Output Voltage Dependency on PVCC_SETPT 3.5.1.2 Synchronous Buck Converter Protections 3.5.2 DVDD Linear Regulator 3.5.2.1 DVDD Linear Regulator OCP 3.6 Current Sense Amplifiers 3.6.1 RDSON Sensing Mode vs Leg Shunt Mode 3.6.2 Current Shunt Amplifier Timing Mode 3.6.3 Current Shunt Amplifier Blanking Time 3.6.4 Current Sense Amplifier Offset Generation: Internal or External (VREF pin) 3.6.5 Overcurrent Comparators and DAC for Current Sense Amplifiers 3.6.5.1 OCP Use Cases 3.6.5.2 OCP Fault Reporting 3.6.5.3 OCP Fault Latching 3.6.5.4 PWM Truncation 3.6.6 Current Sense Amplifier Gain Selection 3.6.7 Current Sense Amplifier DC Calibration 3.6.8 Auto-Zero Compensation of Current Sense Amplifier 3.6.8.1 Internal Auto-Zero 3.6.8.2 External Auto-Zero Synchronization via CS_GAIN/AZ Pin 3.6.8.3 External Auto-Zero Synchronization via CS_GAIN/AZ Pin with Enhanced Sensing 3.7 Hall Comparators 3.8 Watchdog Timers 3.8.1 Buck converter watchdog 3.8.2 General Purpose Watchdog 3.8.3 Locked-Rotor Protection Watchdog Timer 3.9 Multi-Function Pins 3.9.1 EN_DRV Pin 3.9.2 VSENSE/nBRAKE Pin 3.9.3 CS_GAIN/AZ Pin 3.10 ADC Module-Analog to Digital Converter 3.10.1 ADC Measurement Sequencing and On Demand Conversion 3.10.2 Die Temperature Sensor 4 Device Start-Up 4.1 Power Supply Start-Up 4.2 Gate Driver and CSAMP Start-up 5 Device Functional States 6 Protections and Faults Handling 7 Device Programming-OTP and SPI interface 7.1.1 OTP User Programming Procedure: Loading Custom Default Values 7.1.2 SPI Communication 7.1.2.1 SPI Communication Example 8 Register Map 8.1 Device Programmability 8.2 Register Map Faults Status Register Temperature Status Register Power Supply Status Register Functional Status Register OTP Status Register ADC Status Register Charge Pumps Status Register Device ID Register Faults Clear Register Power Supply Configuration Register ADC Configuration Register PWM Configuration Register Sensor Configuration Register Watchdog Configuration Register Watchdog Configuration Register 2 Gate Driver Current Control Register Gate Driver Pre-Charge Current Control Register TDRIVE Source Control Register TDRIVE Sink Control Register Dead Time Register Charge Pump Configuration Register Current Sense Amplifier Configuration Register Current Sense Amplifier Configuration Register 2 OTP Program Register 9 Application Description 9.1 Recommended External Components 9.2 PCB Layout Recommendations 9.3 Typical Applications 10 ESD Protection 11 Package Information Revision history
