NXH010P120MNF1PTNG, NXH010P120MNF1PNG. Figure 3. MOSFET Typical Output Characteristics
Model Line for this Datasheet
Text Version of Document

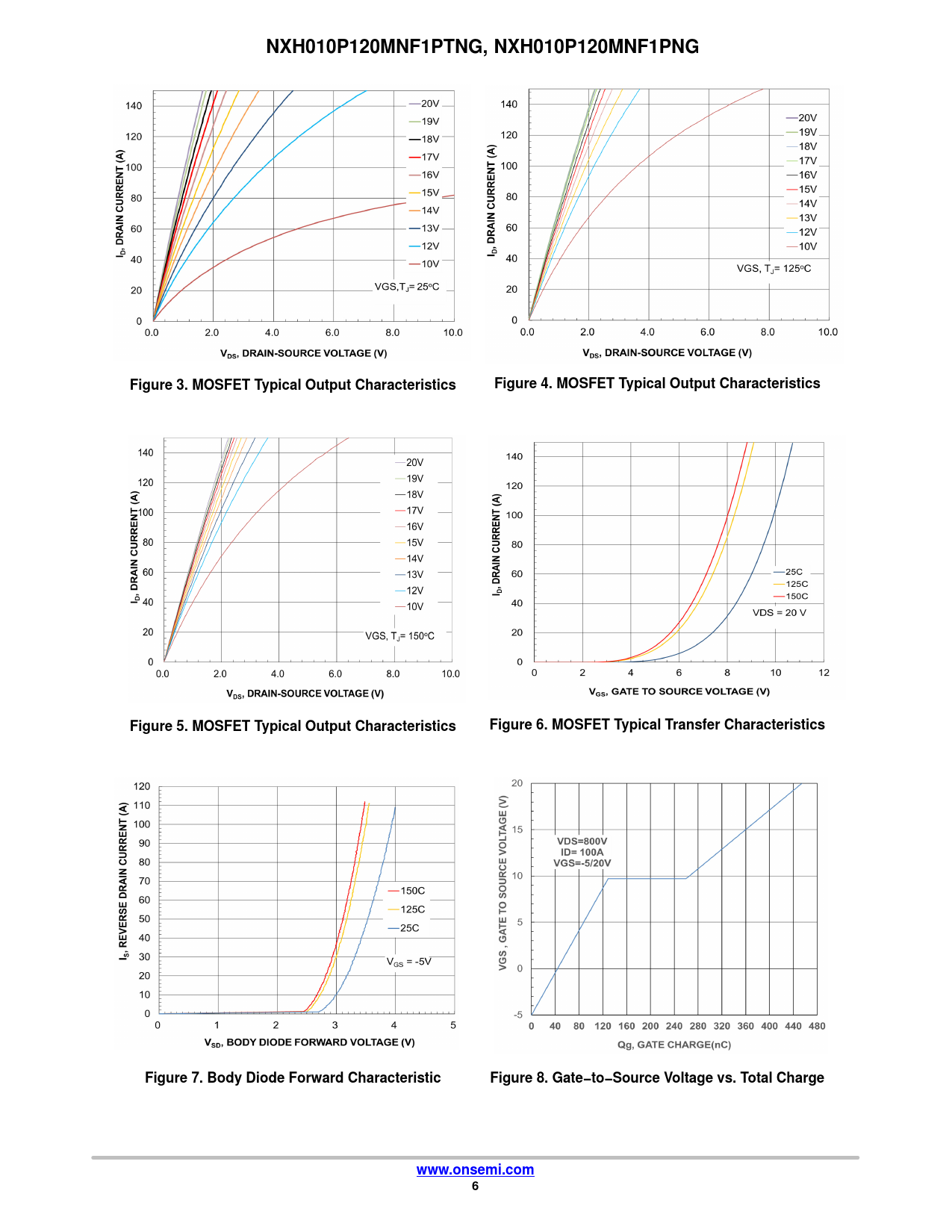

NXH010P120MNF1PTNG, NXH010P120MNF1PNG Figure 3. MOSFET Typical Output Characteristics Figure 4. MOSFET Typical Output Characteristics Figure 5. MOSFET Typical Output Characteristics Figure 6. MOSFET Typical Transfer Characteristics Figure 7. Body Diode Forward Characteristic Figure 8. Gate−to−Source Voltage vs. Total Charge www.onsemi.com 6
