NXH010P120MNF1PTNG, NXH010P120MNF1PNG. TYPICAL CHARACTERISTICS. Figure 18. Typical Turn−Off Switching Tdoff vs. IC
Model Line for this Datasheet
Text Version of Document
NXH010P120MNF1PTNG, NXH010P120MNF1PNG TYPICAL CHARACTERISTICS
M1/M2 MOSFET SWITCHING CHARACTERISTICS

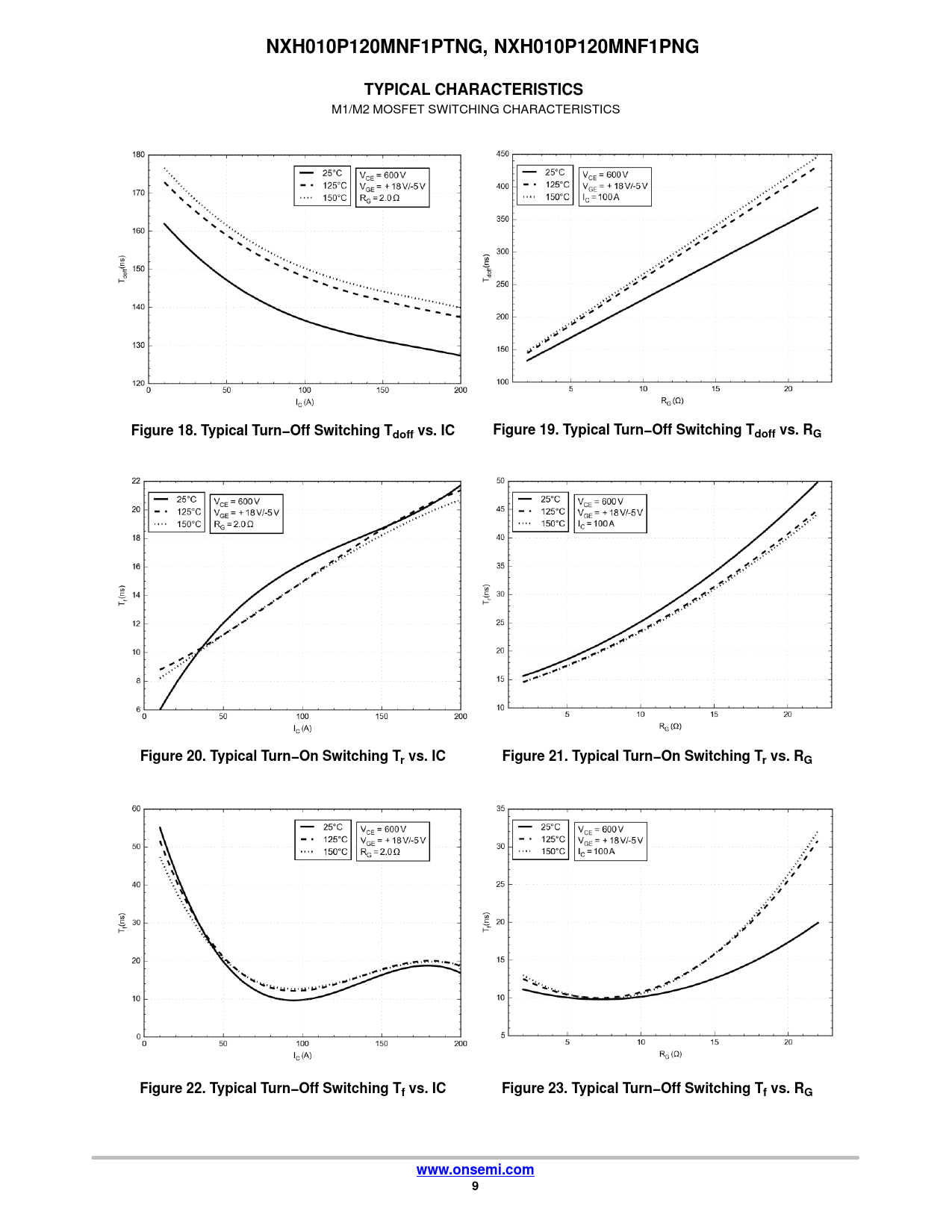

Figure 18. Typical Turn−Off Switching Tdoff vs. IC Figure 19. Typical Turn−Off Switching Tdoff vs. RG Figure 20. Typical Turn−On Switching Tr vs. IC Figure 21. Typical Turn−On Switching Tr vs. RG Figure 22. Typical Turn−Off Switching Tf vs. IC Figure 23. Typical Turn−Off Switching Tf vs. RG www.onsemi.com 9
M1/M2 MOSFET SWITCHING CHARACTERISTICS
Figure 18. Typical Turn−Off Switching Tdoff vs. IC Figure 19. Typical Turn−Off Switching Tdoff vs. RG Figure 20. Typical Turn−On Switching Tr vs. IC Figure 21. Typical Turn−On Switching Tr vs. RG Figure 22. Typical Turn−Off Switching Tf vs. IC Figure 23. Typical Turn−Off Switching Tf vs. RG www.onsemi.com 9
