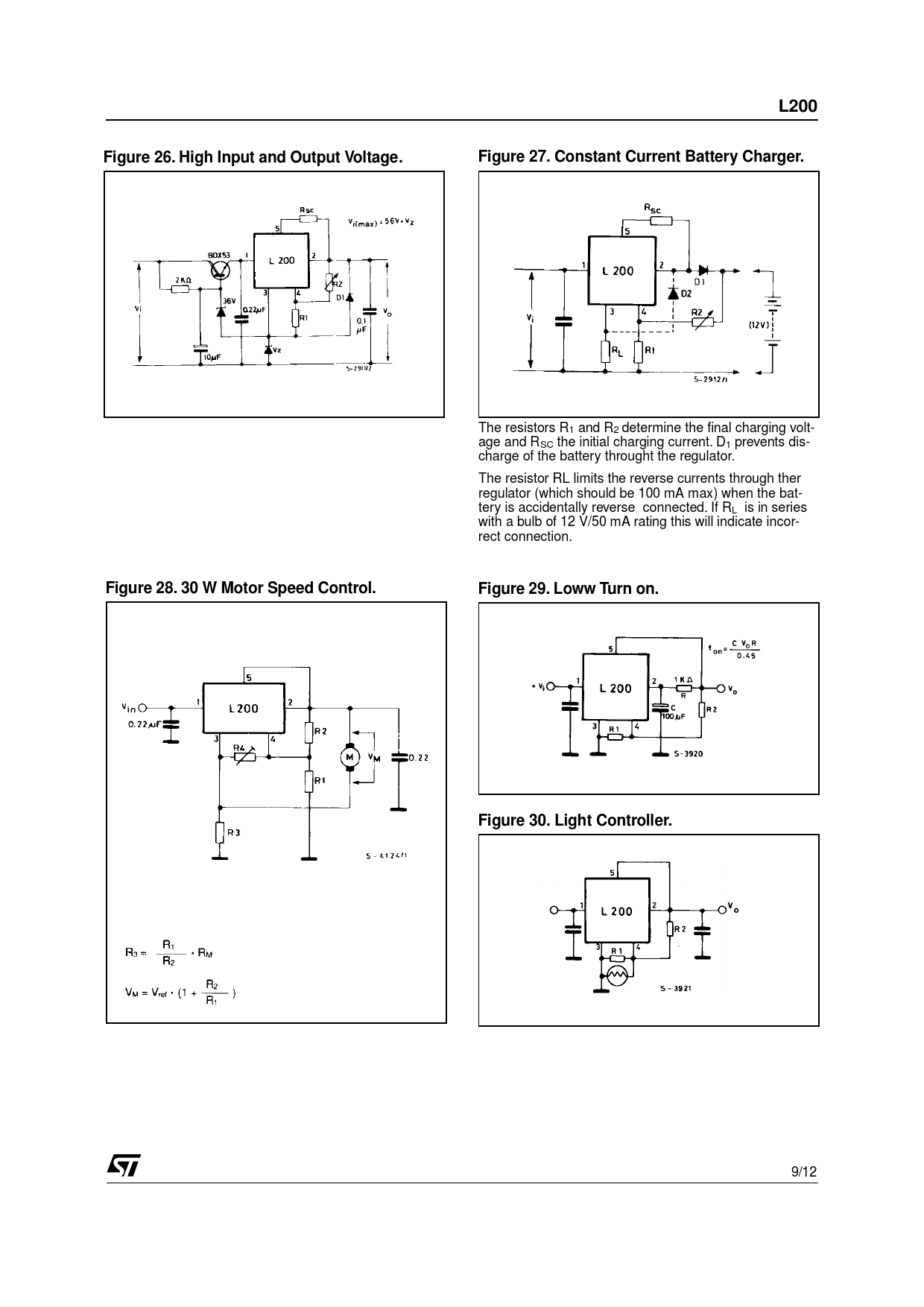

L200. Figure 26. High Input and Output Voltage. Figure 27. Constant Current Battery Charger

L200 Figure 26 High Input and Output Voltage Figure 27 Constant Current Battery Charger

Model Line for this Datasheet

Text Version of Document

L200 Figure 26. High Input and Output Voltage. Figure 27. Constant Current Battery Charger.
The resistors R1 and R2 determine the final charging volt- age and RSC the initial charging current. D1 prevents dis- charge of the battery throught the regulator. The resistor RL limits the reverse currents through ther regulator (which should be 100 mA max) when the bat- tery is accidentally reverse connected. If RL is in series with a bulb of 12 V/50 mA rating this will indicate incor- rect connection.
Figure 28. 30 W Motor Speed Control. Figure 29. Loww Turn on. Figure 30. Light Controller.
