Datasheet ARL-5613RGBW/4A (Arlight)
| Manufacturer | Arlight |
| Description | Lead out round LED, d = 5 mm, white matte lens |
| Pages / Page | 4 / 1 — ARL-5613RGBW/4A. Package Dimensions. Features. Notes:. Description. Usage … |
| File Format / Size | PDF / 216 Kb |
| Document Language | English |

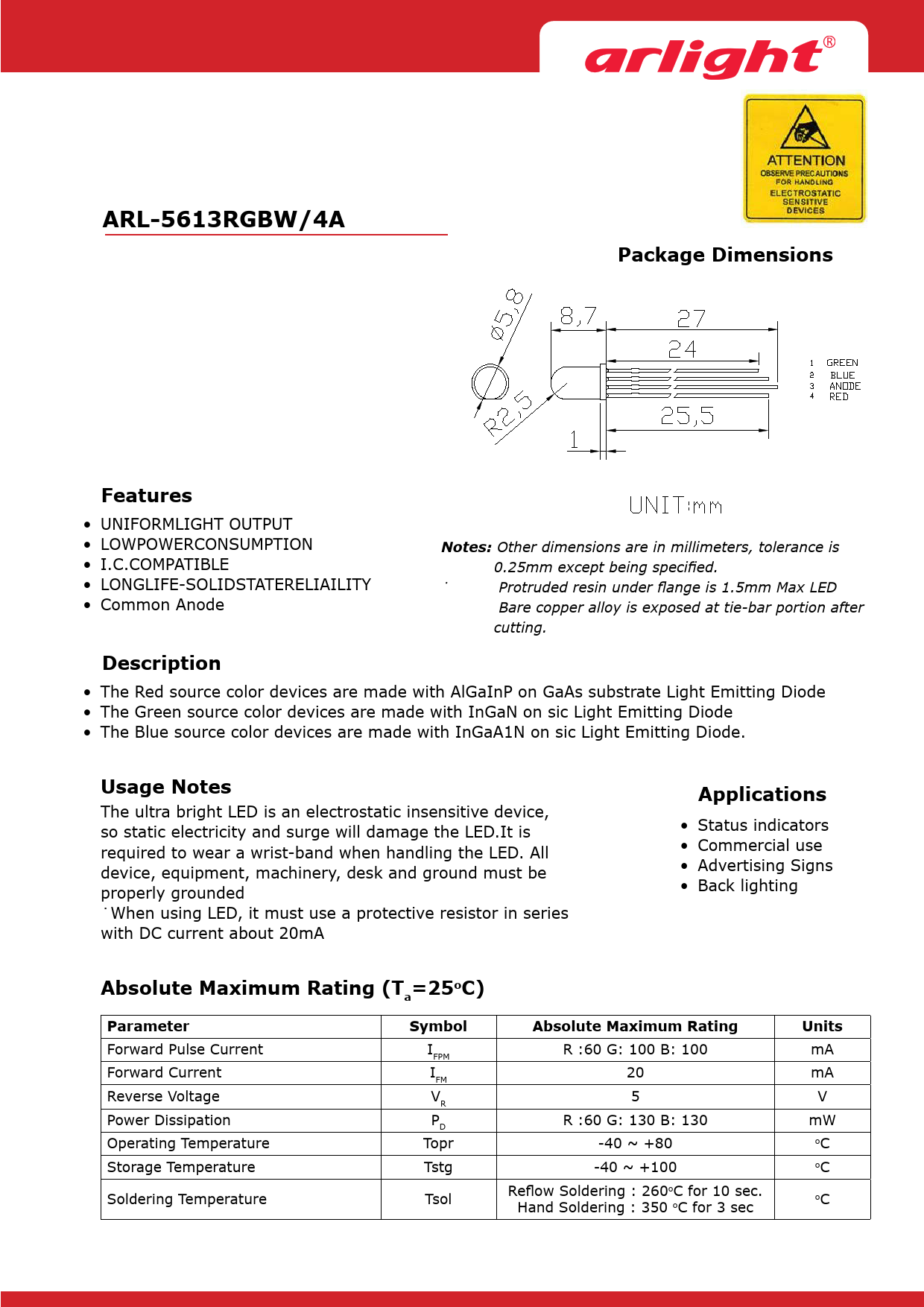

ARL-5613RGBW/4A. Package Dimensions. Features. Notes:. Description. Usage Notes. Applications. Absolute Maximum Rating (T =25oC)
Model Line for this Datasheet
Text Version of Document
ARL-5613RGBW/4A Package Dimensions Features
• UNIFORMLIGHT OUTPUT • LOWPOWERCONSUMPTION
Notes:
Other dimensions are in millimeters, tolerance is • I.C.COMPATIBLE 0.25mm except being specified. • LONGLIFE-SOLIDSTATERELIAILITY ˙ Protruded resin under flange is 1.5mm Max LED • Common Anode Bare copper alloy is exposed at tie-bar portion after cutting.
Description
• The Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode • The Green source color devices are made with InGaN on sic Light Emitting Diode • The Blue source color devices are made with InGaA1N on sic Light Emitting Diode.
Usage Notes Applications
The ultra bright LED is an electrostatic insensitive device, • Status indicators so static electricity and surge will damage the LED.It is • Commercial use required to wear a wrist-band when handling the LED. All • Advertising Signs device, equipment, machinery, desk and ground must be • Back lighting properly grounded ˙When using LED, it must use a protective resistor in series with DC current about 20mA
Absolute Maximum Rating (T =25oC) a Parameter Symbol Absolute Maximum Rating Units
Forward Pulse Current I R :60 G: 100 B: 100 mA FPM Forward Current I 20 mA FM Reverse Voltage V 5 V R Power Dissipation P R :60 G: 130 B: 130 mW D Operating Temperature Topr -40 ~ +80 oC Storage Temperature Tstg -40 ~ +100 oC Soldering Temperature Tsol Reflow Soldering : 260oC for 10 sec. o Hand Soldering : 350 C oC for 3 sec
