Datasheet HT73xx (Holtek) - 2
| Manufacturer | Holtek |
| Description | Low Power Consumption LDO |
| Pages / Page | 8 / 2 — HT73xx. Block Diagram. Pin Assignment. SOT89. 73xx-A. Pin Description. … |
| File Format / Size | PDF / 337 Kb |
| Document Language | English |

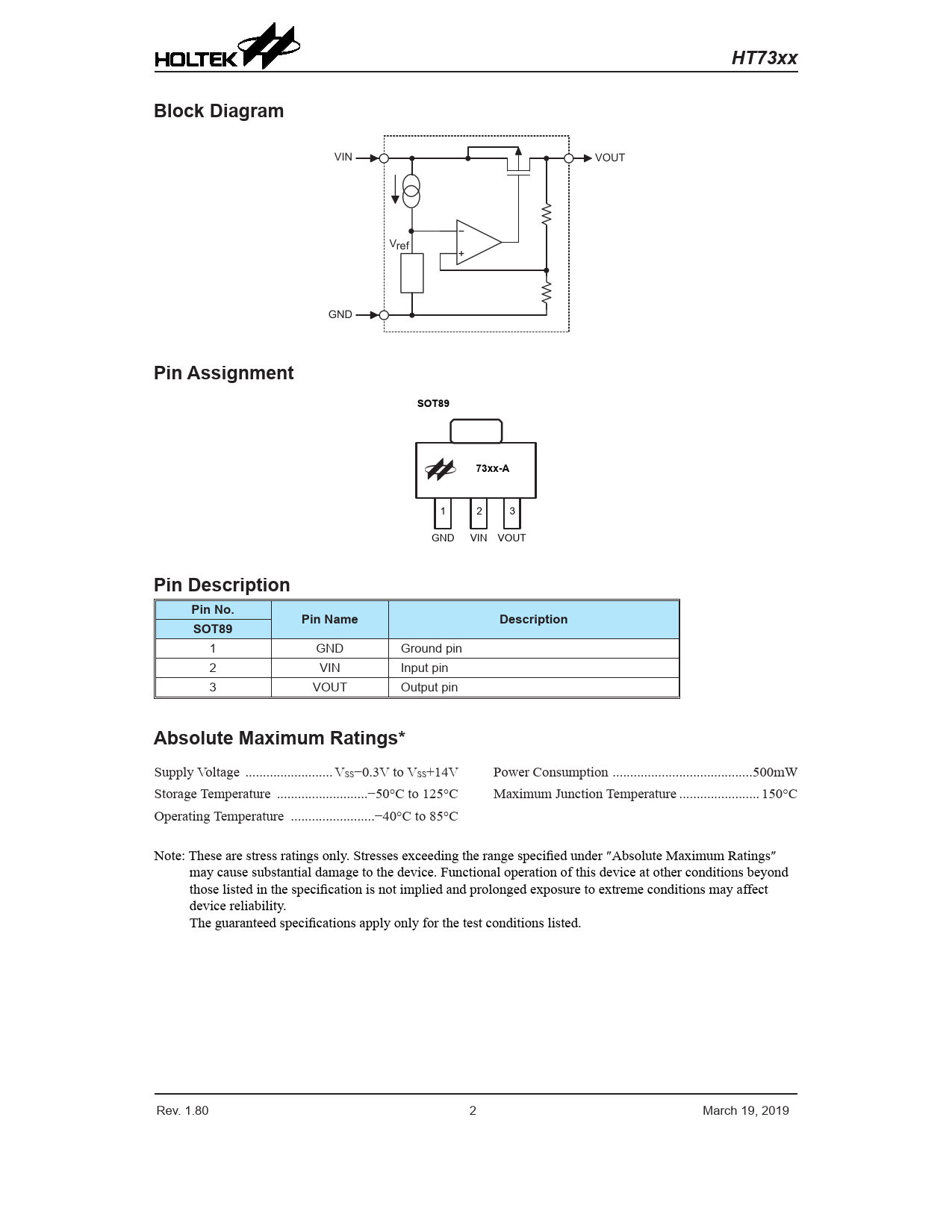

HT73xx. Block Diagram. Pin Assignment. SOT89. 73xx-A. Pin Description. Pin No. Pin Name. Description. Absolute Maximum Ratings*
Model Line for this Datasheet
Text Version of Document
HT73xx Block Diagram Pin Assignment SOT89 73xx-A
1 2 3 GND VIN VOUT
Pin Description Pin No. Pin Name Description SOT89
1 GND Ground pin 2 VIN Input pin 3 VOUT Output pin
Absolute Maximum Ratings*
Supply Voltage ... VSS−0.3V to VSS+14V Power Consumption ..500mW Storage Temperature ..−50°C to 125°C Maximum Junction Temperature ... 150°C Operating Temperature ..−40°C to 85°C Note: These are stress ratings only. Stresses exceeding the range specified under ″Absolute Maximum Ratings″ may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability. The guaranteed specifications apply only for the test conditions listed. Rev. 1.80 2 March 19, 2019 Document Outline Features Applications General Description Selection Table Block Diagram Pin Assignment Pin Description Absolute Maximum Ratings* Electrical Characteristics HT7318, +1.8V Output Type HT7325, +2.5V Output Type HT7327, +2.7V Output Type HT7330, +3.0V Output Type HT7333, +3.3V Output Type HT7335, +3.5V Output Type HT7341, +4.15V Output Type HT7350, +5.0V Output Type Application Circuits Package Information 3-pin SOT89 Outline Dimensions
