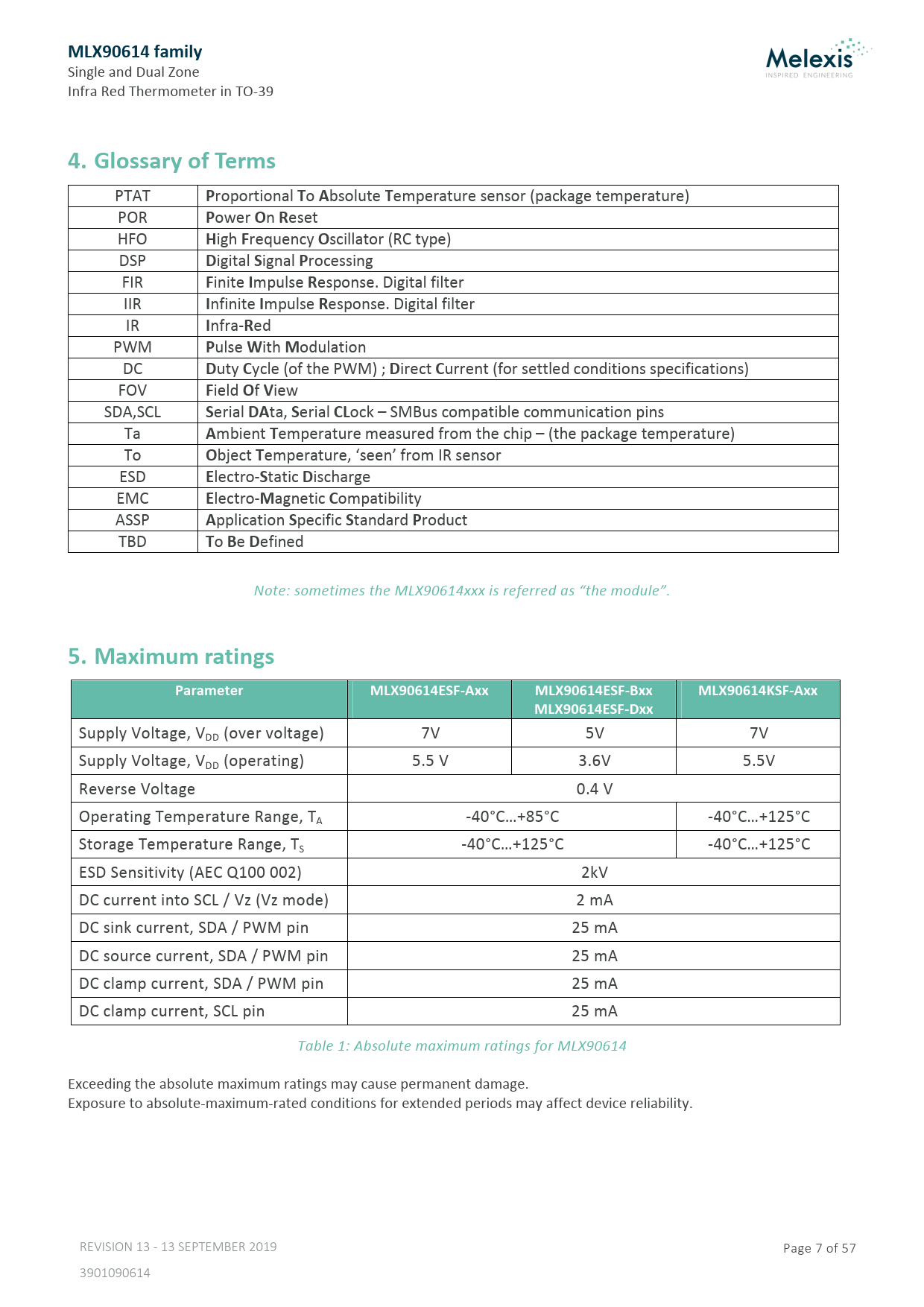

MLX90614 family
Single and Dual Zone Infra Red Thermometer in TO-39
4. Glossary of Terms
PTAT
P
roportional
T
o
A
bsolute
T
emperature sensor (package temperature) POR
P
ower
O
n
R
eset HFO
H
igh
F
requency
O
scillator (RC type) DSP
D
igital
S
ignal
P
rocessing FIR
F
inite
I
mpulse
R
esponse. Digital filter IIR
I
nfinite
I
mpulse
R
esponse. Digital filter IR
I
nfra-
R
ed PWM
P
ulse
W
ith
M
odulation DC
D
uty
C
ycle (of the PWM) ;
D
irect
C
urrent (for settled conditions specifications) FOV
F
ield
O
f
V
iew SDA,SCL
S
erial
DA
ta,
S
erial
CL
ock – SMBus compatible communication pins Ta
A
mbient
T
emperature measured from the chip – (the package temperature) To
O
bject
T
emperature, ‘seen’ from IR sensor ESD
E
lectro-
S
tatic
D
ischarge EMC
E
lectro-
M
agnetic
C
ompatibility ASSP
A
pplication
S
pecific
S
tandard
P
roduct TBD
T
o
B
e
D
efined Note: sometimes the MLX90614xxx is referred as “the module”.
5. Maximum ratings Parameter MLX90614ESF-Axx MLX90614ESF-Bxx MLX90614KSF-Axx MLX90614ESF-Dxx
Supply Voltage, VDD (over voltage) 7V 5V 7V Supply Voltage, VDD (operating) 5.5 V 3.6V 5.5V Reverse Voltage 0.4 V Operating Temperature Range, TA -40°C…+85°C -40°C…+125°C Storage Temperature Range, TS -40°C…+125°C -40°C…+125°C ESD Sensitivity (AEC Q100 002) 2kV DC current into SCL / Vz (Vz mode) 2 mA DC sink current, SDA / PWM pin 25 mA DC source current, SDA / PWM pin 25 mA DC clamp current, SDA / PWM pin 25 mA DC clamp current, SCL pin 25 mA Table 1: Absolute maximum ratings for MLX90614 Exceeding the absolute maximum ratings may cause permanent damage. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. REVISION 13 - 13 SEPTEMBER 2019 Page 7 of 57 3901090614
